D-Link DRS-200 [20/69] Using the network configuration
![D-Link DRS-200 [20/69] Using the network configuration](/views2/1045614/page20/bg14.png)
19
You can also use "Restart" button to reactivate Radius.
Using the Network Configuration
How to save data and activate DRS-200’ Radius

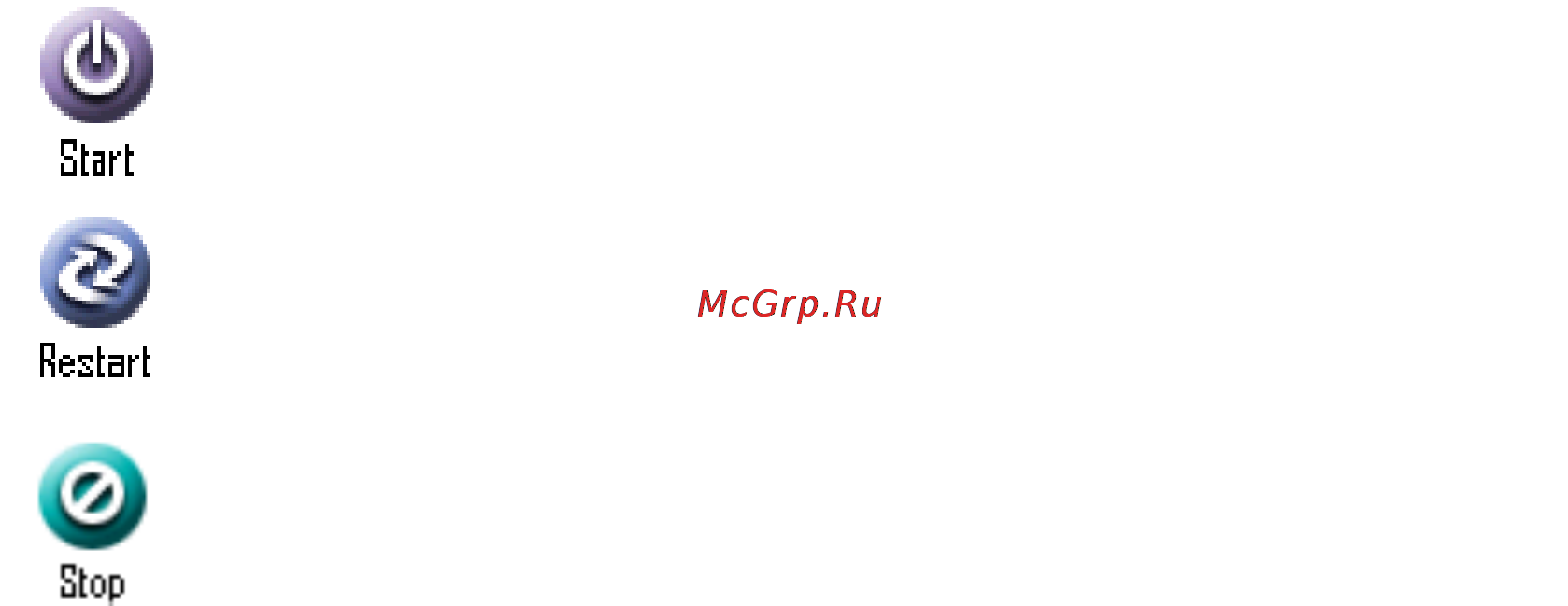

If you have changed and saved DRS-200's Radius Setup and want DRS-200’s Radius
be activating, you have to use following three button in the item "Radius Setup" of
"Basic Setup".
Two processes for activating DRS-200
We recommend the two following procedures for you to activate new configurations and
restart system function.
1. Click "Save" → Click "Restart"
2. Click "Save" → Click "Stop" → Click "Start"
Finally, click "Exit" to leave the DRS-200 operating interface.
If you've changed and saved the configuration of Radius, you have to stop
the operation of Radius first, then click "Start" button to reactivate Radius.
You can also use "Stop" button to shot down Radius and then the network
will be disconnected. You have to click "Start" button to reactivate Radius.
