1 Product Introduction DES-1210 Metro Ethernet Managed Switch User Manual
4
4
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
LED Indicators
The Switch supports LED indicators for Power, Console, Fan, and Link/Act or Link/Act/Speed for each port.
The following shows the LED indicators for the DES-1210 Metro Ethernet Managed Switch along with an
explanation of each indicator.

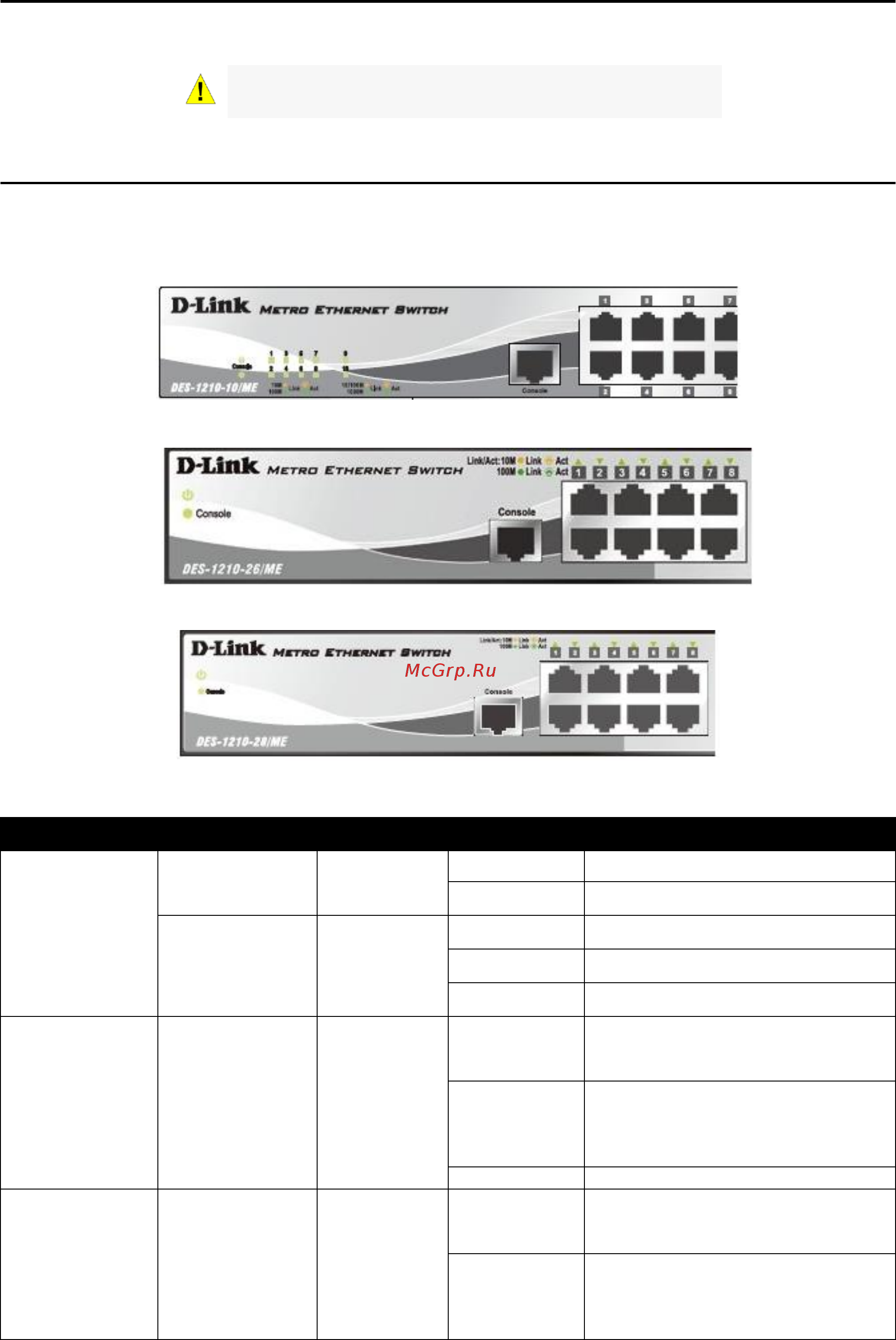

Figure 1.4 –LED Indicators on DES-1210-10/ME
Figure 1.5 –LED Indicators on DES-1210-26/ME
Figure 1.6 –LED Indicators on DES-1210-28/ME
Location
LED Indicative
Color
Status
Description
Per Device
Power
Green
Solid Light
Power on.
Light off
Power off.
Console
Green
Solid Light
Console on.
Blinking
POST is in progress.
Light off
Console off.
LED Per
10/100Mbps
Copper Port
Link/Act
Green
Solid Green
When there is a secure 10/100Mbps
Ethernet connection (or link) at any
of the ports.
Blinking Green
When there is reception or
transmission (i.e. Activity—Act) of
data occurring at a 10/100Mbps
Ethernet connected port.
Light off
No link.
LED Per
10/100/1000Mbps
Copper Port
Link/Act/Speed
Green/Amber
Solid Green
When there is a secure 1000Mbps
Ethernet connection (or link) at any
of the ports.
Blinking Green
When there is reception or
transmission (i.e. Activity—Act) of
data occurring at a 1000Mbps
Ethernet connected port.
