4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
89

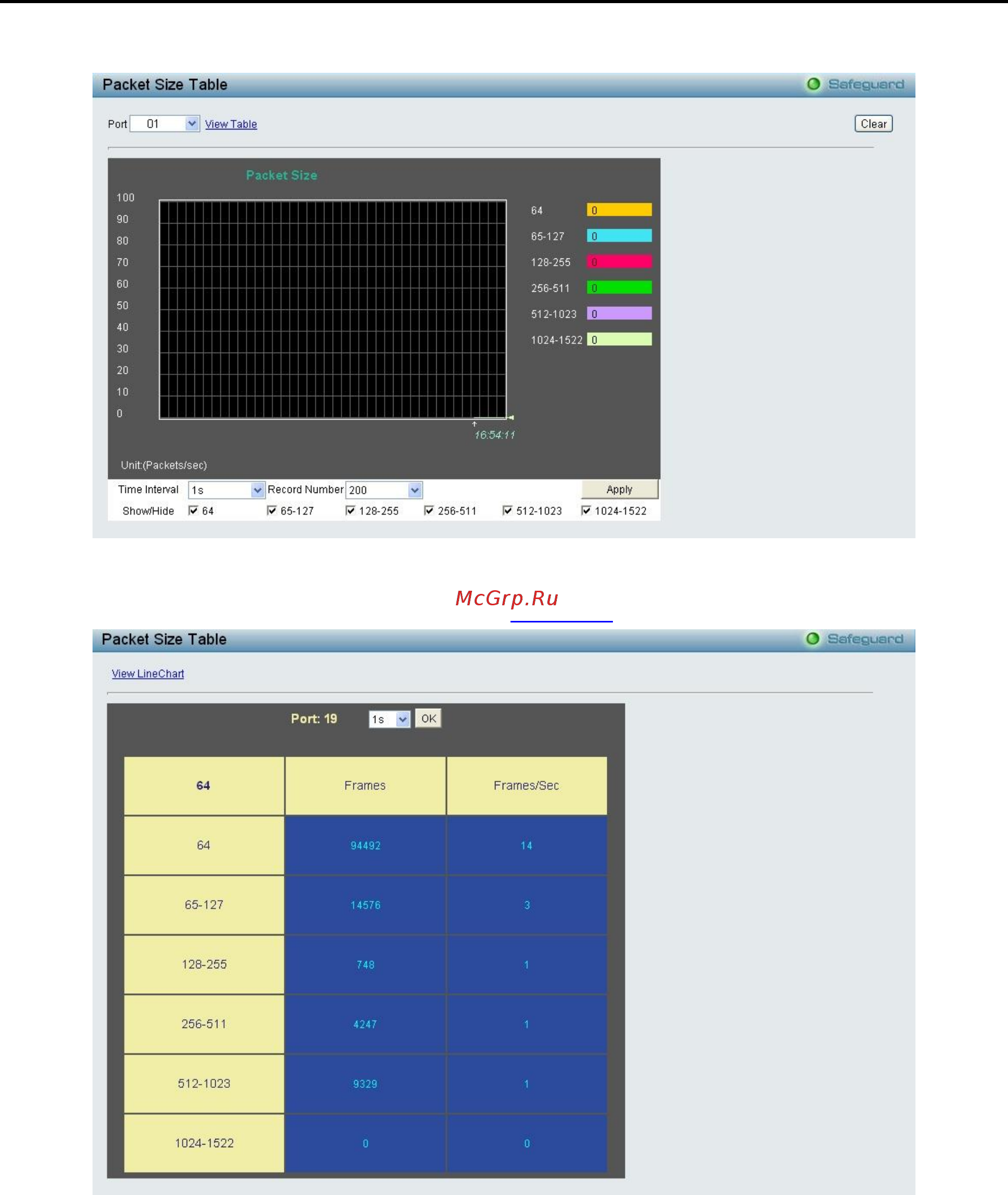

Figure 4.151 – Monitoring > Packet Size
To view the Packet Size Analysis Table, click the link View Table, which will show the following table:
Figure 4.152 – Monitoring > Packet Size Table
The following fields can be set or viewed:
Time Interval: Select the desired setting between 1s and 60s, where “s” stands for seconds. The default
value is one second.
Record Number: Select number of times the Switch will be polled between 20 and 200. The default value is
200.
64: The total number of packets (including bad packets) received that were 64 octets in length (excluding
framing bits but including FCS octets).
65-127: The total number of packets (including bad packets) received that were between 65 and 127 octets
in length inclusive (excluding framing bits but including FCS octets).
128-255: The total number of packets (including bad packets) received that were between 128 and 255
octets in length inclusive (excluding framing bits but including FCS octets).
