System > SNMP Settings > SNMP Trap Settings
The SNMP Trap Settings page provide user to Specify whether the device can send SNMP notifications.

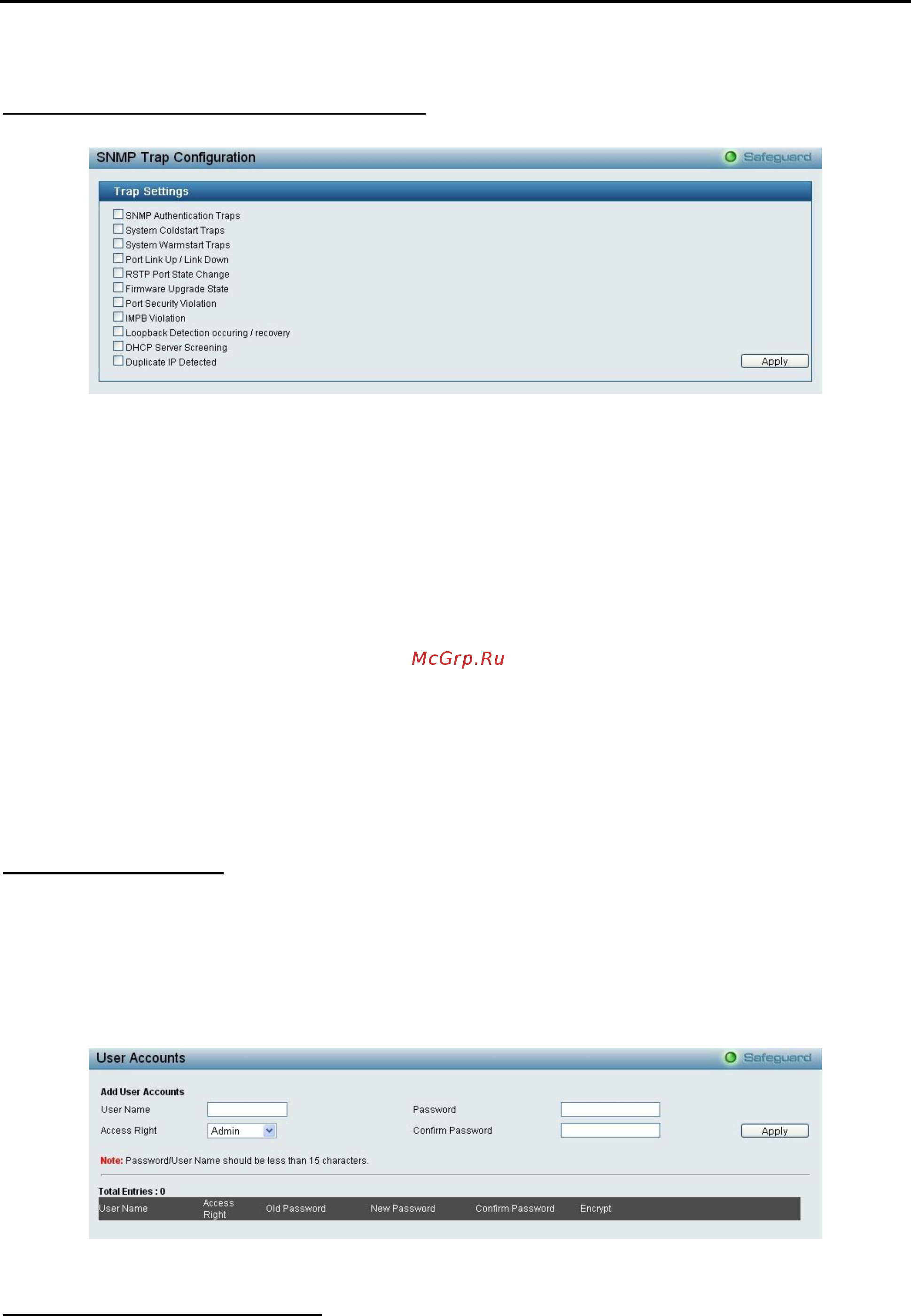

Figure 4.30 – System > SNMP Settings > SNMP Trap Settings
SNMP Authentication Traps: Specifies the device to send authentication failure notifications.
System Device Bootup: System boot-up information.
Fiber Port Link Up / Link Down: Fiber port connection information.
Twisted Pair Port Link Up / Link Down: Twisted pair port connection information.
RSTP Port State Change: Events of a RSTP port state changes.
Firmware Upgrade State: Information of firmware upgrade - success or failure.
Port Security Violation: Information of Port Security Violation.
IMPB Violation: IMPB Violation information.
Loopback Detection occurring / recovery: Specify the device to send SNMP Trap when Loopback
Detection occurring and recovery.
DHCP Server Screening: Information of DHCP Server Screening.
Duplicate IP Detected: Information of Duplicate IP Detected.
Click Apply for the changes to take effect.
System > User Accounts
The User Accounts page provides user to control user privileges. To add a new user by typing in a User
Name, Password and retype the same password in the Confirm Password and choose the level of
privilege(Admin, Operator or User) from the Access Right drop-down menu, then click the Apply button.
User can modify existing user account in the User Account Table. To change the password, type in the Old
Password, New Password and retype it in the Confirm New Password entry field and select the Encrypt,
then click the Edit button. To delete the user account, click on the Delete button.
Figure 4.31– System > User Accounts
System > MAC Address Aging Time
The MAC Address Aging Time page specifies the length of time a learned MAC Address will remain in the
forwarding table without being accessed (that is, how long a learned MAC address is allowed to remain idle).
To change this, type in a different value representing the MAC address age-out time in seconds.
