4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
96

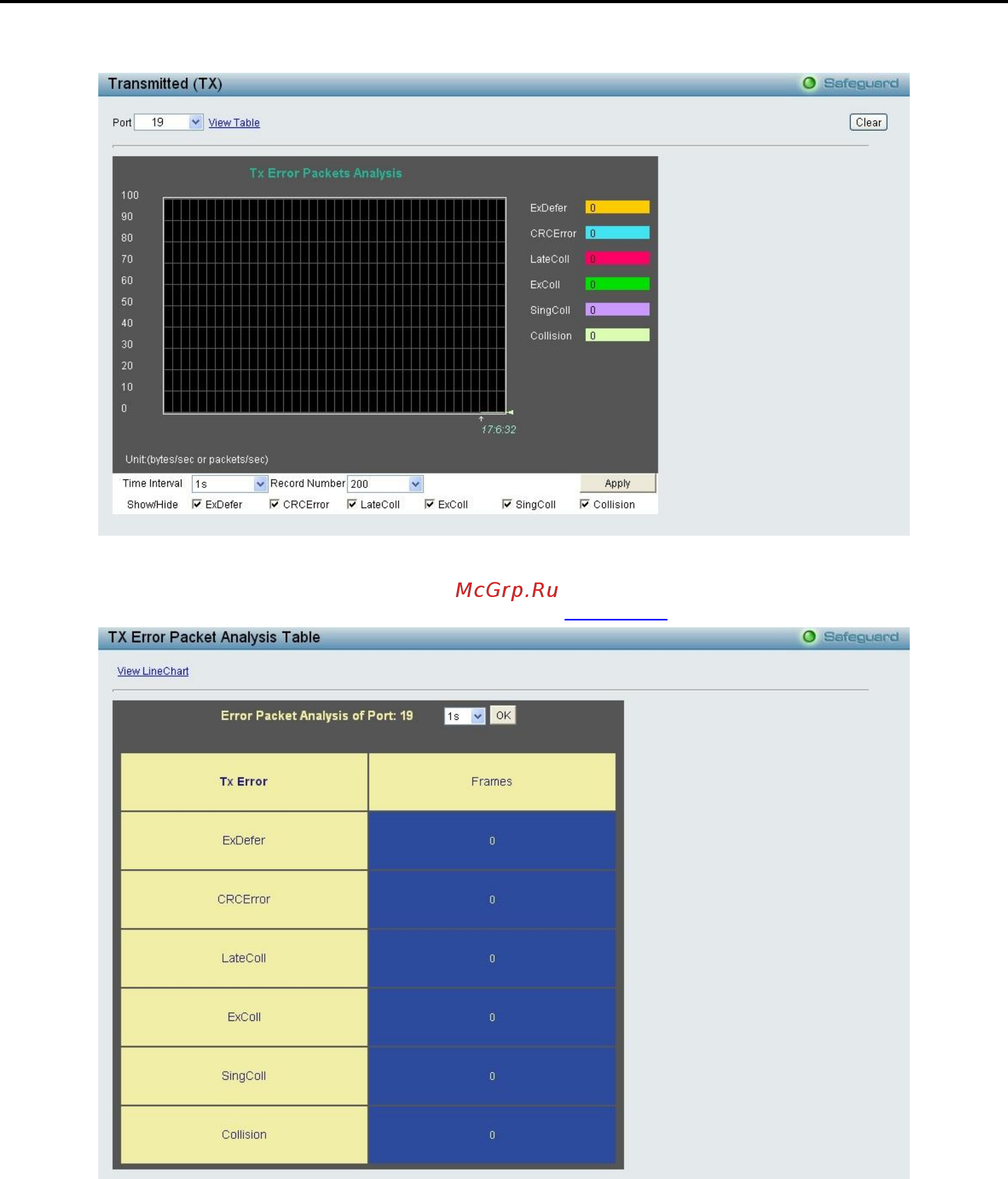

Figure 4.161 - Monitoring > Errors > Transmitted (TX) (line graph)
To view the Transmitted Error Packets Table, click the link View Table, which will show the following table:
Figure 4.162 - Monitoring > Errors > Transmitted (TX) (table)
The following fields can be set or viewed:
Time Interval: Select the desired setting between 1s and 60s, where “s” stands for seconds. The default
value is one second.
Record Number: Select number of times the Switch will be polled between 20 and 200. The default value is
200.
ExDefet: Counts the number of packets for which the first transmission attempt on a particular interface was
delayed because the medium was busy.
CRC Error: Counts otherwise valid packets that did not end on a byte (octet) boundary.
LateColl: Counts the number of times that a collision is detected later than 512 bit-times into the
transmission of a packet.
