DES-1210 Metro Ethernet Managed Switch User Manual
121
Console Cable:
When connecting the Switch a PC, a Console cable is necessary. The following diagrams and tables show
the standard Console-to-DJ-45 receptacle/connector and their pin assignments.

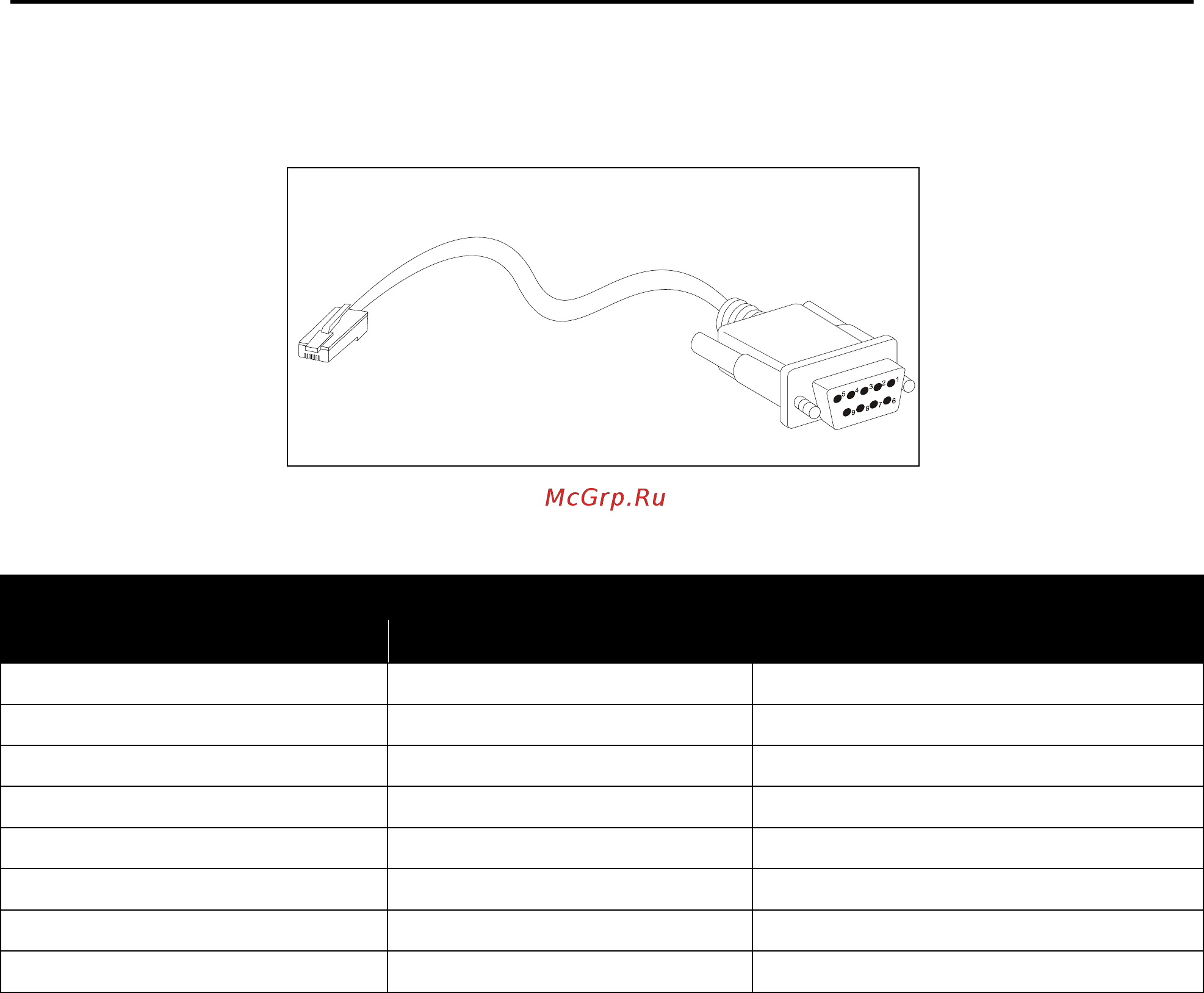

Figure B- 2. Console-to-RJ-45 Cable
Console-RJ-45 Pin Assignments
Pin
Console (DB9/RS232)
RJ-45
1
Not Used
Not Used
2
RXD
Not Used
3
TXD
TXD
4
Not Used
GND
5
GND (shared)
GND
6
Not Used
RXD
7
Not Used
Not Used
8
Not Used
Not Used
