4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
72
The Manual Binding Settings contains the following fields:
IP Address: Specifies the IP address to bind to the MAC address set below.
MAC Address: Specifies the MAC address to bind to the IP address set above.
Port: Specify the switch ports for which to configure this IP-MAC binding entry (IP Address + MAC Address).
Click Add to add a new entry.
Auto Scan: Specifies to scan connected devices in a range of IP address.
IP Address From/To: Specifies the range of IP Address to scan all devices in the network.
Click Scan and the search results will be listed in below table.
Binding: check the box to select desired binding devices.
Apply: click Apply to set IP-MAC-Port Binding entries.”
Select All: to check the boxes of Binding for all found devices.
Clear All: to cancel the box of Binding.
Security > Smart Binding > White List
When IP+ARP Inspection Mode were selected, the White List page displays finished IP-MAC-Port Binding
entries from page Smart Binding. Only IP packets or ARP packets carrying matched IP-MAC-Port
information can access to the switch. You can cancel a device’s authorization by deleting it from the table.

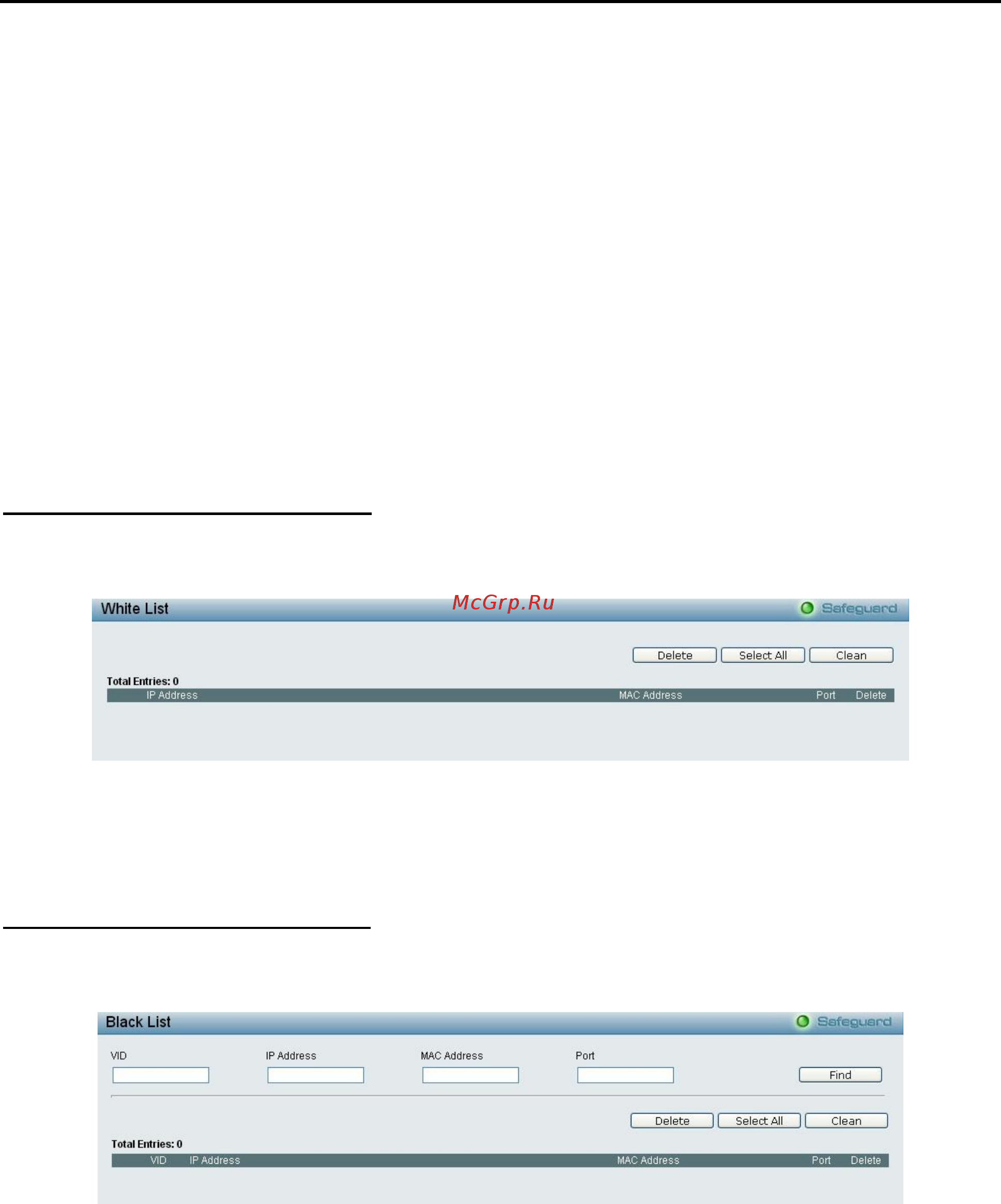

Figure 4.120 – Security > Smart Binding > White List
Select the check box of entry then click Delete to remove it.
Click Select All to select all entries of the table or click Clean to select none entries. Please keep at least
one management host in the White List.
Security > Smart Binding > Black List
The Black List page shows unauthorized accesses. When ARP Inspection is selected and a device sends
out an ARP packet containing unmatched IP-MAC-Port information, the device will be forbidden and listed
here.
Figure 4.121 – Security > Smart Binding > Black List
By giving conditions, desired devices information can be screened out below then click Find to search for a
list of the entry:
VID: Enter the VLAN ID number of the device.
IP Address: Enter the IP Address of the device.
MAC Address: Enter the MAC Address of the device.
Port: Enter the port number which the device connects.
Check a box of Delete column to release an entry from the forbidden list then click Apply to delete an entry
from the list.
Click Select All to select all entries, or click Clean to select none of the entries.
