4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual

TxPeriod (1 – 65535 sec): This sets the TxPeriod of time for the authenticator PAE state machine. This

value determines the period of an EAP Request/Identity packet transmitted to the client. Default is 30

seconds.

ReAuthentication: Determines whether regular reauthentication will take place on this port. The default

setting is Disabled.

Capability: Indicates the capability of the 802.1X. The possible field values are:

Authenticator – Specify the Authenticator settings to be applied on a per-port basis.

None – Disable 802.1X functions on the port.

SuppTimeout (1 – 65535 sec): This value determines timeout conditions in the exchanges between the

Authenticator and the client. Default is 30 seconds.

MaxReq (1 – 10): This parameter specifies the maximum number of times that the switch retransmits an

EAP request (md-5challnege) to the client before it times out the authentication session. Default is 2 times.

ReAuthPeriod (1 – 65535 sec): A constant that defines a nonzero number of seconds between periodic

reauthentication of the client. The default setting is 3600 seconds.

Port Control: This allows user to control the port authorization state.

Select ForceAuthorized to disable 802.1X and cause the port to transition to the authorized state

without any authentication exchange required. This means the port transmits and receives normal

traffic without 802.1X-based authentication of the client.

If ForceUnauthorized is selected, the port will remain in the unauthorized state, ignoring all

attempts by the client to authenticate. The Switch cannot provide authentication services to the client

through the interface.

If Auto is selected, it will enable 802.1X and cause the port to begin in the unauthorized state,

allowing only EAPOL frames to be sent and received through the port. The authentication process

begins when the link state of the port transitions from down to up, or when an EAPOL-start frame is

received. The Switch then requests the identity of the client and begins relaying authentication

messages between the client and the authentication server.

The default setting is Auto.

Direction: Sets the administrative-controlled direction on the port. The possible field values are:

Both – Specify the control is exerted over both incoming and outgoing traffic through the controlled

port selected in the first field.

In – Disables the support in the present firmware release.

Click Apply to implement configuration changes.

Security > 802.1X > 802.1X User

The 802.1X User page allows user to set different local users on the Switch. Enter a 802.1X User name,

Password and Confirm Password. Properly configured local users will be displayed in the table.

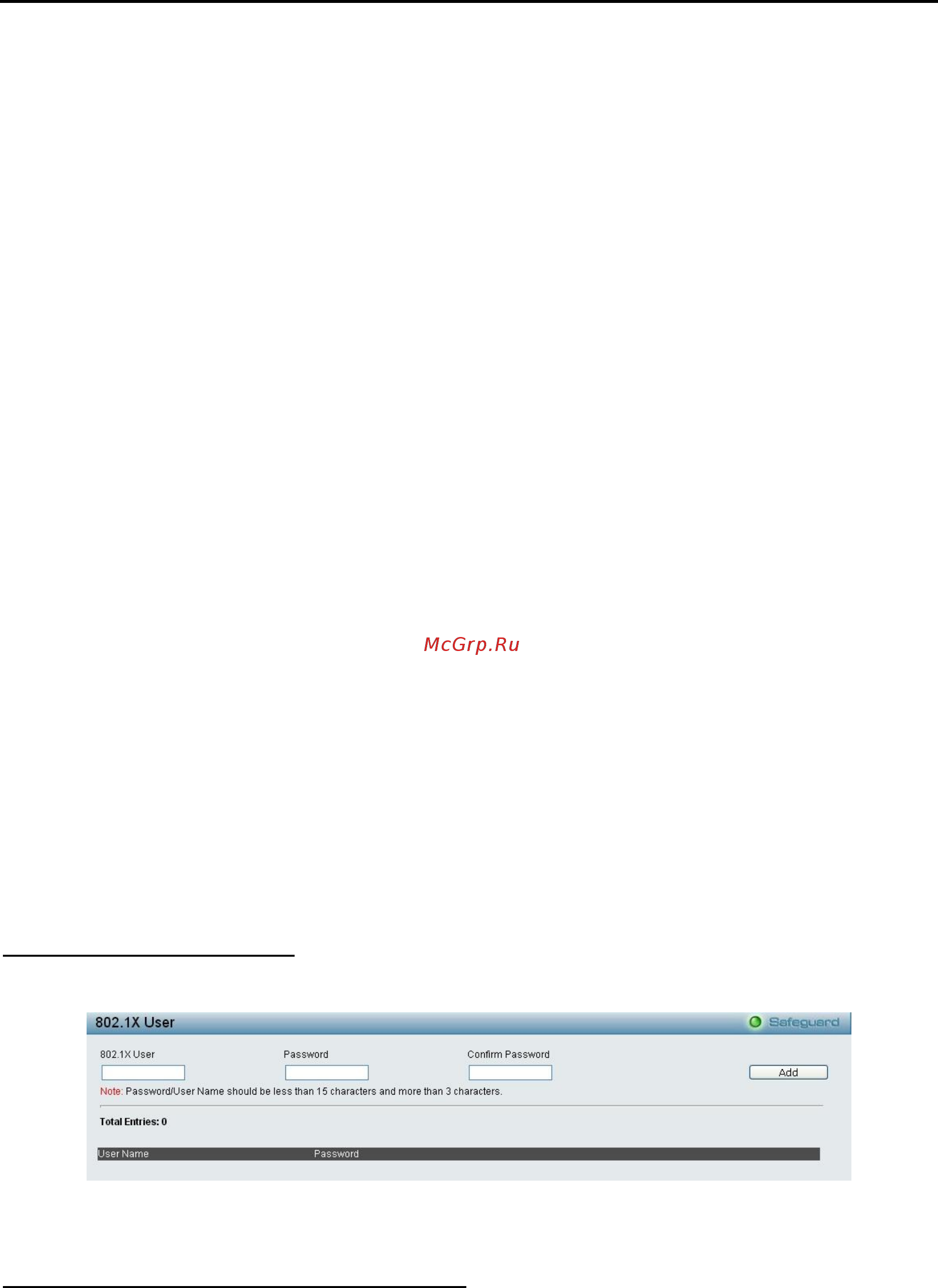

Figure 4.124 - Security > 802.1X > 802.1X User

Click Add to add a new 802.1X user.

Security > 802.1X > 802.1X Authentication RADIUS

The 802.1X Authentication RUAIUS of the Switch allows you to facilitate centralized user administration as

well as providing protection against a sniffing, active hacker.
