1 Product Introduction DES-1210 Metro Ethernet Managed Switch User Manual
5
5
Solid Amber
When there is a secure 10/100Mbps
Ethernet connection (or link) at any
of the ports.
Blinking Amber
When there is reception or
transmission (i.e. Activity—Act) of
data occurring at a 10/100Mbps
Ethernet connected port.
Light off
No link.
LED Per
100/1000Mbps
SFP Port
Link/Act/Speed
Green/Amber
Solid Green
When there is a secure 1000Mbps
Ethernet connection (or link) at any
of the ports.
Blinking Green
When there is reception or
transmission (i.e. Activity—Act) of
data occurring at a 1000Mbps
Ethernet connected port.
Solid Amber
When there is a secure 100Mbps
Ethernet connection (or link) at any
of the ports.
Blinking Amber
When there is reception or
transmission (i.e. Activity—Act) of
data occurring at a 100Mbps
Ethernet connected port.
Light off
No link.

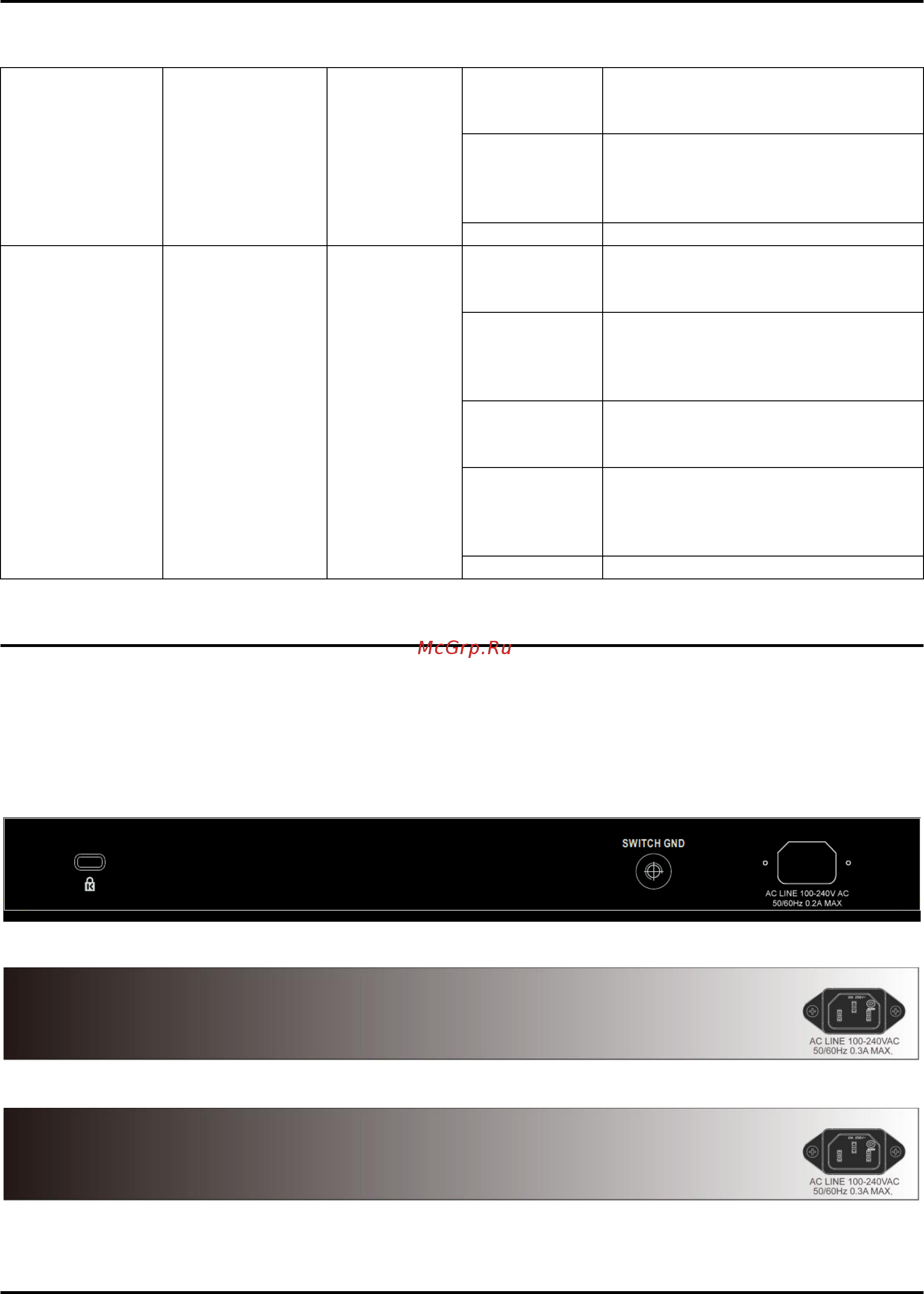

Rear Panel Description
The rear panel of the Switch contains an AC power connector. The AC power connector is a standard three-
pronged connector that supports the power cord. Plug-in the female connector of the provided power cord
into this socket, and the male side of the cord into a power outlet. The Switch automatically adjusts its power
setting to any supply voltage in the range from 100 to 240 VAC at 50 to 60 Hz. Connect the Kensington-
compatible security lock, at the rear of the switch, to a secure immovable device(only for DES-1210-10/ME).
Insert the lock into the notch and turn the key to secure the lock(only for DES-1210-10/ME).
Figure 1.7 –Rear panel view of the DES-1210-10/ME
Figure 1.8 –Rear panel view of the DES-1210-26/ME
Figure 1.9 –Rear panel view of the DES-1210-28/ME
Side Panel Description
The left- and right-hand panels of the Switch have heat vents to dissipate heat. Do not block these openings,
and leave at least 6 inches of space at the rear and sides of the Switch for proper ventilation. Be reminded
that without proper heat dissipation and air circulation, system components might overheat, which could lead
to system failure.
