4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
27
Figure 4.32 – System > MAC Address Aging Time
MAC Address Aging Time (10-600): Specifies the aging time of MAC address on the Switch. The range is
from 10 to 600, and the default is 300 seconds.
System > ARP Aging Time Settings
The ARP Aging Time Settings page provides user to globally set the maximum amount of time, in minutes,
and Address Resolution Protocol (ARP) entry can remain in the Switch’s ARP table, without being accessed,
before it is dropped from the table.

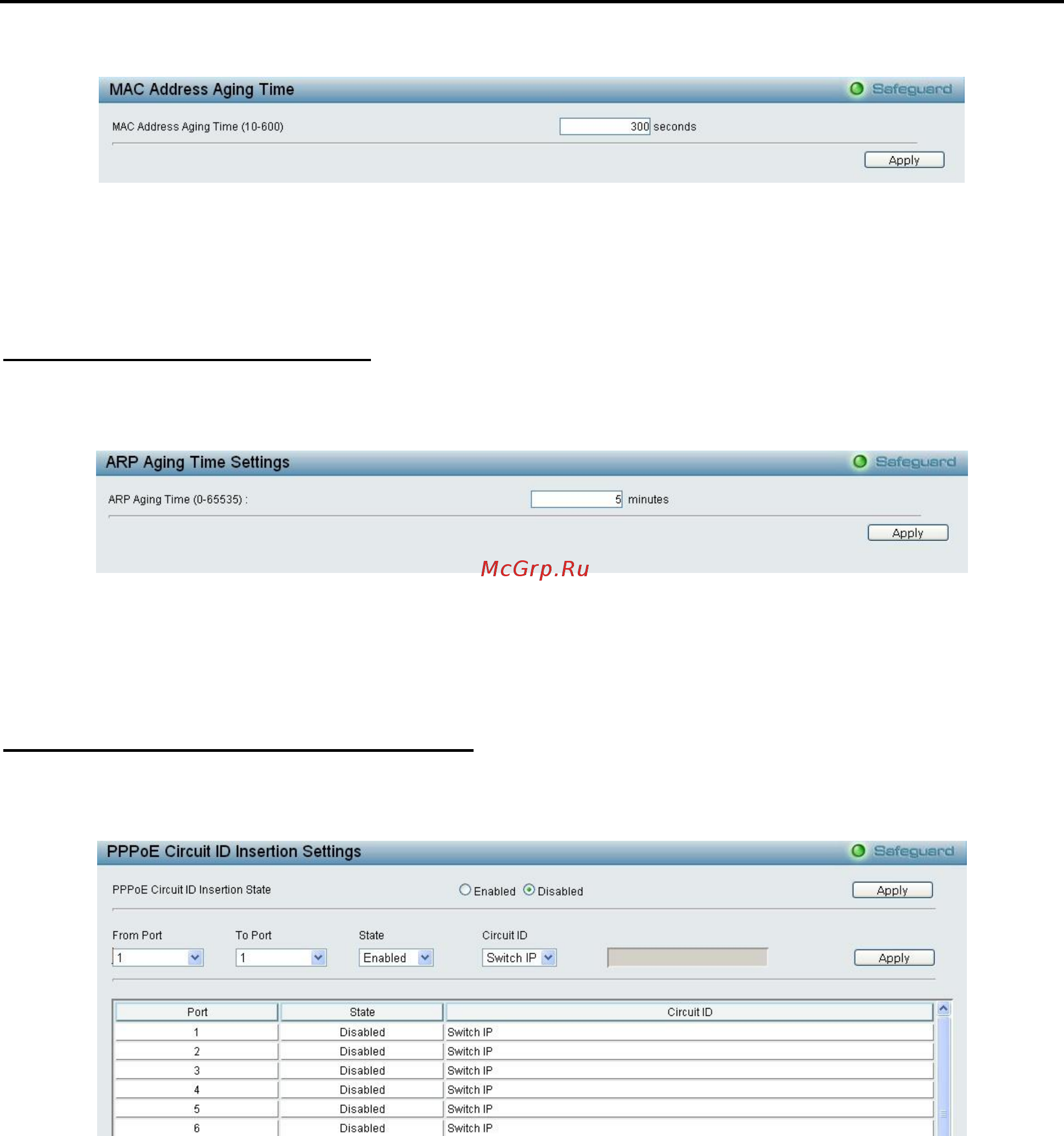

Figure 4.33 – System > ARP Aging Time Settings
ARP Aging Time (0-65535): Specifies the ARP aging time on the Switch. The range is from 0 to 65535 with
a default setting of 5 minutes.
System > PPPoE Circuit ID Insertion Settings
The PPPoE Circuit ID Insertion Settings page specifies the configuration of settings. When enabled, the
system will insert the circuit tag to the received PPPoE discover request and the request packet if the tag is
absent. It will remove the circuit ID tag from the received PPPoE offer and session confirmation packet.
Figure 4.34 – System > PPPoE Circuit ID Insertion Settings
PPPoE Circuit Insertion State: Enable or disable the PPPoE circuit insertion state, and click Apply to take
effect.
From Port/ To Port: Specifies the ports to be configured.
State: Enable or disable the state of specified ports.
Circuit ID: Specifies the Circuit ID is Switch IP, Switch MAC or UDF String.
Switch IP – The Switch’s IP address will be used to encode the circuit ID option. This is the default.
Switch MAC – The MAC address of the Switch will be used to encode the circuit ID option.
UDF String – A user specified string to be used to encode the circuit ID option. Enter a string with
the maximum length of 32.
Click the Apply button to take effects.
