4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
87
Monitoring > CPU Utilization
The CPU Utilization displays the percentage of the CPU being used, expressed as an integer percentage
and calculated as a simple average by time interval. Click Apply to implement the configured settings. The
window will automatically refresh with new updated statistics.

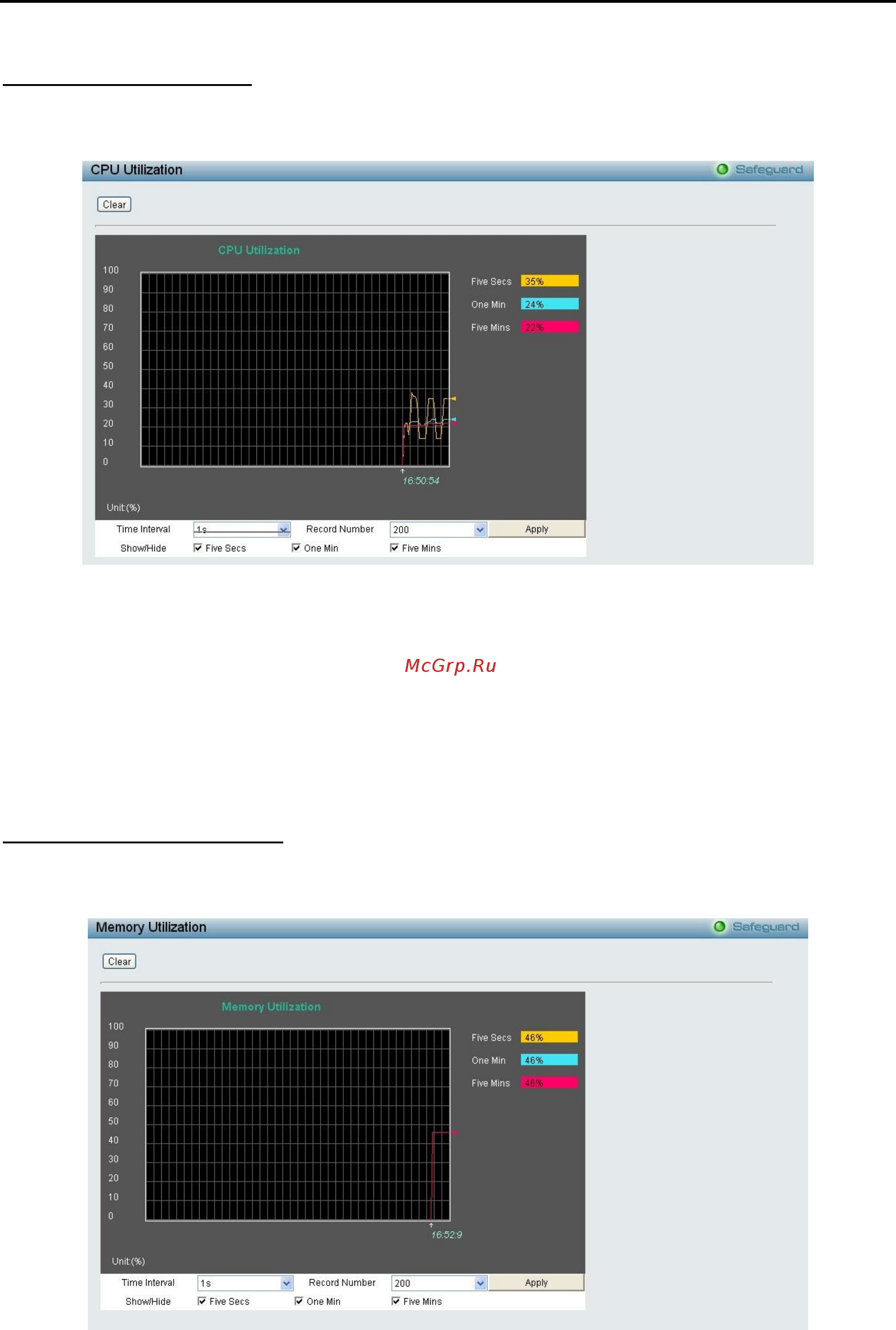

Figure 4.148 – Monitoring > CPU Utilization
The information is described as follows:
Time Interval: Select the desired setting between 1s and 60s, where "s" stands for seconds. The default
value is one second.
Record Number: Select number of times the Switch will be polled between 20 and 200. The default value is
200.
Show/Hide: Check whether to display Five Secs, One Min, and/or Five Mins.
Clear: Clicking this button clears all statistics counters on this window.
Monitoring > Memory Utilization
The Memory Utilization displays the percentage of the memory being used, expressed as an integer
percentage and calculated as a simple average by time interval. Click Apply to implement the configured
settings. The window will automatically refresh with new updated statistics.
Figure 4.149 – Monitoring > Memory Utilization
