4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
111
Management Address: Specifies IPv4 or IPv6 address then enter the address. Click Search and the table
will update and display the values required.
Subtype: Displays the managed address subtype. For example, MAC or IPv4.
Management Address: Displays the IP address.
IF Type: Displays the IF Type.
OID: Displays the SNMP OID.
Advertising Ports: Displays the advertising ports.
LLDP > LLDP Local Port Table
The LLDP Local Port Table page displays LLDP local port information.

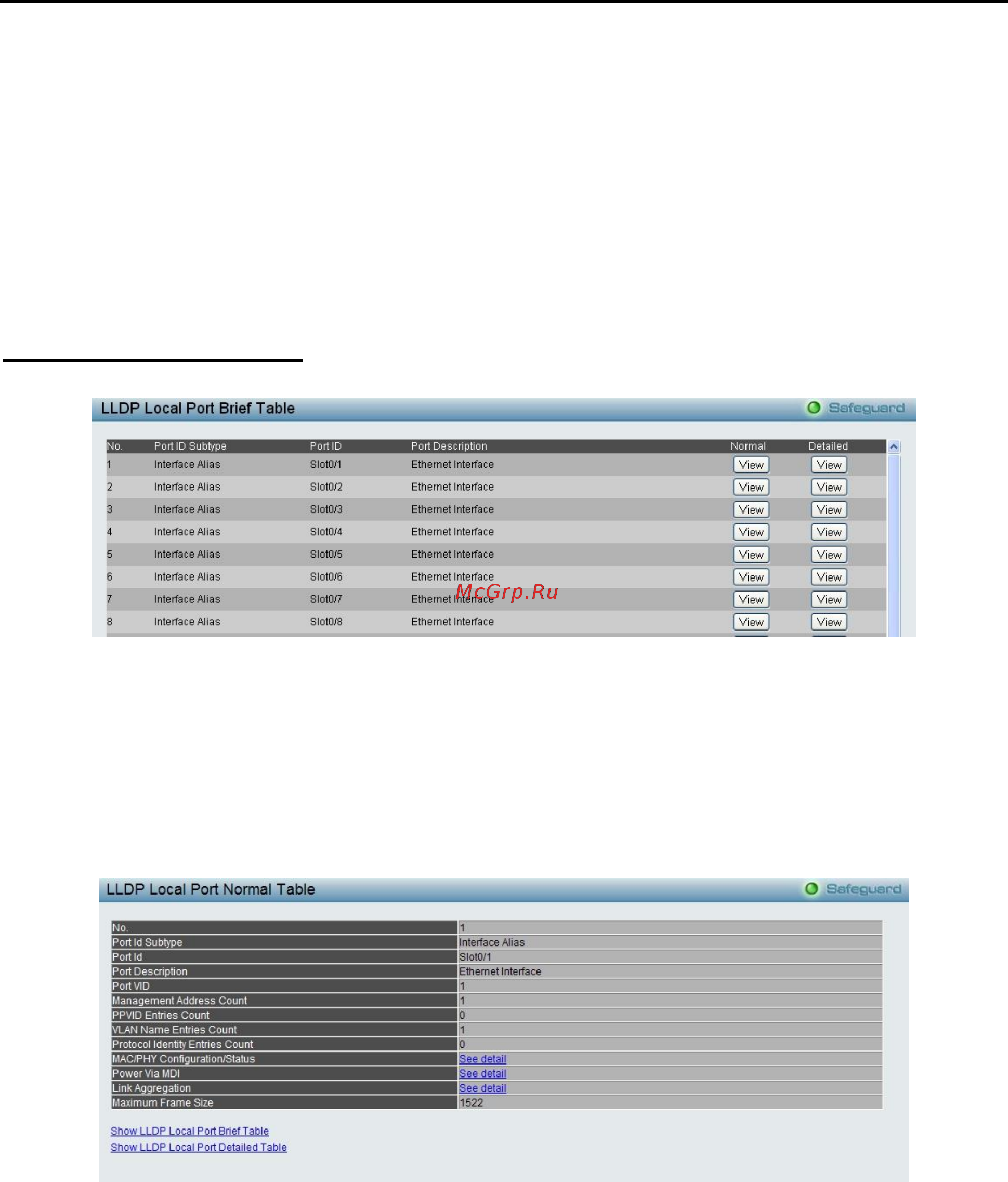

Figure 4.185 –LLDP > LLDP Local Port Table
Port : Displays the port number.
Port ID Subtype: Displays the port ID subtype.
Port ID: Displays the port ID (Unit number/Port number).
Port Description: Displays the port description.
Click View of Normal column to display more information.
Figure 4.186 – LLDP > LLDP Local Port Normal Table
Click View of Detailed column to display detail information.
