4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual

New Local Enable Password: Enter the new password that you wish to set on the Switch to authenticate

users attempting to access Administrator Level privileges on the Switch. The user may set a password of up

to 15 characters.

Confirm Local Enable Password: Confirm the new password entered above. Entering a different password

here from the one set in the New Local Enabled field will result in a fail message.

Security > Traffic Segmentation

This feature provides administrators to limit traffic flow from a single port to a group of ports on a single

Switch. This method of segmenting the flow of traffic is similar to using VLANs to limit traffic, but is more

restrictive.

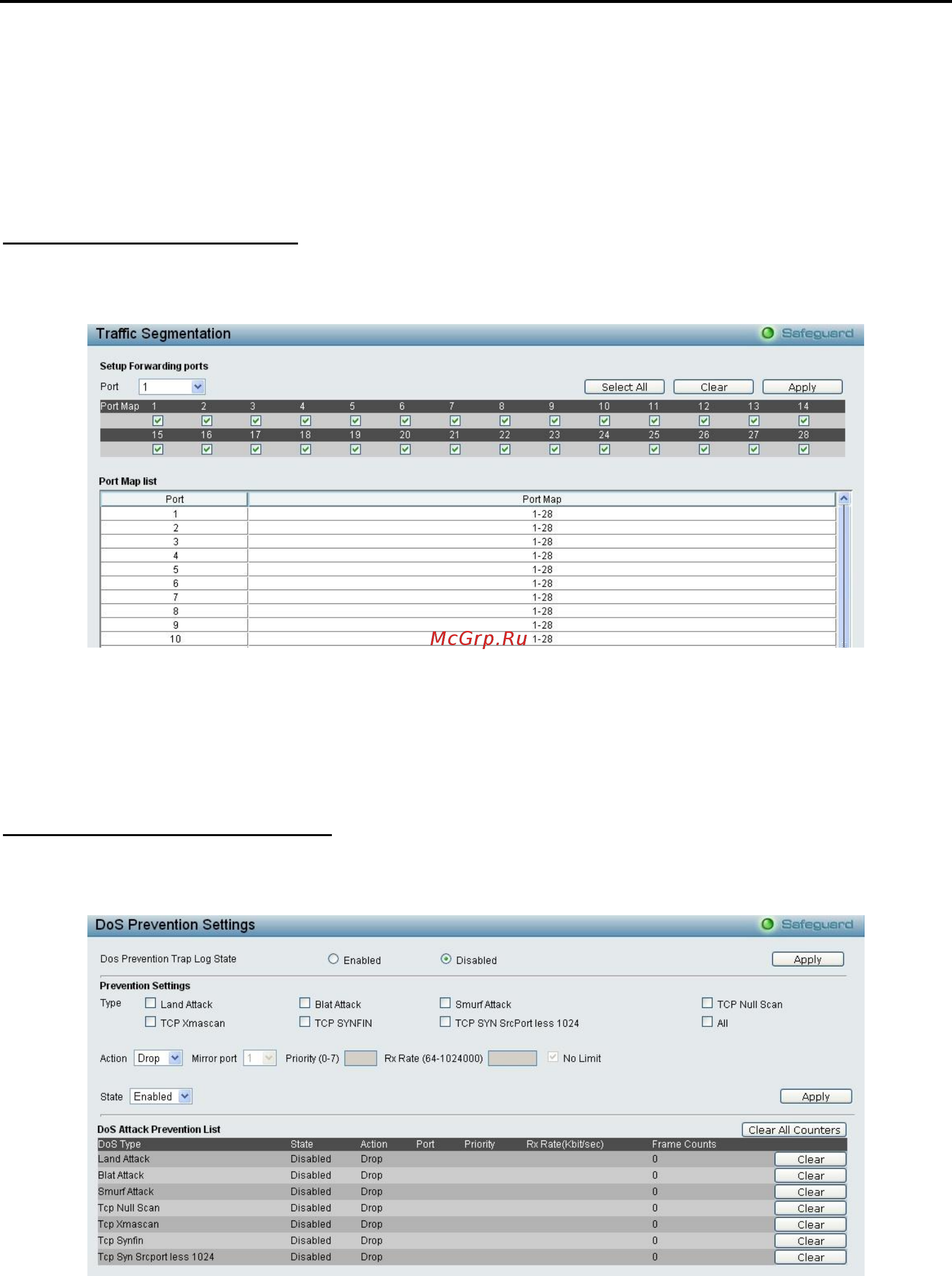

Figure 4.138 – Security > Traffic Segmentation

To configure traffic segmentation specify a port or All ports from the switch, using the Port pull-down menu

and select Port Map then click Apply to enter the settings into the Switch’s Traffic Segmentation table.

Click Select All to select all port maps or click Clear button to uncheck port maps.

Security > DoS Prevention Settings

The DoS is a malicious attack against a network. This attack is designed to stop a network from functioning

by flooding it with useless traffic. Symptoms of a malicious attack include the inability to access any web site

or a particular web site being unavailable and network performance slowing down.

Figure 4.139 – Security > DoS Prevention Settings

Prevention Settings:

Type: Select the attack types to be prevented. The types are Land Attack, Blat Attack, Smurf Attack, TCP

Null Scan, TCP Xmascan, TCP SYNFIN, TCP SYN SrcPortless 1024 or All.

Action: Set action to Drop or Mirror the selected types of attacks. When Mirror was selected, also specifies

the mirror port.
