D-Link DES-1210-10/ME [70/129] Qos vlan id priority settings
![D-Link DES-1210-10/ME [70/129] Qos vlan id priority settings](/views2/1459130/page70/bg46.png)
4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
64

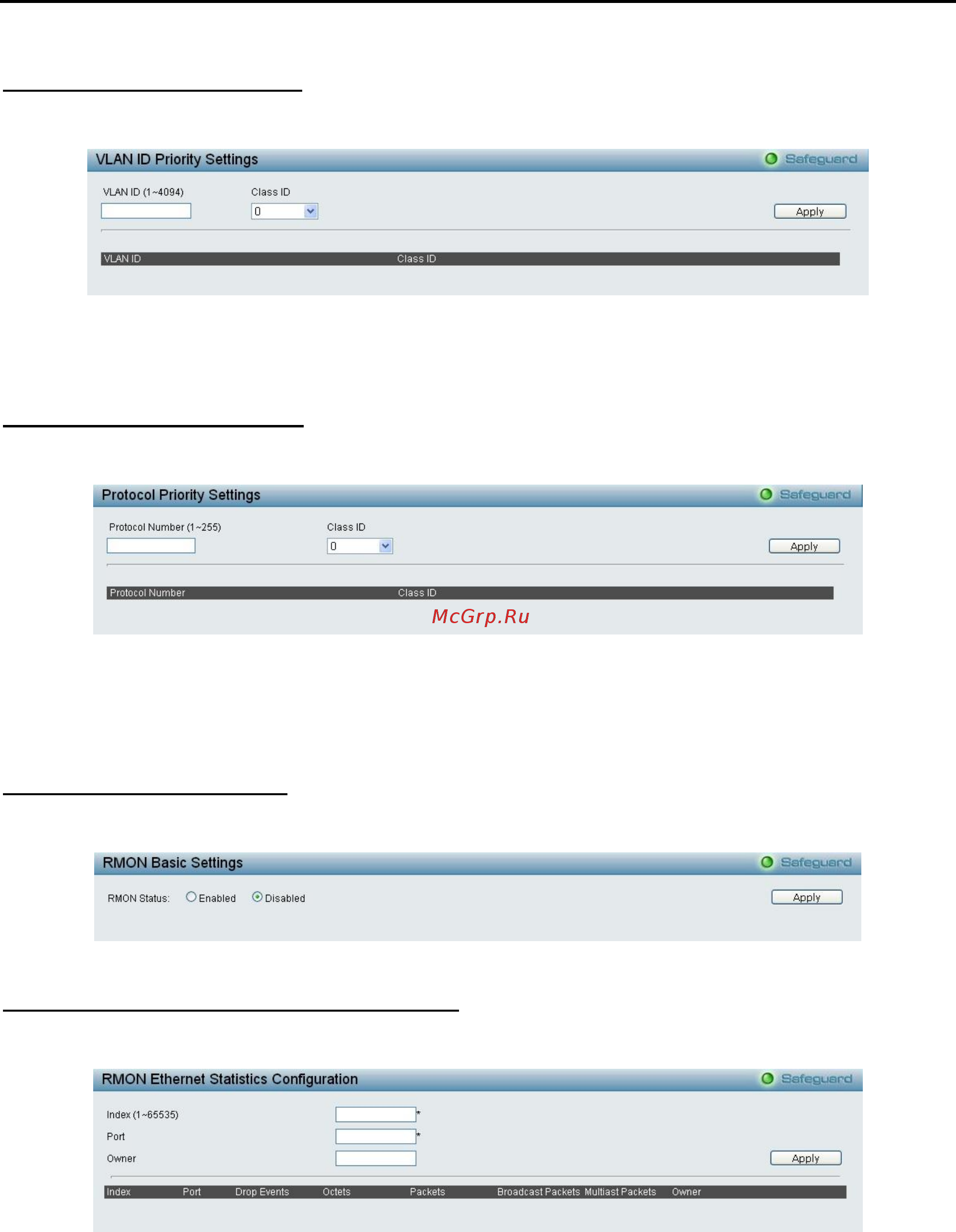

QoS > VLAN ID Priority Settings
When using the VLAN ID Priority mechanism, the packet is classified based on the VLAN ID field priority in
the VLAN ID priority table entries.
Figure 4.105 - QoS > VLAN ID Priority Settings
Enter VLAN ID and select a Class ID where packets containing this VLAN ID will be sent. Click Apply to
implement changes made.
QoS > Protocol Priority Settings
When using the Protocol Priority mechanism, the packet is classified based on the Protocol Number field
priority in the Protocol priority table entries.
Figure 4.106 - QoS > Protocol Priority Settings
Enter Protocol Number and select a Class ID where packets containing this Protocol will be sent. Click
Apply to implement changes made.
RMON > RMON Basic Settings
Users can enable and disable remote monitoring (RMON) status for the SNMP function on the Switch. In
addition, RMON Rising and Falling Alarm Traps can be enabled and disabled. Click Apply to make effects.
Figure 4.107 - RMON > RMON Basic Settings
RMON > RMON Ethernet Statistics Configuration
The RMON Statistics Configuration page displays the information of RMON Ethernet Statistics and allows
the user to configure the settings.
Figure 4.108 - RMON > RMON Ethernet Statistics Configuration
The RMON Ethernet Statistics Configuration contains the following fields:
Index (1 - 65535): Indicates the RMON Ethernet Statistics entry number.
Port: Specifies the port from which the RMON information was taken.
Owner: Displays the RMON station or user that requested the RMON information.
Click Apply to make the configurations take effects.
