4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
37
Configuration > 802.1v Protocol VLAN > 802.1v Protocol VLAN Settings
The 802.1v Protocol VLAN Settings page allows user to configure the Protocol VLAN settings.

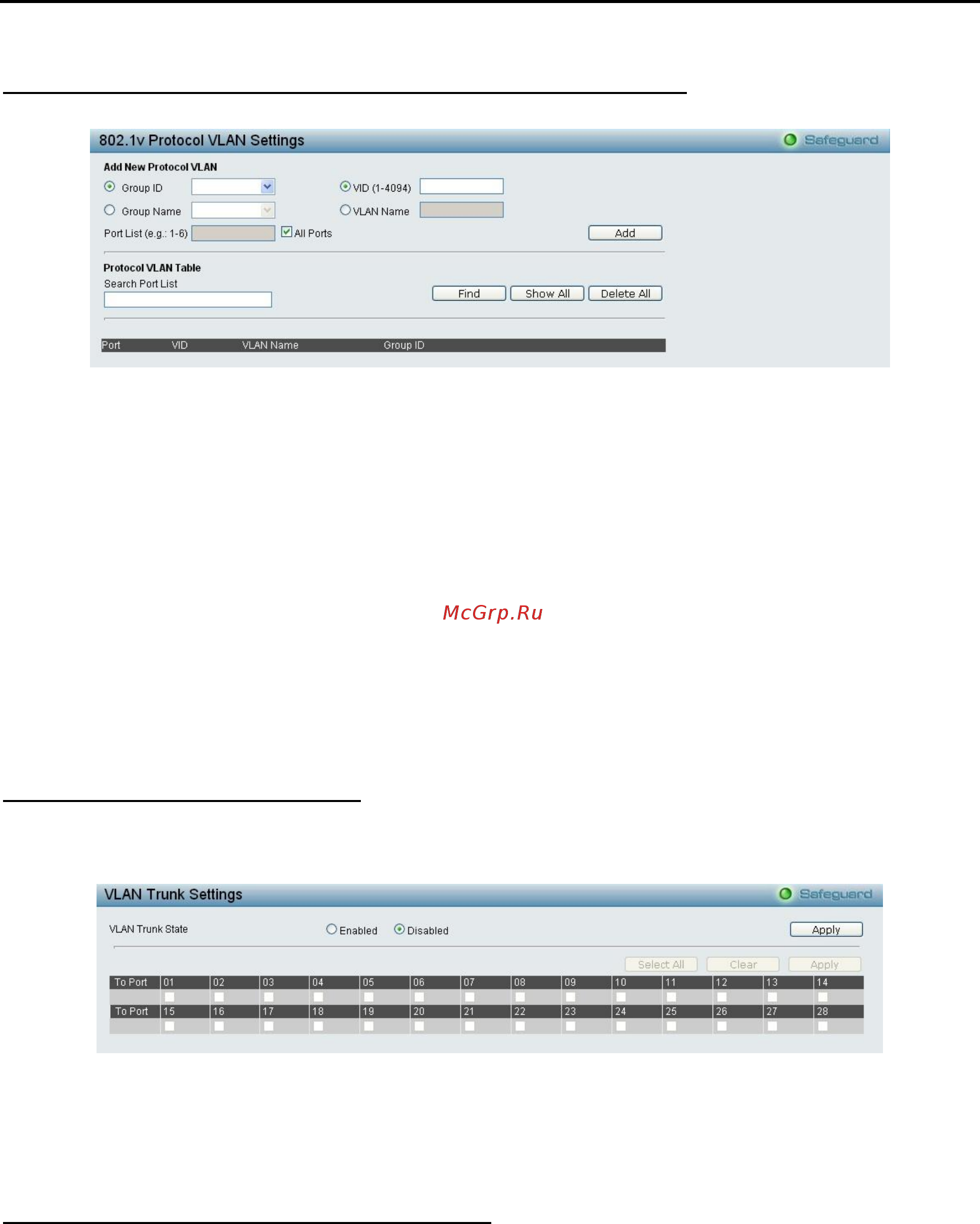

Figure 4.56 - Configuration > 802.1v Protocol VLAN > 802.1v Protocol VLAN Settings
Group ID: Select a previously configured Group ID from the drop-down menu.
VID (1-4094): Specifies the VID to be created.
Group Name: Select a previously configured Group Name from the drop-down menu.
VLAN Name: Specifies the VLAN name to be created.
Port List: Enter the specified ports to be configured or tick the All Ports check box.
Click the Add button to add a new entry based on the information entered.
Search Port List: Specifies the port to be searched.
Click the Find button to view the information with specified ports.
To display all previously configured port lists on the button half of the screen click the Show All button.
To clear all previously configured lists click the Delete All button.
Configuration > VLAN Trunk Settings
The VLAN Trunk Settings is used to combine a number of VLAN ports together to create VLAN trunks. To
create Vlan Trunk Port settings on the Switch, enter the ports to be configured, change the state to Enabled
and click Apply, the new settings will appear in the VLAN Trunk Port Settings Table below.
Figure 4.57 - Configuration > VLAN Trunk Settings
Click Select All to check all ports or click Clear to remove ports then click Apply.
Click Apply to implement changes made.
Configuration > Link Aggregation > Port Trunkings
The Port Trunkings function enables the combining of two or more ports together to increase bandwidth. Up
to eight Trunk groups may be created, and each group consists up to eight ports. Select Enabled and click
Apply to active the Link Aggregation State.
