4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
103
NOTE: Once the ACL rules conflict, rules with
smaller rule ID will take higher priority.
NOTE: Be careful when configuring ACL rules, an
inappropriate may cause management access
failed.
ACL > Access Profile List
The Access Profile List provides information for configuring ACL Profiles manually. ACL profiles are attached
to interfaces, and define how packets are forwarded if they match the ACL criteria.

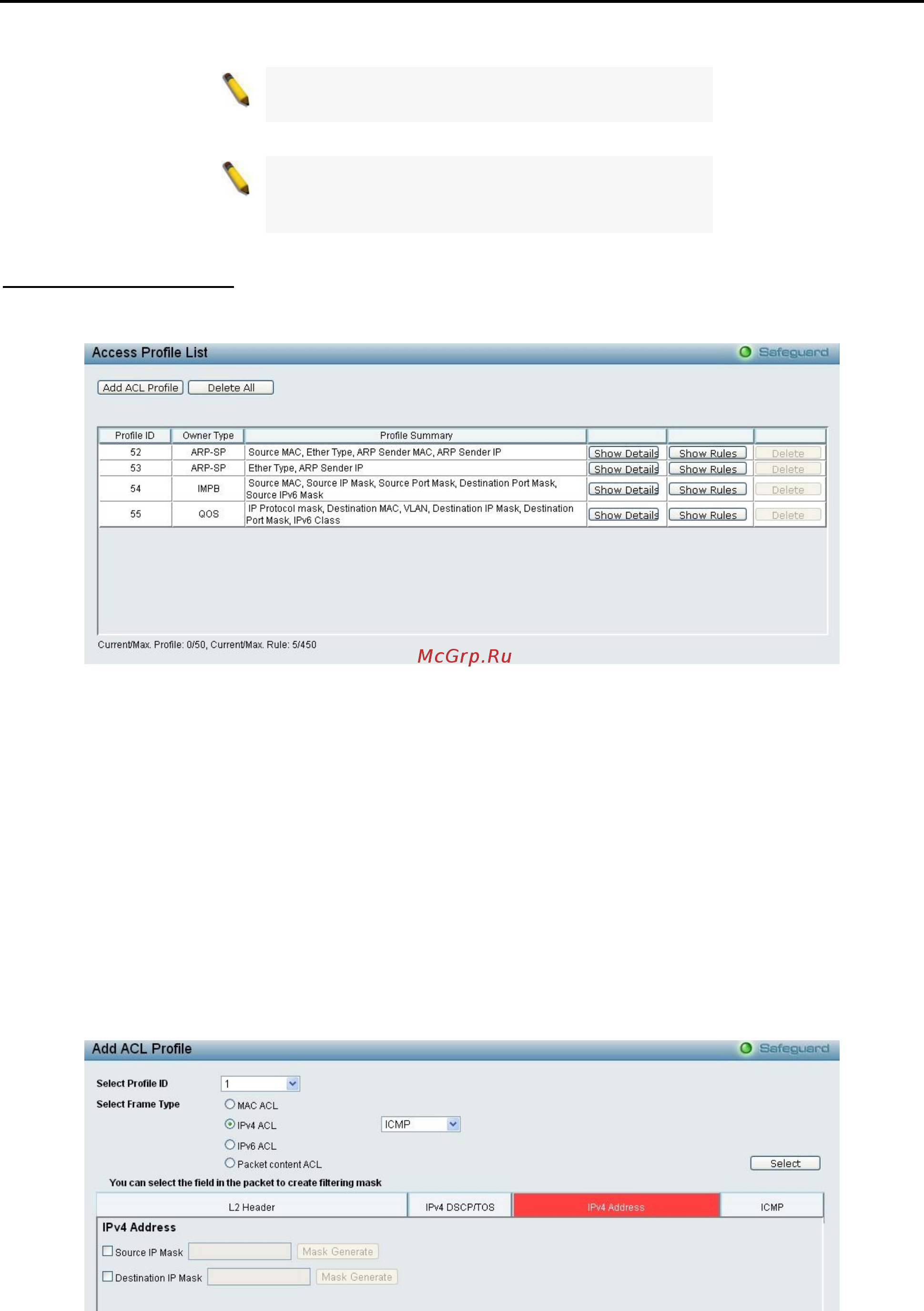

Figure 4.171 - ACL > Access Profile List
The contents of Access Profile List table include:
Profile ID: Indicates the profile Identification number. The possible configured profile IDs are 1~50, and
profile ID 51~55 are reserved for the pre-defined features.
Owner Type: The owner type of ACL profile; it can be normal ACL, Voice VLAN, Surveillance VLAN or ARP
Spoofing Protection.
Profile Summary: Displays the profile summary.
Show Details: To display an ACL’s profile details. The ACL profile details are displayed below the ACL table.
Show Rules: To show the access rule in this profile.
To add a new rule, please see Access Rule List in the next section.
Delete: To delete an access profile.
To manually add a profile, click Add ACL Profile:
Figure 4.172 - Add ACL Profile
The steps of adding an access profile is like below:
