1 Product Introduction DES-1210 Metro Ethernet Managed Switch User Manual
3
3

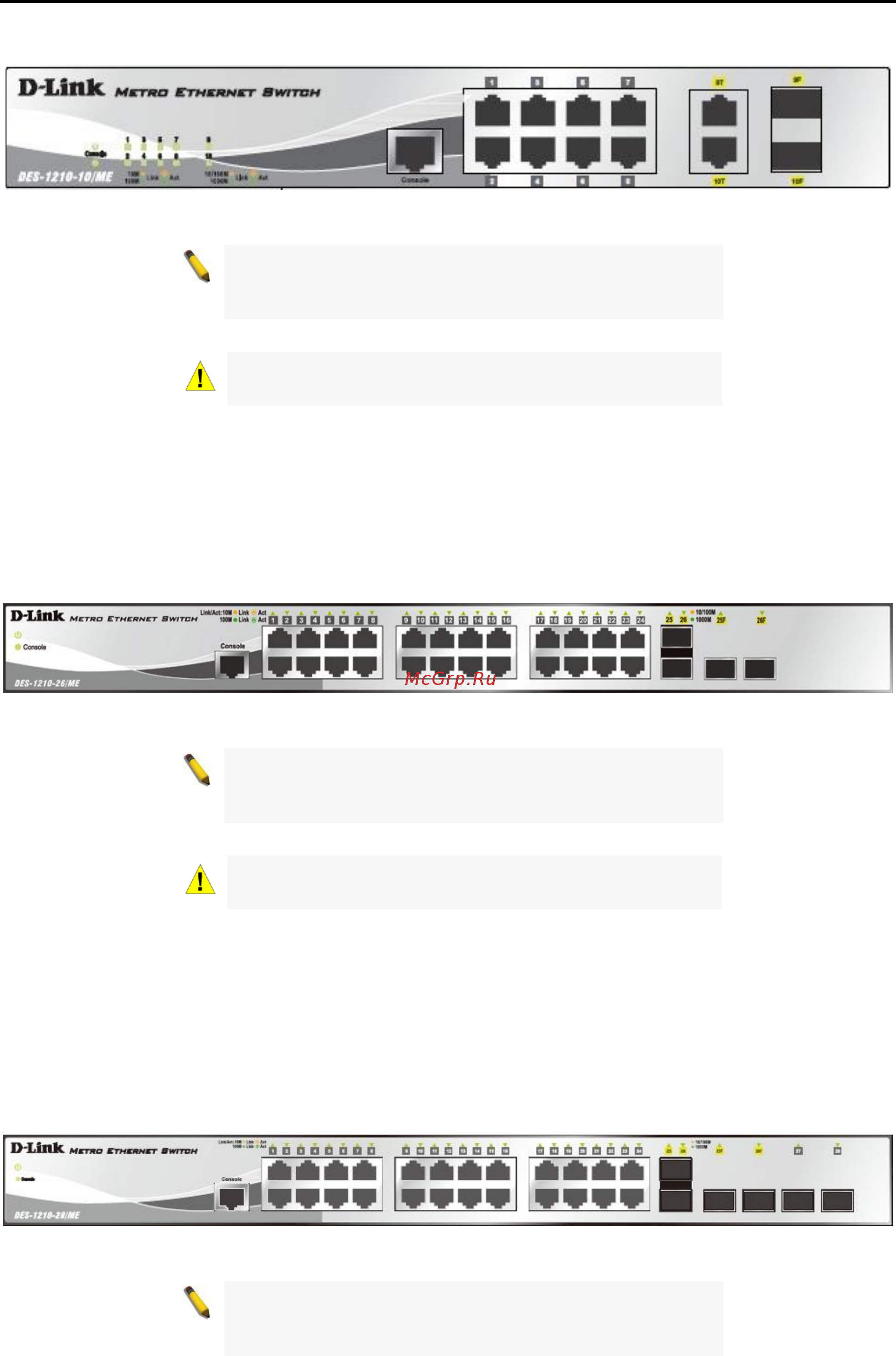

Figure 1.1 – DES-1210-10/ME Front Panel
NOTE: The MiniGBIC ports are shared with normal RJ-45
ports 9 and 10. When MiniGBIC port is used, the RJ-45
port cannot be used.
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
The front panel of the DES-1210-26/ME switch consists out of the following:
24 10/100Mbps Copper Ports
2 Combo 10/100/1000Mbps Copper / 100/1000Mbps SFP port
One RJ-45 Console Port
LEDs for Power, Console, Link/Act for port 1 to 24, and Link/Act/Speed for port 25 and 26
Figure 1.2 – DES-1210-26/ME Front Panel
NOTE: The MiniGBIC ports are shared with normal RJ-45
ports 25 and 26. When MiniGBIC port is used, the RJ-45
port cannot be used.
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
The front panel of the DES-1210-28/ME switch consists out of the following:
24 10/100Mbps Copper Ports
2 Combo 10/100/1000Mbps Copper / 100/1000Mbps SFP port
2 100/1000Mbps SFP Ports
One RJ-45 Console Port
LEDs for Power, Console, Link/Act for port 1 to 24, and Link/Act/Speed for port 25 and 26
Figure 1.3 – DES-1210-28/ME Front Panel
NOTE: The MiniGBIC ports are shared with normal RJ-45
ports 25 and 26. When MiniGBIC port is used, the RJ-45
port cannot be used.
