4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
57

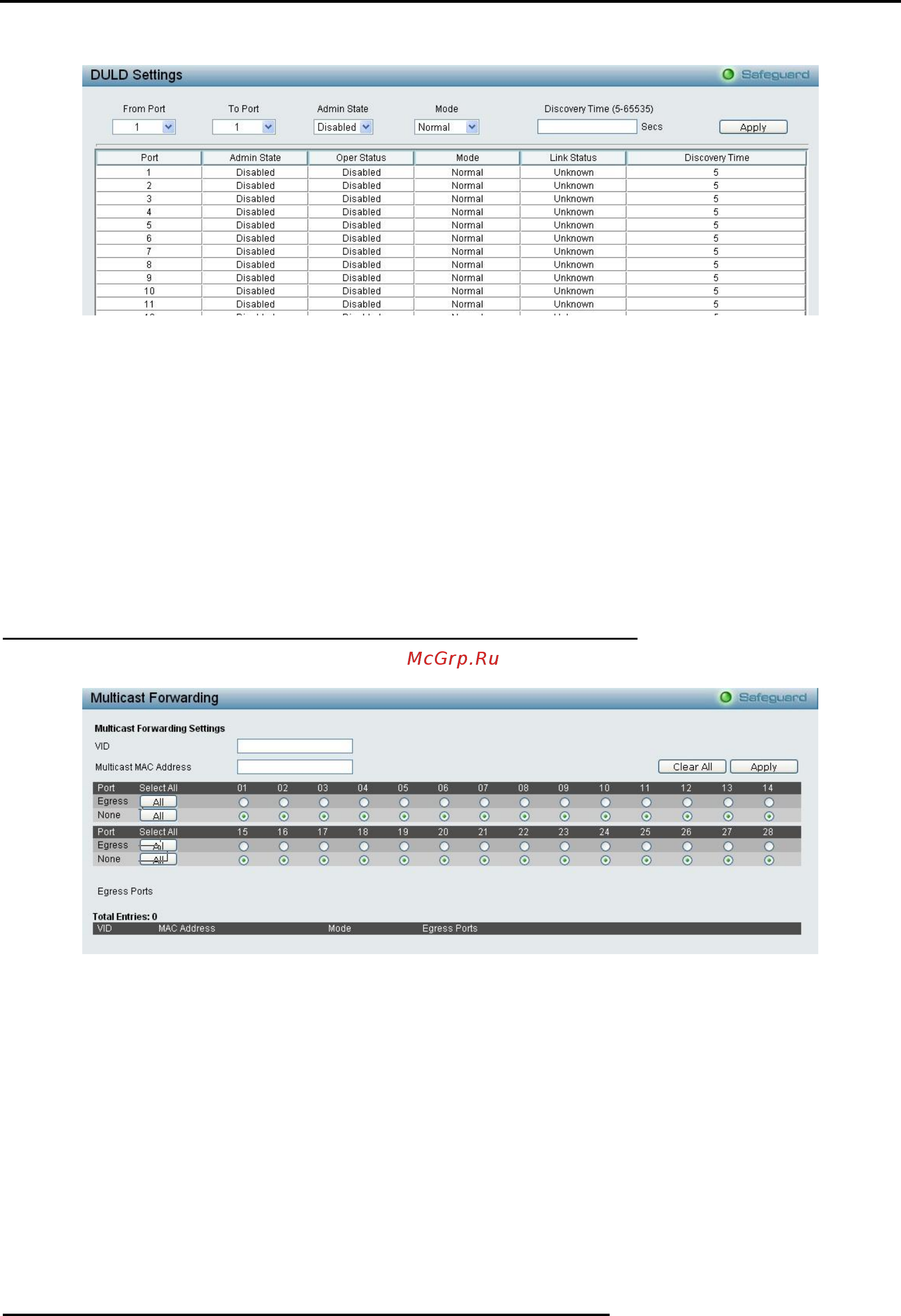

Figure 4.89 - Configuration > DULD > DULD Port Settings
From Port / To Port: Specifies a range of ports to be configured.
Admin State: Enable or disable the port unidirectional link detection status. The default is disabled.
Mode: Specifies the mode of DULD.
Normal – Only log and event when a unidirectional link is detected.
Shutdown – If any unidirectional link is detected, disable the port and log an event.
Discovery Time (5-65535): Specifies these ports neighbor discovery time. If the discovery is timeout, the
unidirectional link detection will start. The default discovery time is 5 seconds.
Click the Apply button to take effect.
Configuration > Multicast Forwarding & Filtering > Multicast Forwarding
The Multicast Forwarding page displays all of the entries made into the Switch’s static multicast forwarding
table.
Figure 4.90 - Configuration > Multicast Forwarding & Filtering > Multicast Forwarding
VID: The VLAN ID of the VLAN to which the corresponding MAC address belongs.
Multicast MAC Address: The MAC address of the static source of multicast packets. This must be a
multicast MAC address.
Port Settings: Allows the selection of ports that will be members of the static multicast group and ports
either that are forbidden from joining dynamically, or that can join the multicast group dynamically, using
GMRP.
Egress - The port is a static member of the multicast group.
None - No restrictions on the port dynamically joining the multicast group. When None is chosen,
the port will not be a member of the Static Multicast Group.
Click Apply or Clear All to implement changes made.
Configuration > Multicast Forwarding & Filtering > Multicast Filtering
The Multicast Filtering Mode page allows user to set up the filtering mode.
