4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual

HMAC-MD5: Use the check box to enable the supports of hash for message Authentication Code (HMAC)

MD5 Message Digest (MD5) mechanism.

HMAC-SHA1: Use the check box to enable the supports of hash for message Authentication Code (HMAC)

Secure Hash Algorithm (SHA) mechanism.

Public Key Algorithm:

HMAC-RSA: Use the check box to enable the supports of Hash for Message Authentication Code (HMAC)

mechanism utilizing the RSA encryption algorithm.

Click Apply to implement changes made.

Security > SSH Settings > SSH User Authentication Lists

The SSH User Authentication Lists page is used to configure parameters for users attempting to access the

Switch through SSH.

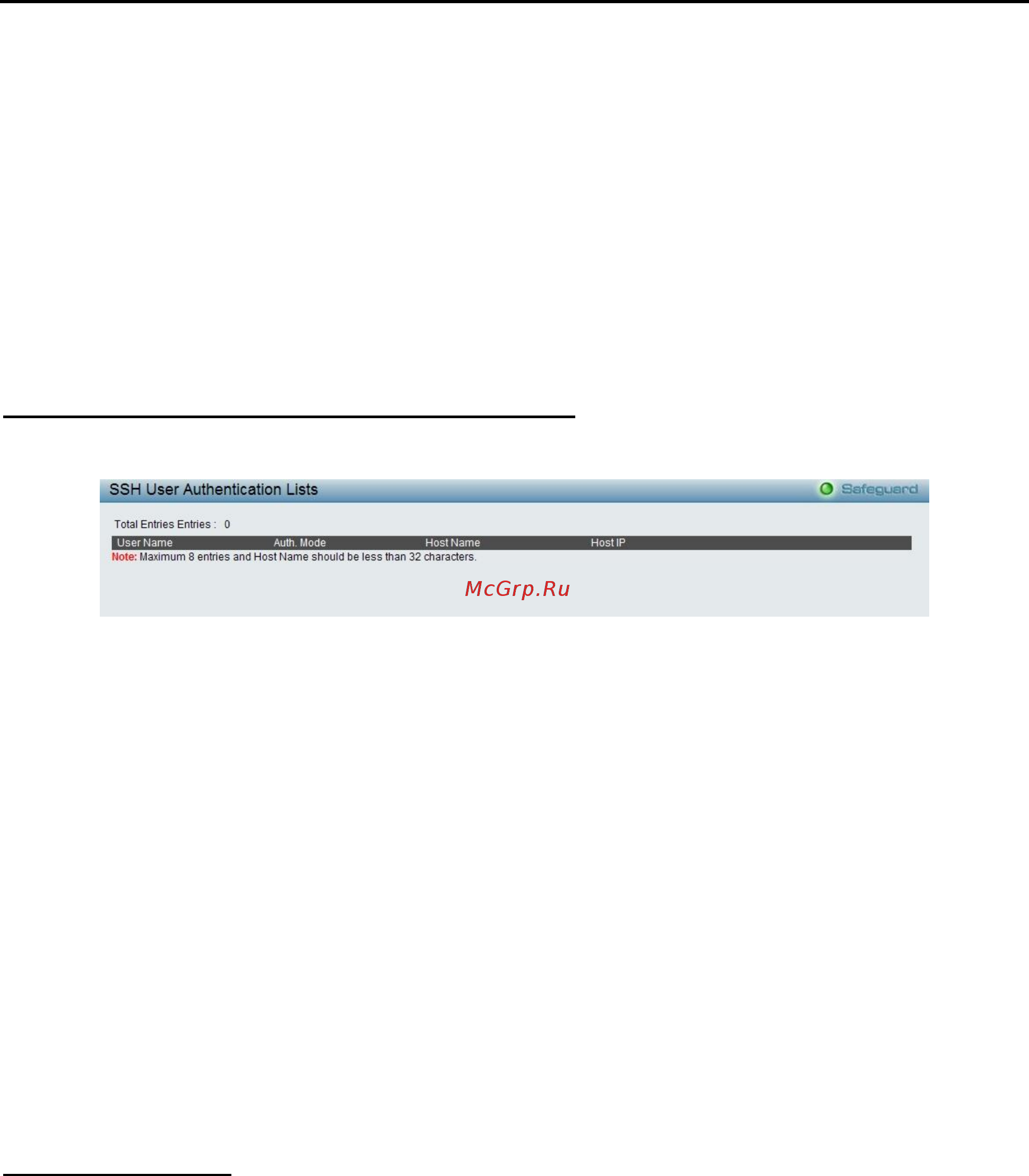

Figure 4.144 – Security > SSH Settings > SSH User Authentication Lists

The user may view the following parameters:

User Name: A name of no more than 15 characters to identify the SSH user. This User Name must be a

previously configured user account on the Switch.

Auth. Mode: The administrator may choose one of the following to set the authorization for users attempting

to access the Switch.

Host Based – This parameter should be chosen if the administrator wishes to use a remote SSH

server for authentication purposes.

Password – This parameter should be chosen if the administrator wishes to use an administrator-

defined password for authentication. Upon entry of this parameter, the Switch will prompt the

administrator for a password, and then to re-type the password for confirmation.

Public Key – This parameter should be chosen if the administrator wishes to use the public key on

an SSH server for authentication.

Host Name: Enter an alphanumeric string of no more than 32 characters to identify the remote SSH user.

This parameter is only used in conjunction with the Host Based choice in the Auth. Mode field.

Host IP: Enter the corresponding IP address of the SSH user. This parameter is only used in conjunction

with the Host Based choice in the Auth. Mode field.

Monitoring > Statistics

The Statistics screen displays the status of each port packet count.
