4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
110
Enabled – Enables the port state configured on the port.
Disabled – Disables the port state configured on the port.
Click Apply to implement changes made.
LLDP > LLDP Statistics Table
The LLDP Statistics page displays an overview of all LLDP traffic.

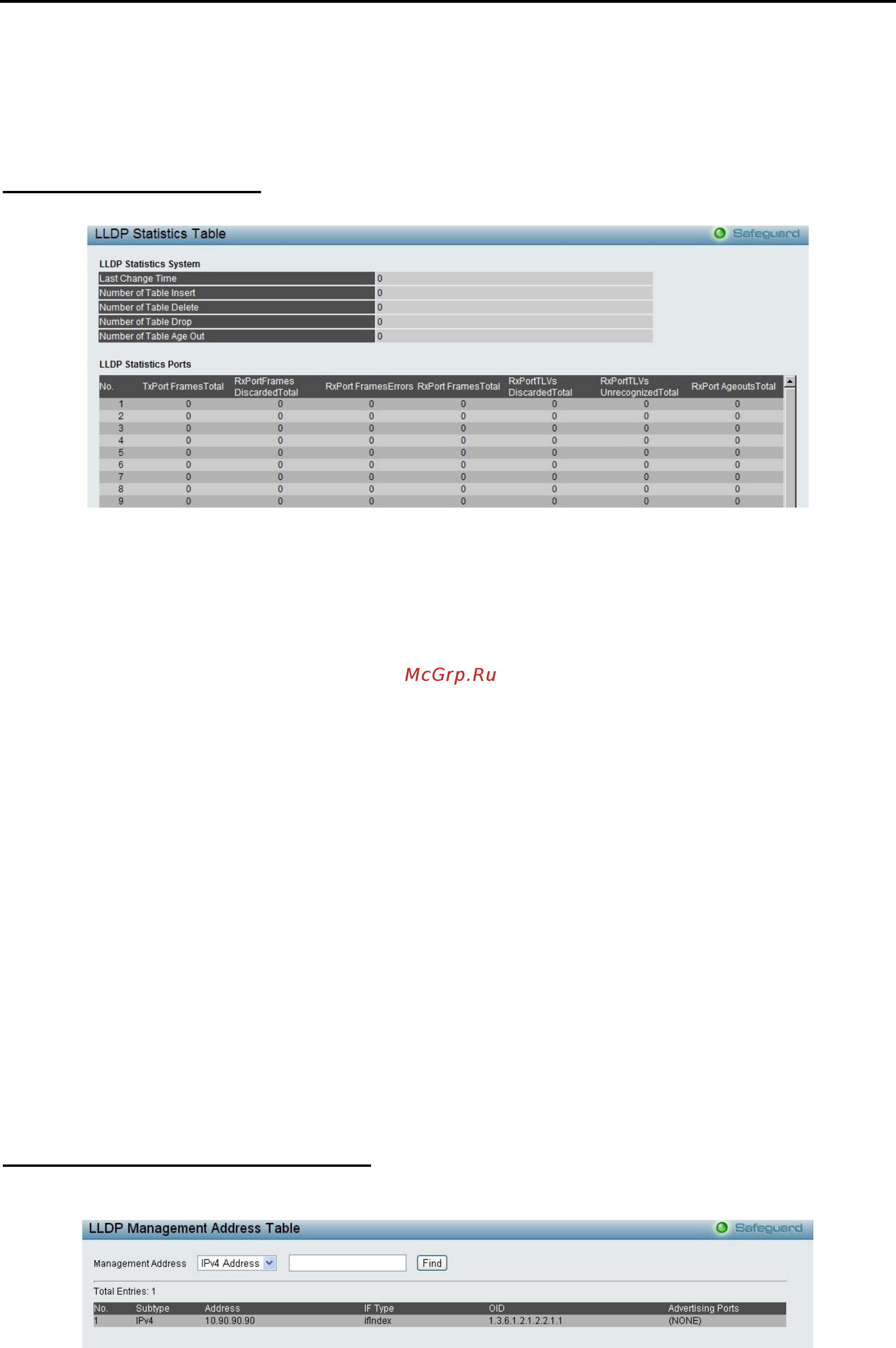

Figure 4.183 – LLDP > LLDP Statistics Table
The following information can be viewed:
LLDP Statistics System: Displays the counters that refer to the whole switch.
Last Change Time – Displays the time for when the last change entry was last deleted or added. It
is also displays the time elapsed since last change was detected.
Number of Table Insert – Displays the number of new entries inserted since switch reboot.
Number of Table Delete – Displays the number of new entries deleted since switch reboot.
Number of Table Drop – Displays the number of LLDP frames dropped due to that the table was
full.
Number of Table Age Out – Displays the number of entries deleted due to Time-To-Live expiring.
LLDP Port Statistics: Displays the counters that refer to the ports.
TxPort FramesTotal – Displays the total number of LLDP frames transmitted on the port.
RxPort FramesDiscarded – Displays the total discarded frame number of LLDP frames received on
the port.
RxPort FramesErrors – Displays the Error frame number of LLDP frames received on the port.
RxPort Frames – Displays the total number of LLDP frames received on the port.
RxPortTLVsDiscarded – Each LLDP frame can contain multiple pieces of information, known as
TLVs. If a TLV is malformed, it is counted and discarded.
RxPortTLVsUnrecognized – Displays the number of well-formed TLVs, but with a known type value.
RxPort Ageouts – Each LLDP frame contains information about how long time the LLDP information is valid.
If no new LLDP frame is received within the age out time, the LLDP information is removed, and the Age-Out
counter is incremented.
LLDP > LLDP Management Address Table
The LLDP Management Address Table page displays the detailed management address information for the
entry.
Figure 4.184 – LLDP > LLDP Management Address Table
