4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
90
256-511: The total number of packets (including bad packets) received that were between 256 and 511
octets in length inclusive (excluding framing bits but including FCS octets).
512-1023: The total number of packets (including bad packets) received that were between 512 and 1023
octets in length inclusive (excluding framing bits but including FCS octets).
1024-1518: The total number of packets (including bad packets) received that were between 1024 and 1518
octets in length inclusive (excluding framing bits but including FCS octets).
Show/Hide: Check whether or not to display 64, 65-127, 128-255, 256-511, 512-1023, and 1024-1518
packets received.
Clear: Clicking this button clears all statistics counters on this window.
View Table: Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart: Clicking this button instructs the Switch to display a line graph rather than a table.
Monitoring > Packets > Transmitted (TX)
The Transmitted (TX) page displays the following graph of packets transmitted from the Switch. To select a
port to view these statistics for, use the Port pull-down menu. The user may also use the real-time graphic of
the Switch at the top of the web page by simply clicking on a port.

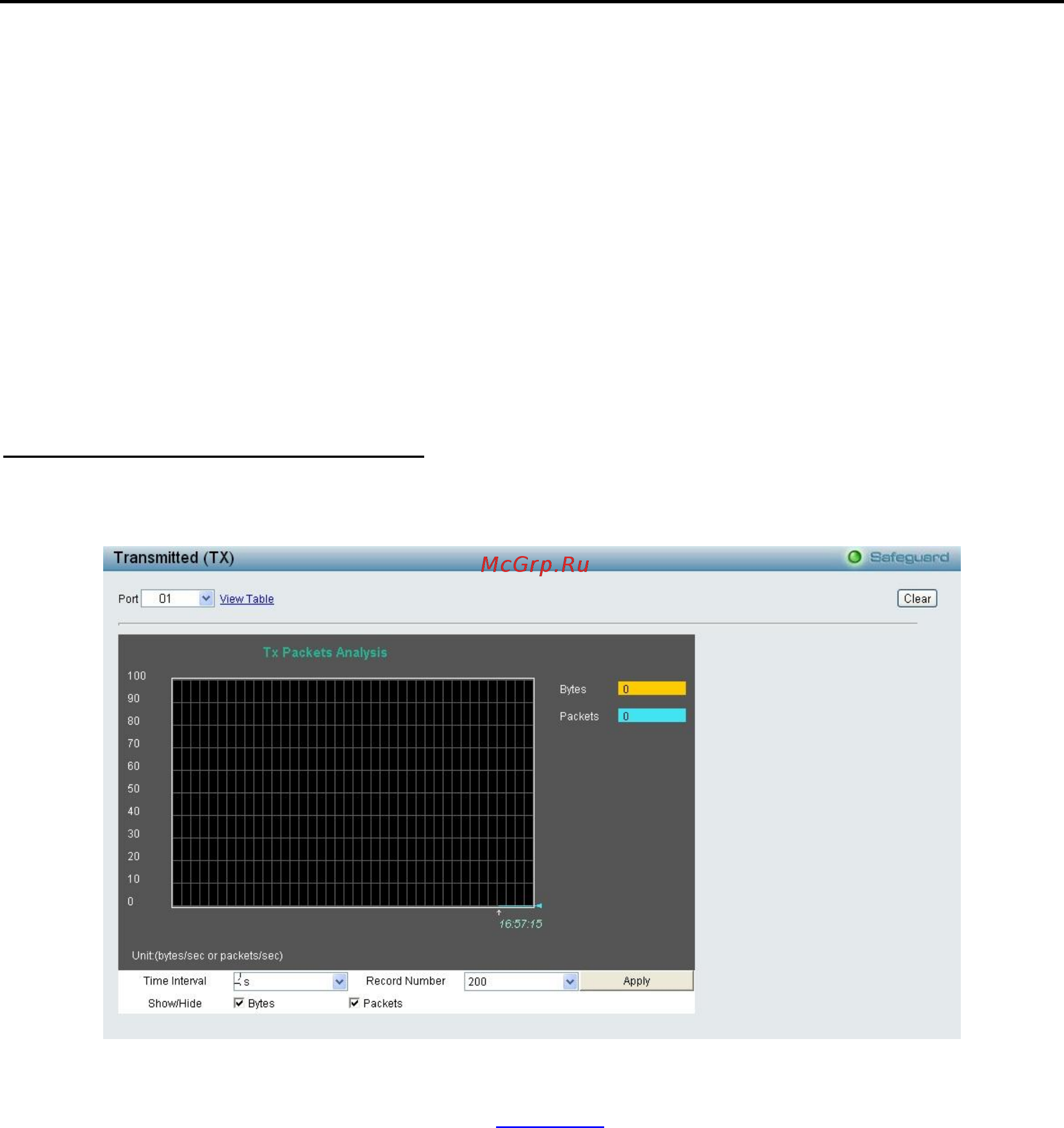

Figure 4.153 - Monitoring > Packets > Transmitted (TX) (line graph for Bytes and Packets)
To view the Transmitted (TX) Table, click the link View Table, which will show the following table:
