4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
75

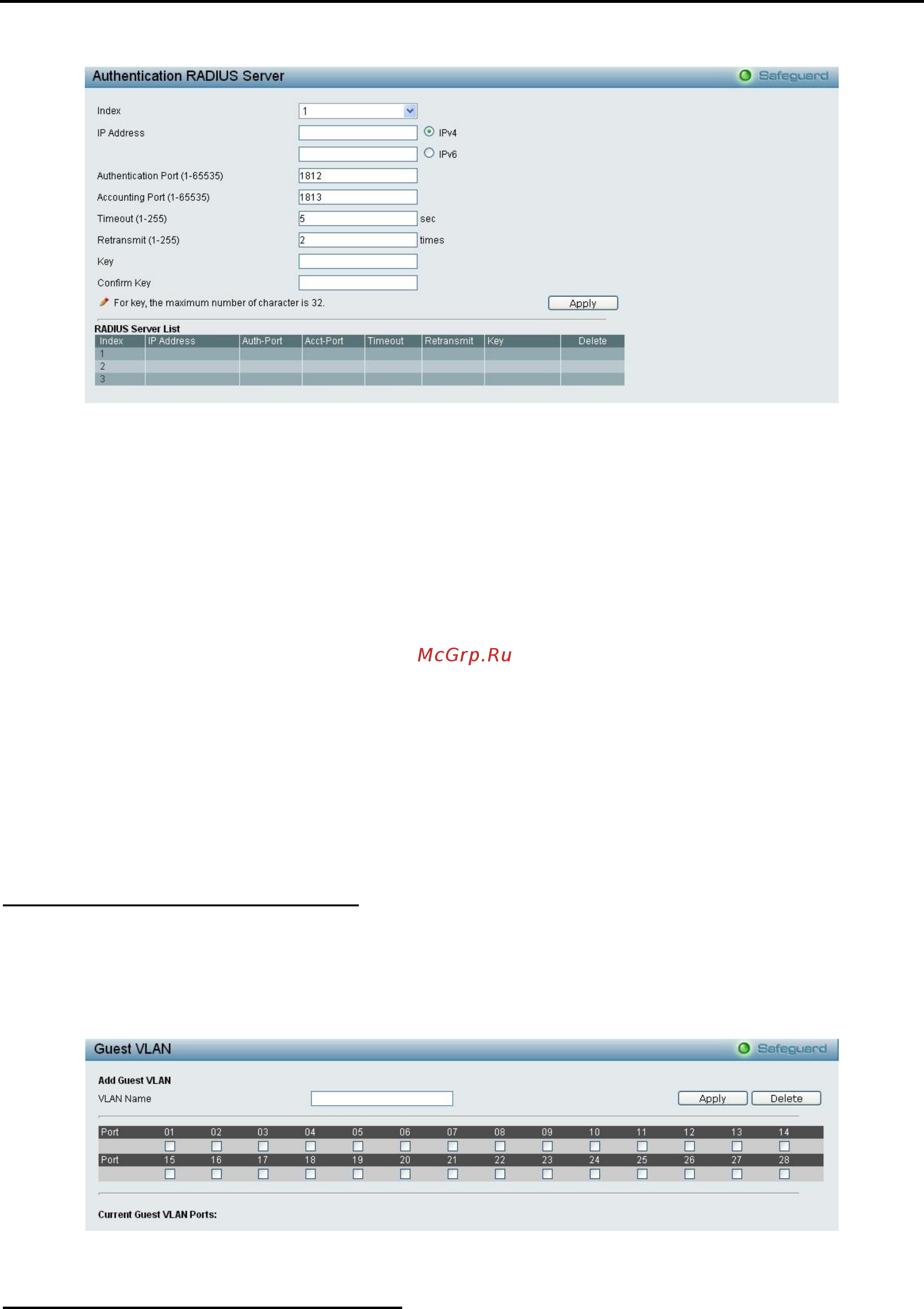

Figure 4.125 - Security > 802.1X > 802.1X Authentication RUDIUS
Index: Choose the desired RADIUS server to configure: 1, 2 or 3.
IP Address: Select IPv4 or IPv6 and enter the IP address.
Authentication Port (1 - 65535): Set the RADIUS authentic server(s) UDP port. The default port is 1812.
Accounting Port (1 - 65535): Set the RADIUS account server(s) UDP port. The default port is 1813.
Timeout (1 – 255 sec): This field will set the time the Switch will wait for a response of authentication from
the user. The user may set a time between 1 and 255 seconds. The default setting is 5 seconds.
Retransmit (1 – 255 times): This command will configure the maximum number of times the Switch will
accept authentication attempts. Users failing to be authenticated after the set amount of attempts will be
denied access to the Switch and will be locked out of further authentication attempts. Command line
interface users will have to wait 60 seconds before another authentication attempt. Telnet and web users will
be disconnected from the Switch. The user may set the number of attempts from 1 to 255. The default
setting is 2.
Key: Set the key the same as that of the RADIUS server.
Confirm Key: Confirm the shared key is the same as that of the RADIUS server.
Click Apply to implement configuration changes.
Security > 802.1X > 802.1X Guest VLAN
The 802.1X Guest VLAN page allows user to set a Guest VLAN, and the user must first configure a normal
VLAN which can be enabled here for Guest VLAN status.
Enter the pre-configured VLAN name to create as a Guest 802.1X VLAN and select the port or ports. Click
Apply to implement the settings.
Figure 4.126 - Security > 802.1X > 802.1X Guest VLAN
Security > MAC Address Table > Static MAC
This feature provides two distinct functions. The Disable Auto Learning table allows turning off the function
of learning MAC address automatically, if a port isn't specified as an uplink port (for example, connects to a
DHCP Server or Gateway). By default, this feature is Off (disabled).
