D-Link DES-1210-10/ME [82/129] Configuratio

4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual

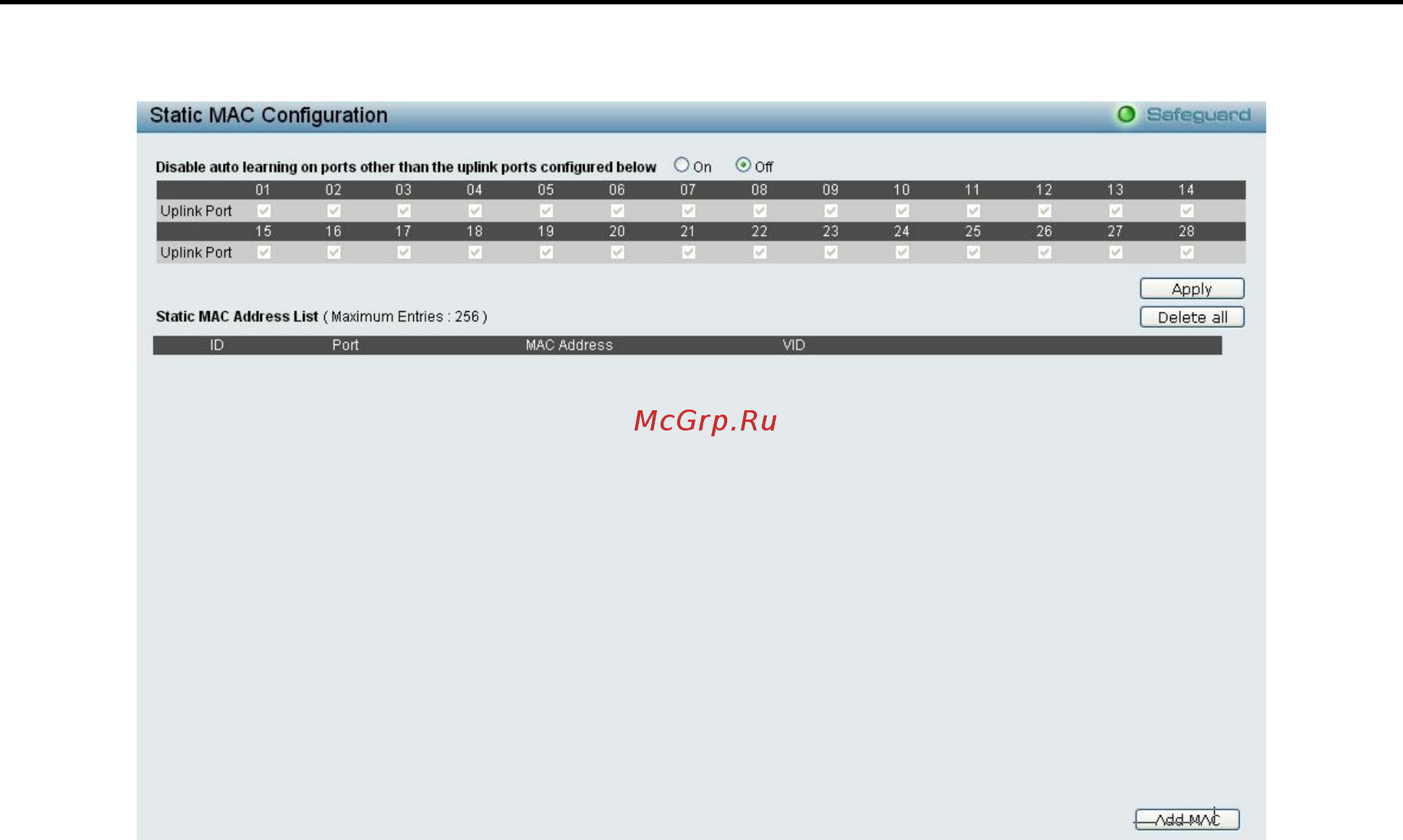

Figure 4.127 - Security > MAC Address Table > Static Mac Address

To initiate the removal of auto-learning for any of the uplink ports, click On to enable this feature, and then

select the port(s) for auto learning to be disabled.

The Static MAC Address List table displays the static MAC addresses connected, as well as the VID. Click

Add Mac to add a new MAC address, you also need to select the assigned Port number, enter both the Mac

Address and VID and Click Apply. Click Delete to remove one entry or click Delete all to clear the list. You

can also copy a learned MAC address from Dynamic Forwarding Table (please refer to Security > MAC

Address Table > Dynamic Forwarding Table for details).

By disabling Auto Learning capability and specify the static MAC addresses, the network is protected from

potential threats like hackers because traffic from illegal MAC addresses will not be forwarded by the Switch.

Click Add MAC button, select the Port, VID and enter the MAC address then click Apply to add a new MAC

address.
