4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
109

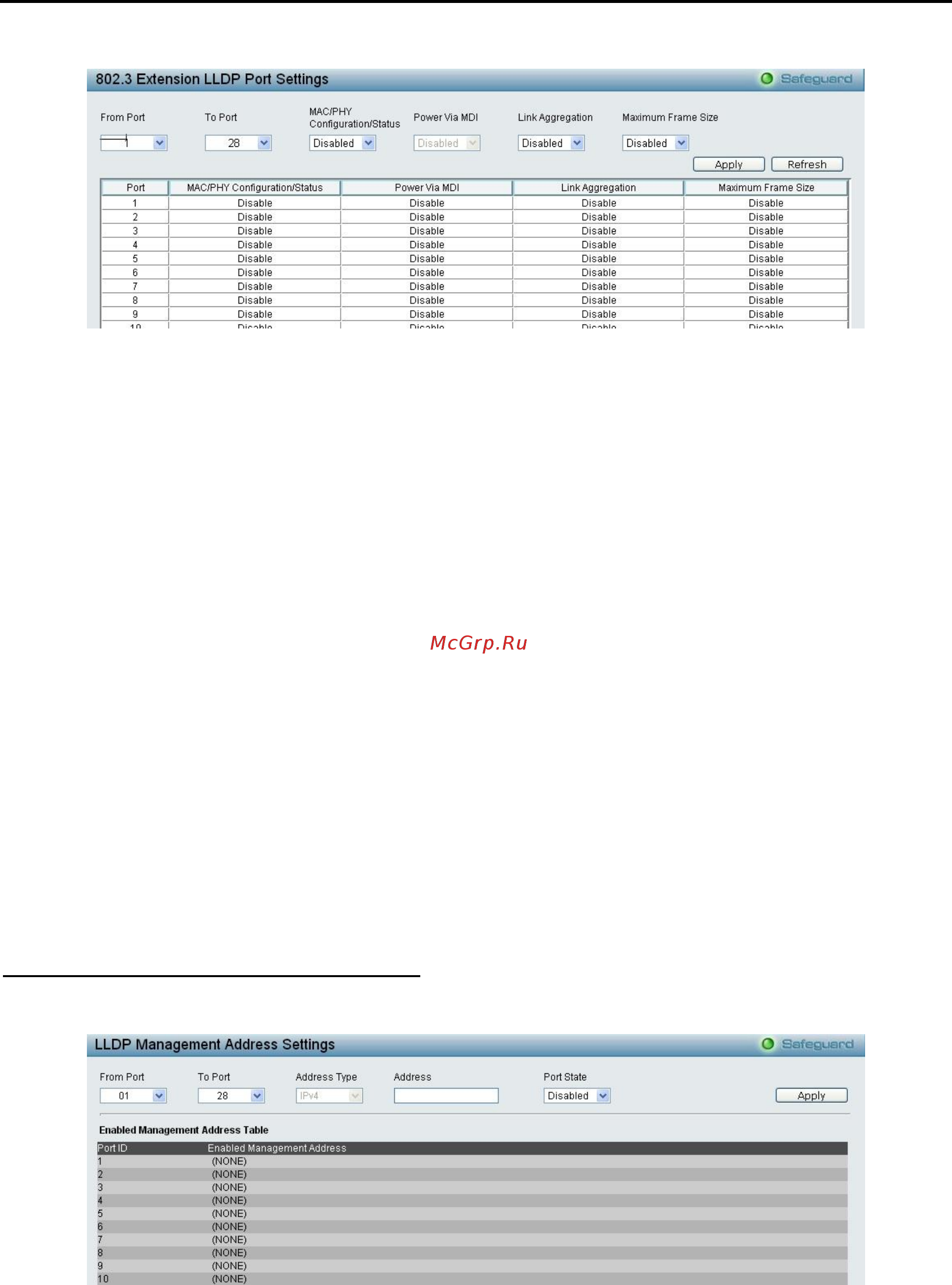

Figure 4.181 – LLDP > 802.3 Extension LLDP Port Settings
From Port/To Port: A consecutive group of ports may be configured starting with the selected port.
MAC/PHY Configuration/Status: Specifies whether the MAC/PHY Configuration Status is enabled on the
port. The possible field values are:
Enabled – Enables the MAC/PHY Configuration Status on the port.
Disabled – Disables the MAC/PHY Configuration Status on the port.
Power Via MDI: Advertises the Power via MDI implementations supported by the port. The possible field
values are:
Enabled – Enables the Power via MDI configured on the port.
Disabled – Disables the Power via MDI configured on the port.
Link Aggregation: Specifies whether the link aggregation is enabled on the port. The possible field values
are:
Enabled – Enables the link aggregation configured on the port.
Disabled – Disables the link aggregation configured on the port.
Maximum Frame Size: Specifies whether the Maximum Frame Size is enabled on the port. The possible
field values are:
Enabled – Enables the Maximum Frame Size configured on the port.
Disabled – Disables the Maximum Frame Size configured on the port.
Define these parameter fields. Click Apply to implement changes made and click Refresh to refresh the
table information.
LLDP > LLDP Management Address Settings
The LLDP Management Address Settings allows the user to set management address which is included in
LLDP information transmitted.
Figure 4.182 – LLDP > LLDP Management Address Settings
From Port/To Port: A consecutive group of ports may be configured starting with the selected port.
Address Type: Specify the LLDP address type on the port. The value is always IPv4.
Address: Specify the address.
Port State: Specify whether the Port State is enabled n the port. The possible field values are:
