4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
21

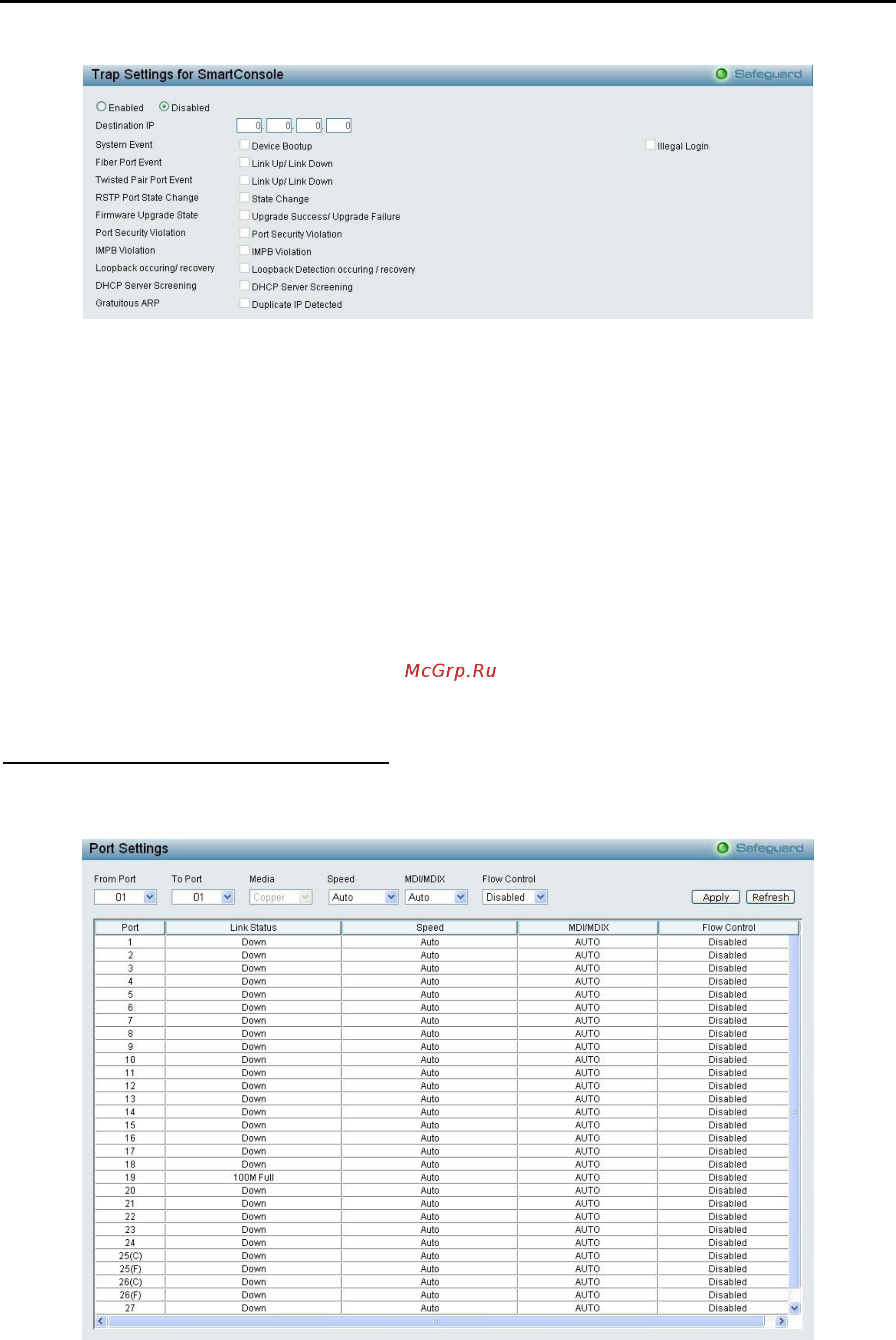

Figure 4.19 – System > Trap Settings
You can select which event message(s) to be sent to the managing station.
Destination IP: Specifies the destination IP.
System Event: Specifies the device to send bootup notifications.
Fiber Port Event: Events when fiber port connection port link up / link down.
Twisted Pair Port Event: Events when pair port connection port link up / link down.
RSTP Port State Change: Events of a RSTP port state changes.
Firmware Upgrade State: Information of firmware upgrade - success or failure.
Port Security Violation: Events of port security violation.
IMPB Violation: Specifies the device to send notifications when IMPB violation detected.
Loopback occurring/recovery: Specifies the device to send notifications when loopback occurring /
recovery.
DHCP Server Screening: Specifies the device to send notifications when DHCP server screening.
Gratuitious ARP: Specifies the device to send notifications when duplicate IP were detected.
System > Port Configuration > Port Settings
In the Port Setting page, the status of all ports can be monitored and adjusted for optimum configuration. By
selecting a range of ports (From Port and To Port), the Speed can be set for all selected ports by clicking
Apply. Press the Refresh button to view the latest information.
Figure 4.20 – System > Port Configuration > Port Settings
