4 Configuration DES-1210 Metro Ethernet Managed Switch User Manual
63

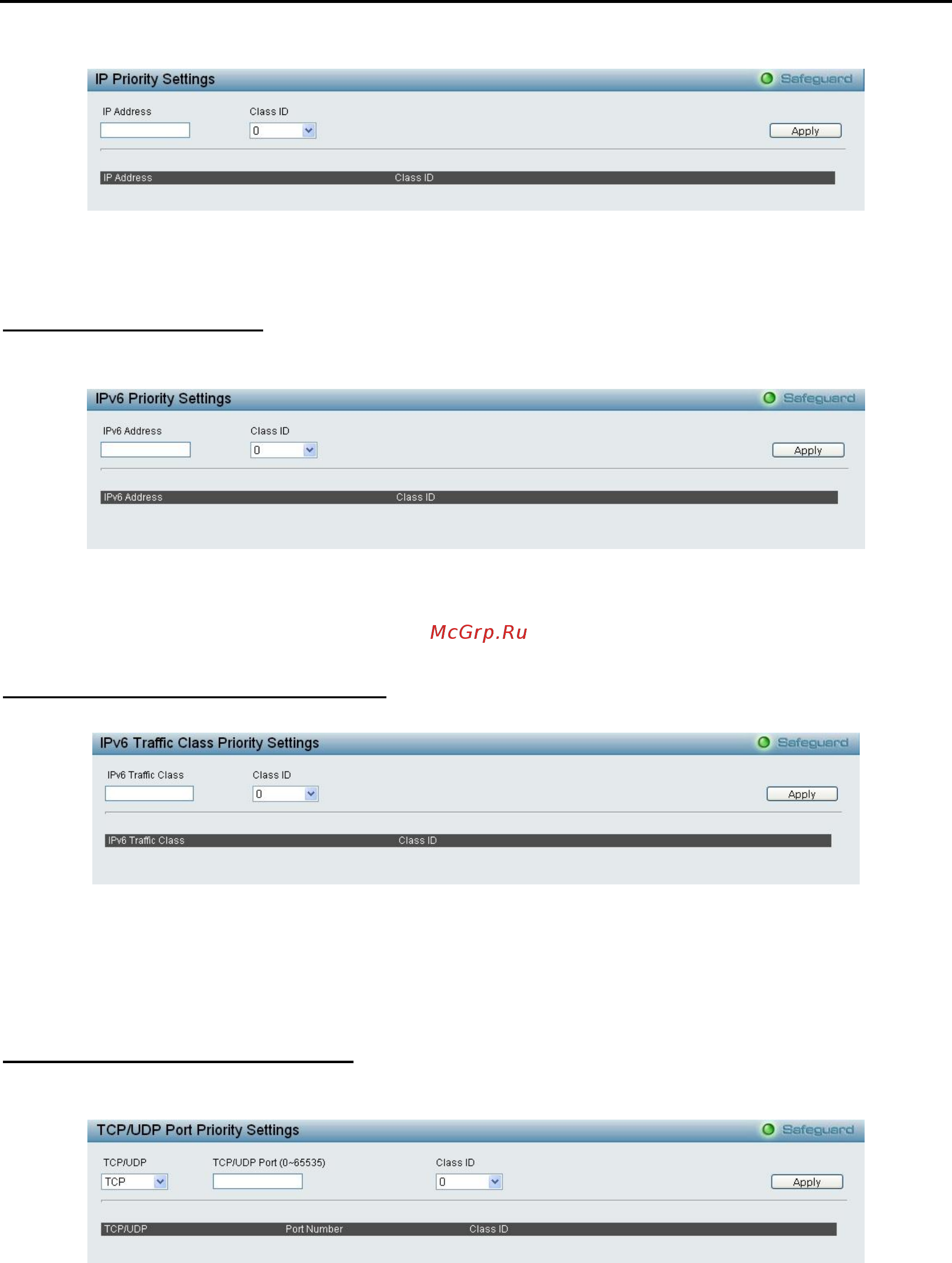

Figure 4.101 - QoS > IP Priority Settings
Enter the IP Address and select a Class ID where packets containing this destination IP address will be sent.
Click Apply to implement changes made.
QoS > IPv6 Priority Settings
When using the IPv6 Priority mechanism, the packet is classified based on the IP address field priority in the
IP priority table entries.
Figure 4.102 - QoS > IPv6 Priority Settings
Enter the IP Address and select a Class ID where packets containing this destination IP address will be sent.
Click Apply to implement changes made.
QoS > IPv6 Traffic Class Priority Settings
The IPv6 Traffic Class Priority Settings page allows user to configure the priority of traffic class.
Figure 4.103 - QoS > IPv6 Traffic Class Priority Settings
Enter the IPv6 Traffic Class and select a Class ID where packets containing this traffic class address will be
sent.
Click Apply to implement changes made.
QoS > TCP/UDP Port Priority Settings
When using the TCP/UDP Port Priority mechanism, the packet is classified based on the TCP/UDP field
priority in the TCP/UDP priority table entries. The TCP/UDP port number now supports with IPv0034.
Figure 4.104 - QoS > TCP/UDP Port Priority Settings
TCP/UDP: Specify the port priority to be TCP or UDP.
TCP/UDP Port (0-65535): Specify the TCP/UDP port number.
Class ID: Defines the Class ID assigned to the port. The priority Class ID fields are 0-3.
Click Apply to implement changes made.
