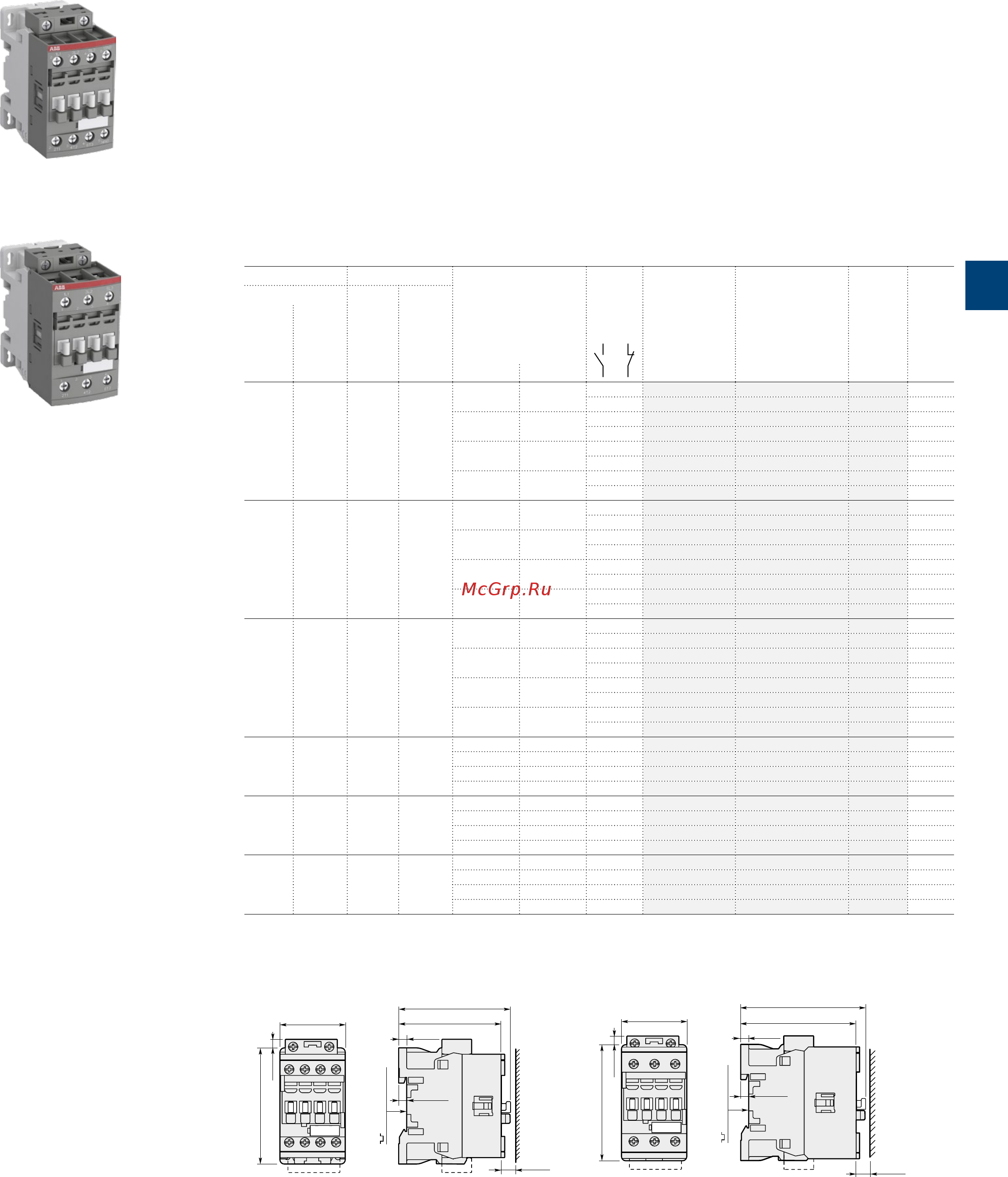

![ABB ASL09-30-10-81 [111/202] Af09z af38z 3 pole contactors 4 to 18 kw ac dc operated low consumption](/img/pdf.png)
ABB ASL09-30-10-81 [111/202] Af09z af38z 3 pole contactors 4 to 18 kw ac dc operated low consumption
![ABB ASL09-30-10-81 [111/202] Af09z af38z 3 pole contactors 4 to 18 kw ac dc operated low consumption](/views2/1556191/page111/bg6f.png)
1SBC101011V0014
AF09Z-30-10
1SBC101001V0014
AF26Z-30-00
AF09Z ... AF38Z 3-pole contactors
4 to 18.5kW
AC / DC operated - low consumption
Main dimensions mm, inches
45 1.77"
80 3.15"
6 0.24"
77 3.03"
71 2.80"
5.5 0.22"
35 mm
EN/IEC 60715
10 0.39"
5.5 0.22"
35 1.38"
70 2.76"
60 2.36"
5 0.20"
5 0.20"
ø 4.2 0.17"
2 x
M4 8-32 UNC
AF09Z, AF12Z, AF16Z
35 1.38"
70 2.76"
60 2.36"
5 0.20"
5 0.20"
ø 4.2 0.17"
2 x
M4 8-32 UNC
45 1.77"
80 3.15"
6 0.24"
86 3.39"
80 3.15"
10 0.39"
35 mm
EN/IEC 60715
5.5 0.22"
5.5 0.22"
AF26Z, AF30Z, AF38Z
Description
AF09Z ... AF38Z contactors are mainly used for controlling 3-phase motors and power circuits up to
690VAC and 220VDC. These contactors are of the block type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250VAC and DC), only 4 control voltage ranges covering 24...250V 50/60Hz and
12...250VDC
- can manage large control voltage variations
- allow direct control by PLC-output ≥ 24 V DC 500 mA
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL/CSA Rated control circuit
voltage
Uc min. … Uc max.
Auxiliary
contacts
fitted
Type
(1)
Order code Weight
Pkg
(1 pce)
Rated operational 3-phase
motor
rating
General
use
rating
power current
θ ≤ 40°C
400V 480V 600VAC
AC-3 AC-1
kW A hp A V 50/60Hz V DC kg
4 25 5 25 - 12...20 1 0 AF09Z-30-10-20 1SBL136001R2010 0.310
0 1 AF09Z-30-01-20 1SBL136001R2001 0.310
24...60 20...60 1 0 AF09Z-30-10-21 1SBL136001R2110 0.310
0 1 AF09Z-30-01-21 1SBL136001R2101 0.310
48...130 48...130 1 0 AF09Z-30-10-22 1SBL136001R2210 0.310
0 1 AF09Z-30-01-22 1SBL136001R2201 0.310
100...250 100...250 1 0 AF09Z-30-10-23 1SBL136001R2310 0.310
0 1 AF09Z-30-01-23 1SBL136001R2301 0.310
5.5 28 7.5 28 - 12...20 1 0 AF12Z-30-10-20 1SBL156001R2010 0.310
0 1 AF12Z-30-01-20 1SBL156001R2001 0.310
24...60 20...60 1 0 AF12Z-30-10-21 1SBL156001R2110 0.310
0 1 AF12Z-30-01-21 1SBL156001R2101 0.310
48...130 48...130 1 0 AF12Z-30-10-22 1SBL156001R2210 0.310
0 1 AF12Z-30-01-22 1SBL156001R2201 0.310
100...250 100...250 1 0 AF12Z-30-10-23 1SBL156001R2310 0.310
0 1 AF12Z-30-01-23 1SBL156001R2301 0.310
7.5 30 10 30 - 12...20 1 0 AF16Z-30-10-20 1SBL176001R2010 0.310
0 1 AF16Z-30-01-20 1SBL176001R2001 0.310
24...60 20...60 1 0 AF16Z-30-10-21 1SBL176001R2110 0.310
0 1 AF16Z-30-01-21 1SBL176001R2101 0.310
48...130 48...130 1 0 AF16Z-30-10-22 1SBL176001R2210 0.310
0 1 AF16Z-30-01-22 1SBL176001R2201 0.310
100...250 100...250 1 0 AF16Z-30-10-23 1SBL176001R2310 0.310
0 1 AF16Z-30-01-23 1SBL176001R2301 0.310
11 45 15 45 - 12...20 0 0 AF26Z-30-00-20 1SBL236001R2000 0.350
24...60 20...60 0 0 AF26Z-30-00-21 1SBL236001R2100 0.350
48...130 48...130 0 0 AF26Z-30-00-22 1SBL236001R2200 0.350
100...250 100...250 0 0 AF26Z-30-00-23 1SBL236001R2300 0.350
15 50 20 50 - 12...20 0 0 AF30Z-30-00-20 1SBL276001R2000 0.350
24...60 20...60 0 0 AF30Z-30-00-21 1SBL276001R2100 0.350
48...130 48...130 0 0 AF30Z-30-00-22 1SBL276001R2200 0.350
100...250 100...250 0 0 AF30Z-30-00-23 1SBL276001R2300 0.350
18.5 50 25 50 - 12...20 0 0 AF38Z-30-00-20 1SBL296001R2000 0.350
24...60 20...60 0 0 AF38Z-30-00-21 1SBL296001R2100 0.350
48...130 48...130 0 0 AF38Z-30-00-22 1SBL296001R2200 0.350
100...250 100...250 0 0 AF38Z-30-00-23 1SBL296001R2300 0.350
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
Note: Only AF..Z contactors with DC control voltage 12...20VDC need to respect the connection polarities indicated close to the coil
terminals: A1+ for the positive pole and A2- for the negative pole.
1SBC101372S0201 - Rev. B
ABB Motor protection and control - short form catalog | 5/35
