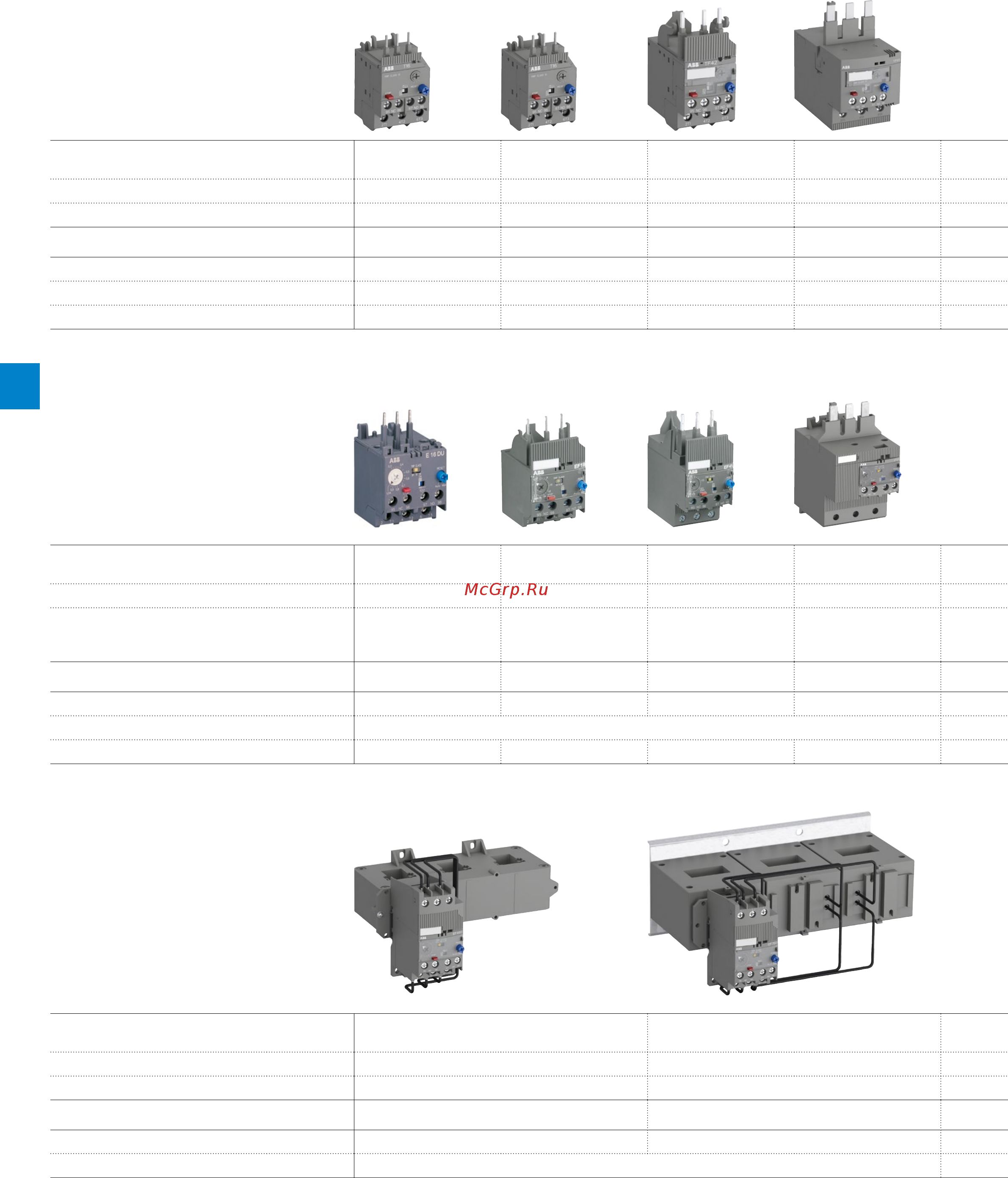

Thermal overload
relays
IEC: rated operational power
AC-3 400 V 0.06 … 7.5 kW 0.06 … 7.5 kW 0.06 … 18.5 kW 11 … 37 kW 18.5 … 45 kW 37 … 75 kW 37 … 110 kW
UL/CSA: 3-phase hp-ratings 480 V 1/2 … 10 hp 1/2 … 10 hp 1/2 … 25 hp 15 … 50 hp 30 ... 75 hp 50 … 100 hp 50 … 150 hp
Fitting to contactors B6, B7 AS09 … AS16 AF09 ... AF38 AF40, AF52, AF65 AF80, AF96 AF116, AF140 AF190, AF205
Type T16 T16 TF42 TF65 TF96 TF140DU TA200DU
Current range
0.10 … 16 A 0.10 … 16 A 0.10 … 38 A 22 … 67 A
40 … 96 A 66 … 142 A 66 … 200 A
Trip class
10 10 10 10
10 10A 10A
Single mounting kit
DB16 DB16 DB42 DB65
DB96 - DB200
Electronic overload
relays
with integrated CT
IEC: rated operational power
AC-3 400 V 0.06 … 7.5 kW 0.06 … 7.5 kW 4 … 22 kW 7.5 … 37 kW 22 … 55 kW 30 … 75 kW 37 … 110 kW 75 … 200 kW
UL/CSA: 3-phase hp-ratings 480 V 1/2 … 10 hp 1/2 … 10 hp 5 … 30 hp 15 … 50 hp 30 ... 75 hp 50 … 100 hp 50 … 150 hp 100 … 300 hp
Fitting to contactors B6, B7, BC6, BC7,
VB6, VB7, VBC6,
VBC7
AF09 … AF16 AF26 ... AF38 AF40, AF52, AF65 AF80, AF96 AF116, AF140, AF146 AF190, AF205 AF265, AF305, AF370
Type E16DU EF19 EF45 EF65 EF96 EF146 EF205 EF370
Current range
0.10 … 18.9 A 0.10 … 18.9 A 9 … 45 A 20 … 70 A
36 … 100 A 54 … 150 A 63 … 210 A 115 … 380 A
Trip class
10E, 20E, 30E selectable
10E, 20E, 30E selectable
Single mounting kit
DB16E DB19EF DB45EF -
DB96 - - -
Electronic overload
relays
with external separate CT
IEC: rated operational power
AC-3 400 V 75 … 250 kW 132 … 400 kW 250 … 710 kW
UL/CSA: 3-phase hp-ratings 480 V 100 … 400 hp 200 … 500 hp 350 … 500 hp
Fitting to contactors AF400, AF460 AF580, AF750, AF1250 AF1350, AF1650
Type EF460 EF750 E1250DU
Current range 150 … 500 A 250 … 800 A 375 … 1250 A
Trip class
10E, 20E, 30E selectable
10E, 20E, 30E selectable
Thermal and electronic overload relays
6/2 | ABB Motor protection and control - short form catalog
