ABB Motor protection and control - short form catalog | 2/27
Main accessories
MS49x, MO49x manual motor starters
Description
Manual motor starters can be equipped with auxiliary contacts for lateral/front mounting, signalling contact
for lateral mounting, undervoltage release and shunt trips. The accessories can be fitted wiring free and
without tools. A variety of combinations is possible as required for the application. The auxiliary contacts
change position with the main contacts. Undervoltage release are used for remote tripping of the manual
motor starter especially for emergency stop circuits. Shunt trips release the MMS used for remote tripping.
For this manual motor starter range we offer terminal shrouds, terminal insulation barriers and different
lock/key solutions for customer solutions.

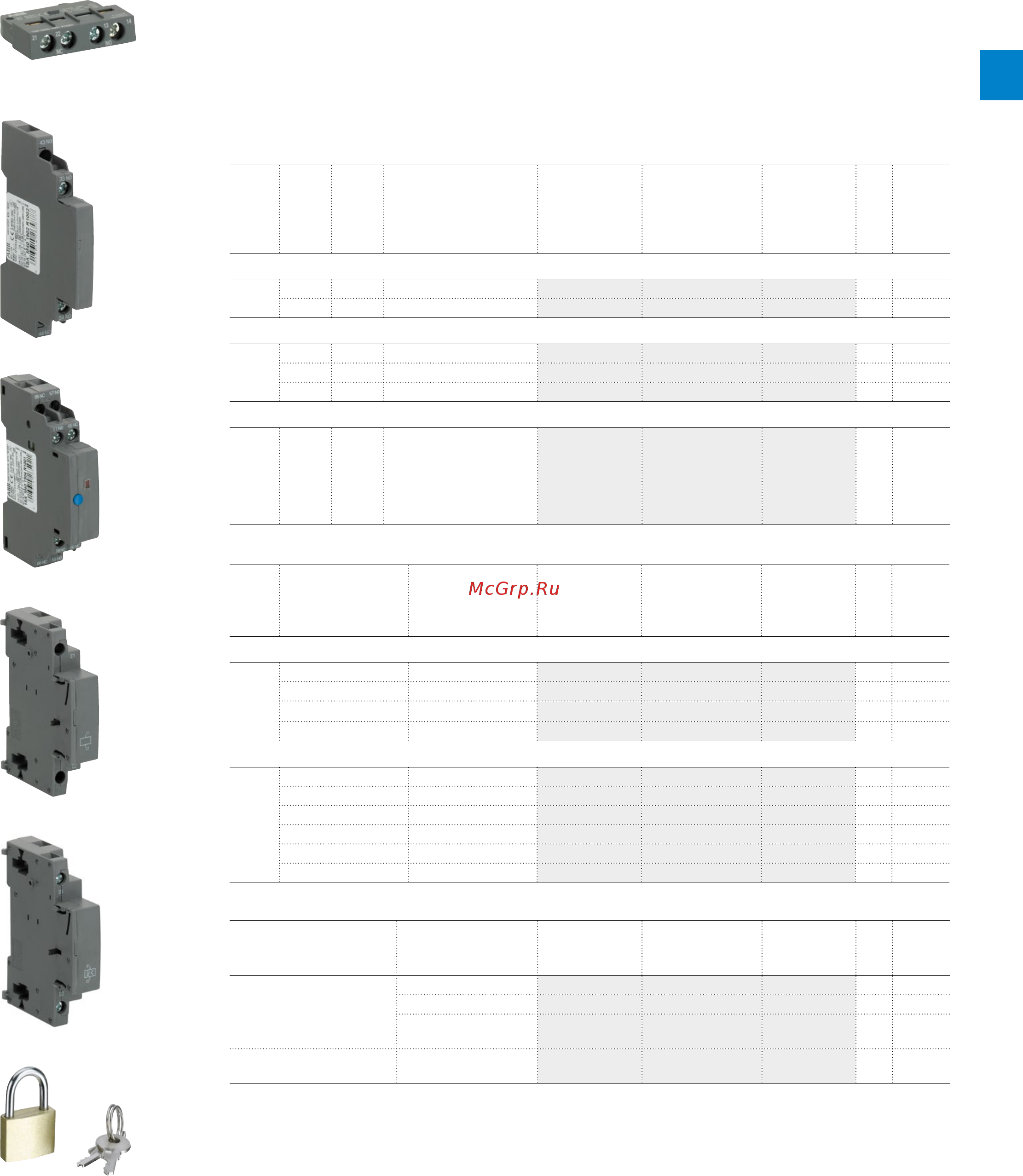

Ordering details
Suitable
for
Auxiliary
con-
tacts
N.O.
Auxiliary
con-
tacts
N.C.
Description Type Order code Pkg
qty
Weight
(1 pce)
pcs kg
Auxiliary contacts – mountable on the front
MS49x,
MO49x
1 1 HK4-11 1SAM401901R1001 10 0.017
Changeover HK4-W 1SAM401901R1002 10 0.015
Auxiliary contacts – mountable on the left
MS49x,
MO49x
1 1 Max. 1 piece HKS4-11 1SAM401902R1001 2 0.045
2 0 Max. 1 piece HKS4-20 1SAM401902R1002 2 0.045
0 2 Max. 1 piece HKS4-02 1SAM401902R1003 2 0.045
Signalling contacts – mountable on the left
MS49x,
MO49x
2 2 Separate signalling acc.
UL508E 1N.O. + 1 N.C.
for short circuit alarm and
1 N.O. + 1 N.C. for tripped
alarm, max. 1xSK4-11 +
1xHKS4-xx
SK4-11 1SAM401904R1001 1 0.093
Suitable
for
Rated control supply
voltage
Frequency Type Order code Pkg
qty
Weight
(1 pce)
V Hz pcs kg
Shunt trip units – mountable on the right
MS49x,
MO49x
20 ... 24 50/60 AA4-24 1SAM401907R1001 1 0.135
90 ... 110 50/60 AA4-110 1SAM401907R1002 1 0.135
200 ... 240 50/60 AA4-230 1SAM401907R1003 1 0.128
350 ... 415 50/60 AA4-400 1SAM401907R1004 1 0.125
Undervoltage releases – mountable on the right
MS49x,
MO49x
24 50/60 UA4-24 1SAM401905R1004 1 0.134
110/120 50/60 UA4-110 1SAM401905R1001 1 0.134
230/240 50/60 UA4-230 1SAM401905R1002 1 0.131
400/440 50/60 UA4-400 1SAM401905R1003 1 0.129
230/240 50/60 UA4-HK-230 1SAM401906R1001 1 0.140
400/440 50/60 UA4-HK-400 1SAM401906R1002 1 0.137
Suitable for Description Type Order code Pkg
qty
Weight
(1 pce)
pcs kg
MS495, MS497,
MO495, MO496
Terminal shroud KA495 1SAM501901R1001 10 0.018
Terminal shroud KA495C
1)
1SAM501902R1001 10 0.038
Terminal insulation barrier
for UL508E
DX495 1SAM401912R1001 1 0.154
MS495, MS497, MO495,
MO496
Padlock + two keys SA2 GJF1101903R0002 10 0.020
1)
Is plugged onto the housing after removing the box terminals, if using cable lugs.
2CDC241026F0011
HK4-11
2CDC241022F0011
HKS4-20
2CDC241024F0011
SK4-11
2CDC241023F0011
AA4-24
2CDC241025F0011
UA4-110
2CDC241023F0013
SA2
