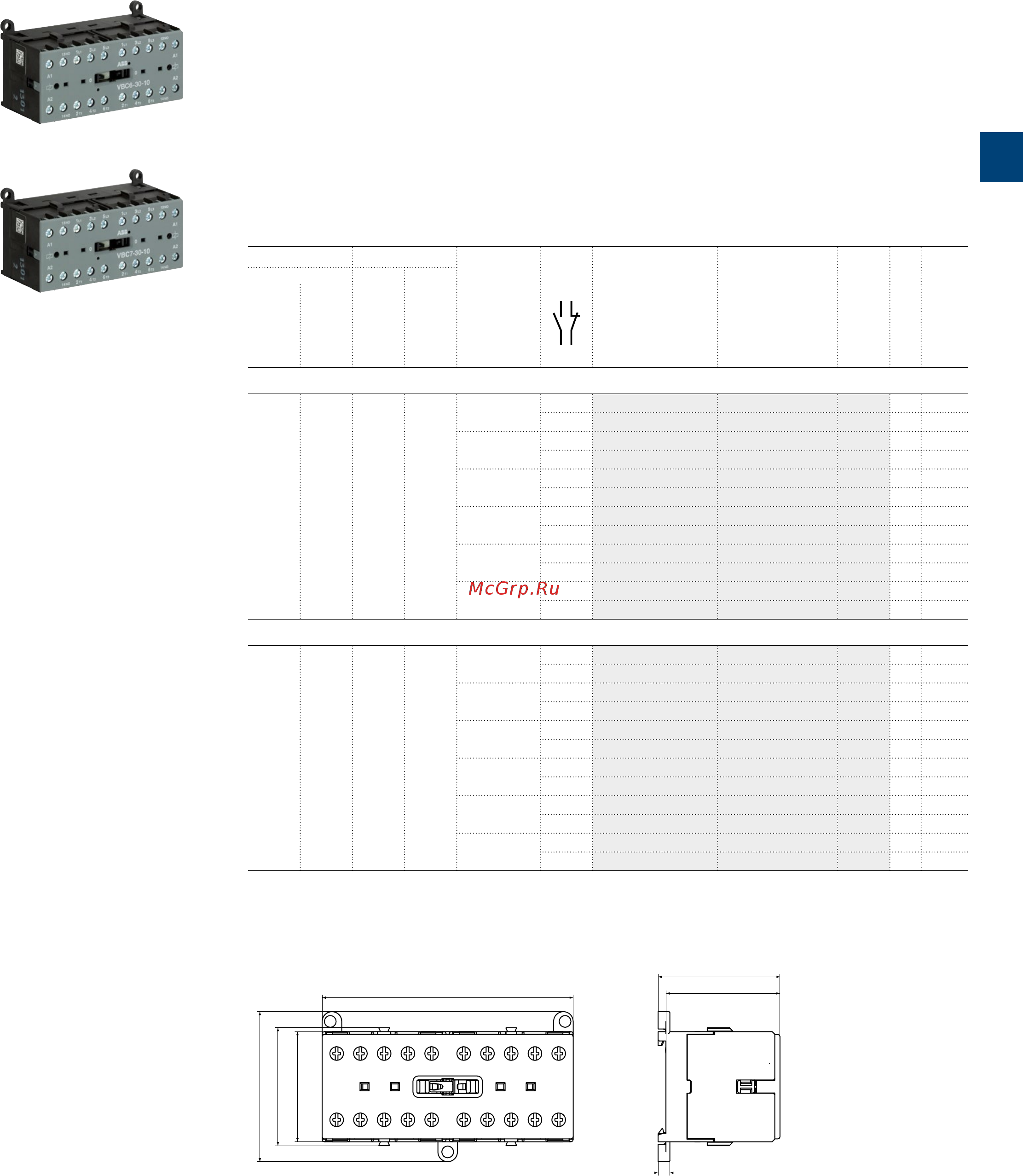

VBC6, VBC7 3-pole mini reversing contactors – with screw terminals
4 to 5.5 kW
DC operated
Description
VBC6, VBC7 3-pole compact design reversing contactors are space optimized control products mainly
used for switching resistive or motor loads up to 690 V AC.
These reversing contactors are designed with:
– built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must be de-
energised for 50 ms at least to prevent phase to phase short circuit on the arc.
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
– add-on auxiliary contact blocks for front mounting
– designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control
circuit voltage
U
C
Auxiliary
contacts
fitted
Type Order code
Pkg
qty
Weight
(1 pce)
Rated operational 3-phase
motor
rating
480 V
General
use
rating
power
400 V
AC-3
current
θ ≤ 40 °C
AC-1
kW A hp V DC kg
VBC6 mini reversing contactors
4 20 3 300 V /
12 A
12 1 0 VBC6-30-10-07 GJL1213901R0107 5 0.355
0 1 VBC6-30-01-07 GJL1213901R0017 5 0.355
24 1 0 VBC6-30-10-01 GJL1213901R0101 5 0.355
0 1 VBC6-30-01-01 GJL1213901R0011 5 0.355
48 1 0 VBC6-30-10-16 GJL1213901R1106 5 0.355
0 1 VBC6-30-01-16 GJL1213901R1016 5 0.355
60 1 0 VBC6-30-10-03 GJL1213901R0103 5 0.355
0 1 VBC6-30-01-03 GJL1213901R0013 5 0.355
110 ... 125 1 0 VBC6-30-10-04 GJL1213901R0104 5 0.355
0 1 VBC6-30-01-04 GJL1213901R0014 5 0.355
220 … 240 1 0 VBC6-30-10-05 GJL1213901R0105 5 0.355
0 1 VBC6-30-01-05 GJL1213901R0015 5 0.355
VBC7 mini reversing contactors
5.5 20 5 600 V /
16 A
12 1 0 VBC7-30-10-07 GJL1313901R0107 5 0.355
0 1 VBC7-30-01-07 GJL1313901R0017 5 0.355
24 1 0 VBC7-30-10-01 GJL1313901R0101 5 0.355
0 1 VBC7-30-01-01 GJL1313901R0011 5 0.355
48 1 0 VBC7-30-10-16 GJL1313901R1106 5 0.355
0 1 VBC7-30-01-16 GJL1313901R1016 5 0.355
60 1 0 VBC7-30-10-03 GJL1313901R0103 5 0.355
0 1 VBC7-30-01-03 GJL1313901R0013 5 0.355
110 ... 125 1 0 VBC7-30-10-04 GJL1313901R0104 5 0.355
0 1 VBC7-30-01-04 GJL1313901R0014 5 0.355
220 … 240 1 0 VBC7-30-10-05 GJL1313901R0105 5 0.355
0 1 VBC7-30-01-05 GJL1313901R0015 5 0.355
Other types on request
Main dimensions mm, inches
4.5 0.18"
43.7 1.72"
46.7 1.84"
96.2 3.79"
42.2 1.66"
45.2 1.78"
57.5 2.26"
2CDC212005F0011
VBC6, VBC7
2CDC211042F0011
VBC6-30-10
2CDC211001F0011
VBC7-30-10
3
