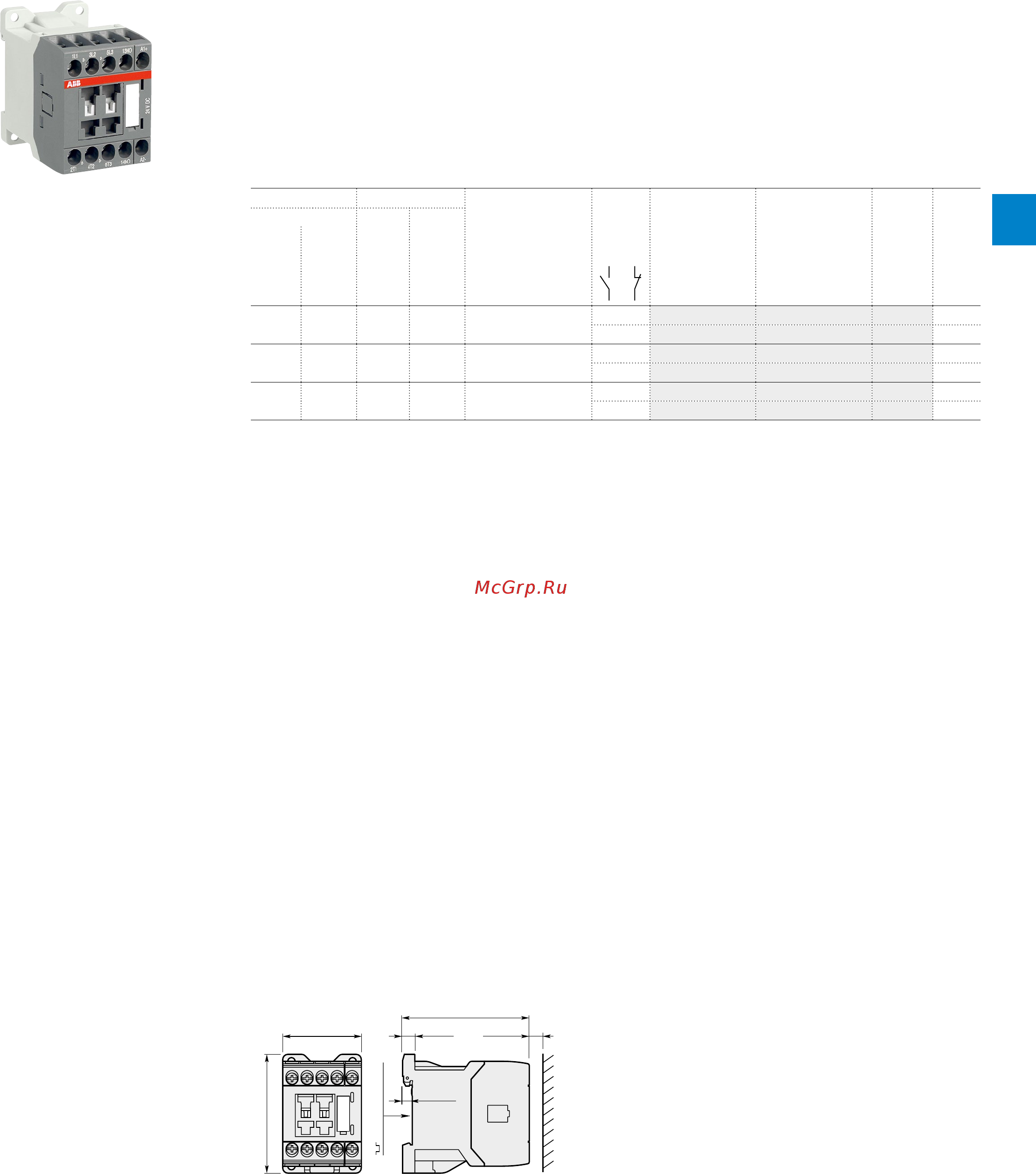

![ABB ASL09-30-10-81 [65/202] Asl09 asl16 3 pole contactors 4 to 7 kw dc operated](/img/pdf.png)
ABB ASL09-30-10-81 [65/202] Asl09 asl16 3 pole contactors 4 to 7 kw dc operated
![ABB ASL09-30-10-81 [65/202] Asl09 asl16 3 pole contactors 4 to 7 kw dc operated](/views2/1556191/page65/bg41.png)
1SBC101010F0014
ASL09-30-10
Description
ASL09 ... ASL16 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
and 220 V DC.
These contactors are of the block type design with:
– 3 main poles and 1 built-in auxiliary contact
– control circuit: low consumption (3 W at pull-in and holding) DC operated with solid core magnet. Suitable for
direct control by PLC outputs (the polarity on the coil terminals A1+ and A2- must be respected)
– add-on auxiliary contact blocks for front mounting and a comprehensive range of accessories.
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted Pkg
θ
≤ 40 °C rating rating (1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V DC
kg
4 22 5 20 24 1 0 ASL09-30-10-81 1SBL103001R8110 0.280
0 1 ASL09-30-01-81 1SBL103001R8101 0.280
5.5 24 7.5 20 24 1 0 ASL12-30-10-81 1SBL113001R8110 0.280
0 1 ASL12-30-01-81 1SBL113001R8101 0.280
7.5 24 10 20 24 1 0 ASL16-30-10-81 1SBL123001R8110 0.280
0 1 ASL16-30-01-81 1SBL123001R8101 0.280
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.
Main dimensions mm, inches
60 2.36"
35 1.38"
45 1.77"
68 2.68"
72.5 2.85"
5.5 0.22"
7 0.28"
35 mm
EN/IEC 60715
ø 4.2 0.17"
2 x
M4 8-32 UNC
10 0.39"
ASL09, ASL12, ASL16
1SBC101302S0201 - Rev. A
ASL09 ... ASL16 3-pole contactors
4 to 7.5 kW
DC operated
ABB Motor protection and control - short form catalog | 4/9
