2CDC106064C0201a
ABB Motor protection and control - short form catalog | 6/7

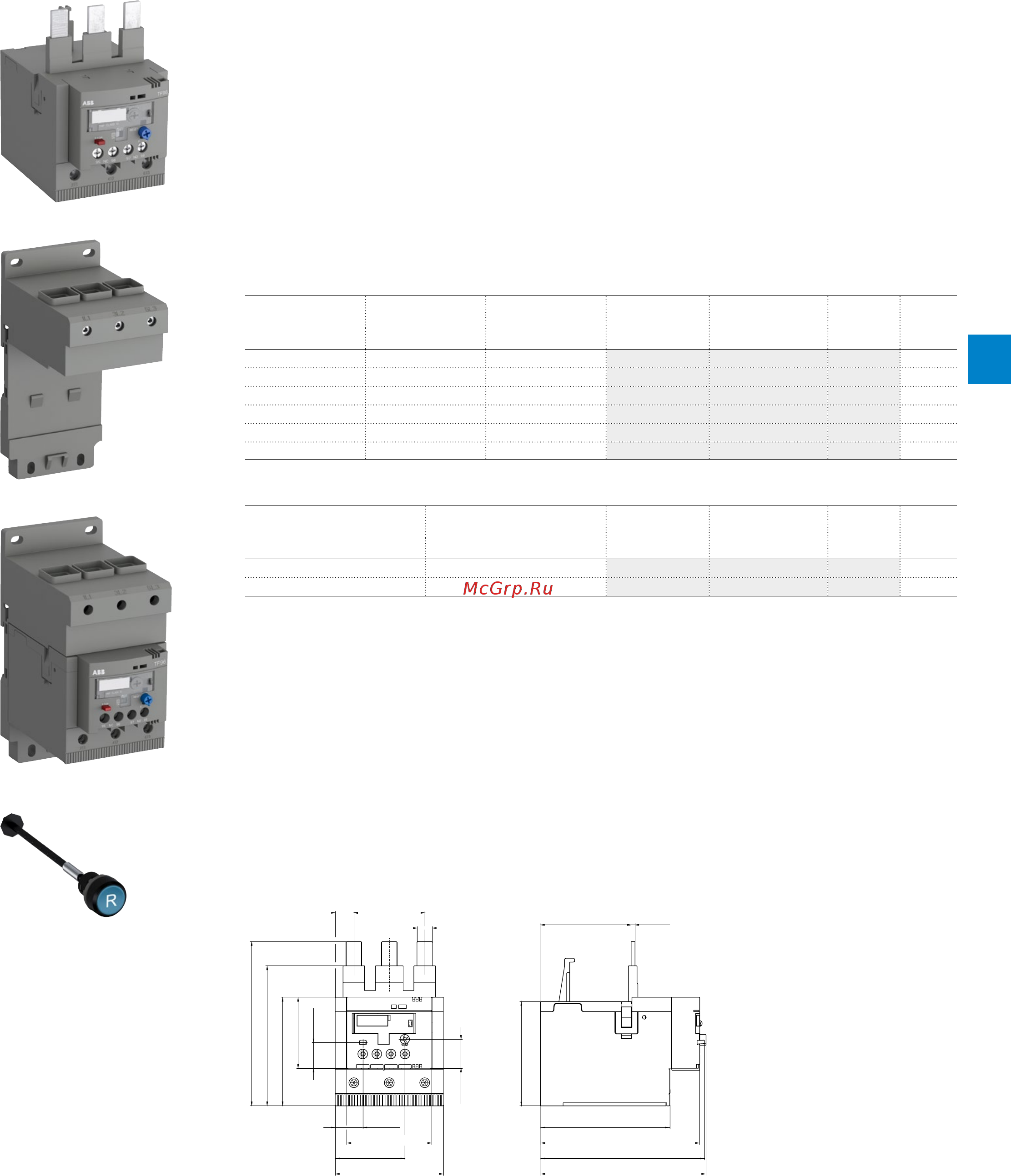

TF96 thermal overload relays – 40.0 to 96.0 A
Ordering details
Description
The TF96 thermal overload relays are economic electromechanical protection devices for the main circuit.
They offer reliable protection for motors in the event of overload or phase failure. The devices have trip
class 10.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows
through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over
current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a
change of the contacts switching position (95-96 / 97-98).
– Manual or automatic reset selectable
– Phase loss sensitive acc. to IEC/EN 60947-4-1
– TEST and STOP function – Trip indication on the front
– Temperature compensation
– Suitable for three- and single-phase applications
– With ATEX certification
1)
Ordering details
Setting range Short-circuit
protective device
Trip class Type Order code Weight
(1 pce)
A kg
40.0 ... 51.0 125 A, gG Type Fuses 10
TF96-51
1SAZ911201R1001 0.620
48.0 ... 60.0 160 A, gG Type Fuses 10
TF96-60
1SAZ911201R1002 0.620
57.0 ... 68.0 160 A, gG Type Fuses 10
TF96-68
1SAZ911201R1003 0.620
65.0 ... 78.0 200 A, gG Type Fuses 10
TF96-78
1SAZ911201R1004 0.620
75.0 ... 87.0 200 A, gG Type Fuses 10
TF96-87
1SAZ911201R1005 0.620
84.0 ... 96.0 250 A, gG Type Fuses 10
TF96-96
1SAZ911201R1006 0.630
Ordering details accessories
Suitable for Description Type Order code Weight
(1 pce)
kg
TF96, EF96 Single mounting kit
DB96
1SAZ901901R1001 0.190
TF96 Reset push button
2)
KPR-101L
1SFA616162R1014 0.027
1)
ATEX is valid for products, produced from week 26, 2015
2)
Note: for more information see catalog 1SFC151004C0201
2CDC231005F0013
TF96
2CDC231001V0015
DB96
2CDC231005V0015
DB96 + TF96
Main dimensions mm, inches
2T1 4T2 6T3
16.6 0.65"
10 0.39"
45.8
1.80"
70.3 2.77"
60.6 3.57"
46
1.81"
44.9
1.77"
54.9
2.16"
17.9
0.70"
18.9
0.74"
2.5
0.10"
58.5
2.30"
12.1
0.47"
67.5 2.66"
83.5 3.29"
102.8 4.05"
106.1 4.18"
106.9 4.21"
106.3 4.19"
69.9
2.75"
2CDC232005F0009
TF96
1SFC151224F0002
KPR-101L
6
