2CDC102009C0201
3/10 | ABB Motor protection and control - short form catalog

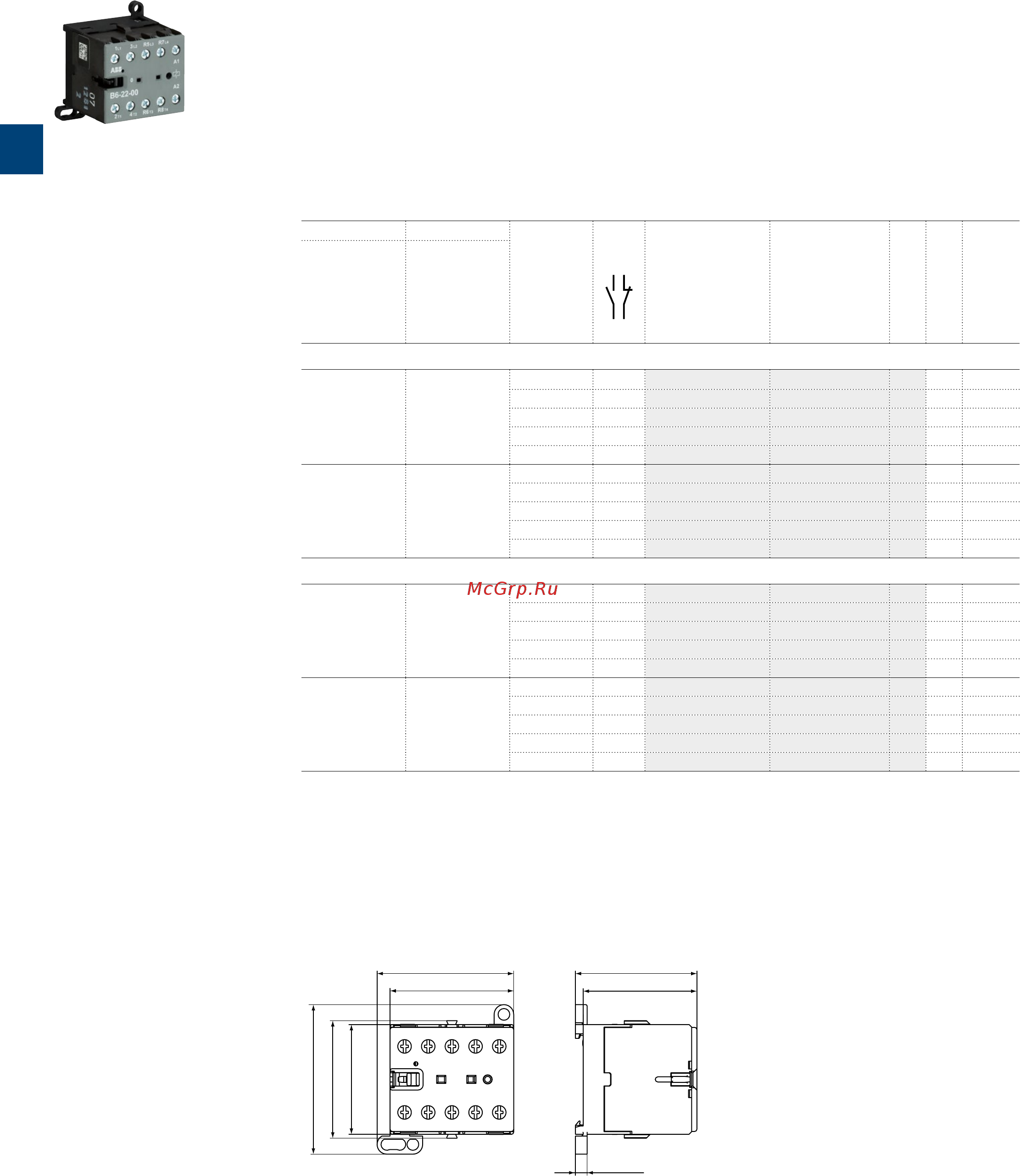

B6, B7 4-pole mini contactors – with screw terminals
4 to 5.5 kW
AC operated
Description
B6, B7 4-pole mini contactors are compact control products mainly used for switching resistive loads up
to 690 V AC.
These contactors are designed with:
– 4 main poles
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
– hum-free coil
– designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control
circuit voltage
U
C
50/60 Hz
Auxiliary
contacts
fitted
Type Order code
Pkg
qty
Weight
(1 pce)
Rated operational
current
θ ≤ 40 °C
AC-1
General use
rating
A V AC kg
4 N.O. main poles
20 300 V / 12 A 24 0 0 B6-40-00-01 GJL1211201R0001 10 0.175
42 0 0 B6-40-00-02 GJL1211201R0002 10 0.175
48 0 0 B6-40-00-03 GJL1211201R0003 10 0.175
110 ... 127 0 0 B6-40-00-84 GJL1211201R8004 10 0.175
220 ... 240 0 0 B6-40-00-80 GJL1211201R8000 10 0.175
20 600 V / 16 A 24 0 0 B7-40-00-01 GJL1311201R0001 10 0.175
42 0 0 B7-40-00-02 GJL1311201R0002 10 0.175
48 0 0 B7-40-00-03 GJL1311201R0003 10 0.175
110 ... 127 0 0 B7-40-00-84 GJL1311201R8004 10 0.175
220 ... 240 0 0 B7-40-00-80 GJL1311201R8000 10 0.175
2 N.O. + 2 N.C. main poles
20 300 V / 12 A 24 0 0 B6-22-00-01 GJL1211501R0001 10 0.175
42 0 0 B6-22-00-02 GJL1211501R0002 10 0.175
48 0 0 B6-22-00-03 GJL1211501R0003 10 0.175
110 ... 127 0 0 B6-22-00-84 GJL1211501R8004 10 0.175
220 ... 240 0 0 B6-22-00-80 GJL1211501R8000 10 0.175
20 600 V / 16 A 24 0 0 B7-22-00-01 GJL1311501R0001 10 0.175
42 0 0 B7-22-00-02 GJL1311501R0002 10 0.175
48 0 0 B7-22-00-03 GJL1311501R0003 10 0.175
110 ... 127 0 0 B7-22-00-84 GJL1311501R8004 10 0.175
220 ... 240 0 0 B7-22-00-80 GJL1311501R8000 10 0.175
Other types on request
Main dimensions mm, inches
47.5 1.87"
52.5 2.07"
57.5 2.26"
42.2 1.66"
45.2 1.78"
4.5 0.18"
43.7 1.72"
46.7 1.84"
2CDC212001F0011
B6, B7
2CDC211028F0011
B6-22-00
3
