2CDC106054C0201a
6/8 | ABB Motor protection and control - short form catalog

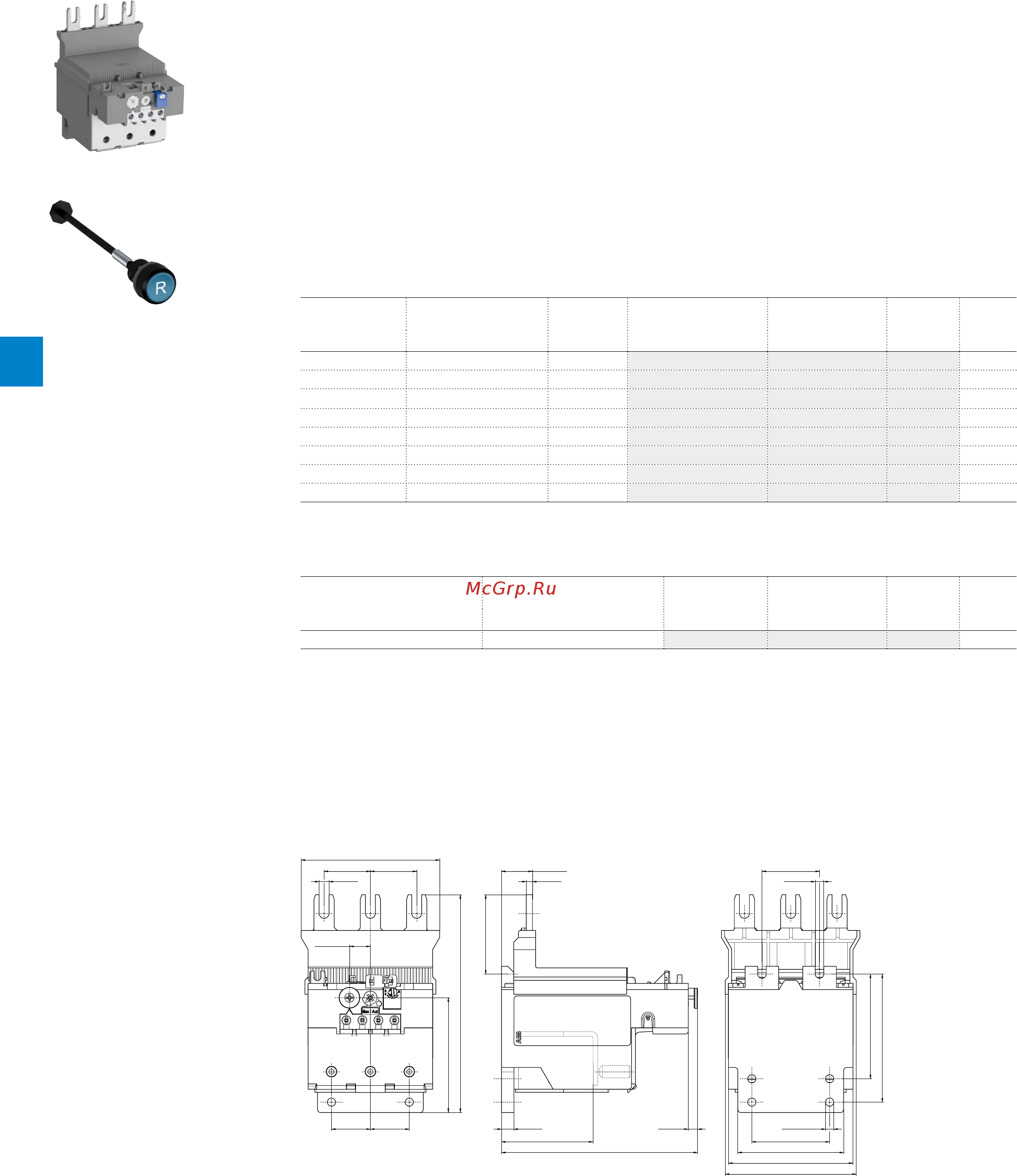

TF140DU thermal overload relays – 66 to 142 A
Ordering details
Description
The TF140DU thermal overload relays are economic electromechanical protection devices for the main
circuit. They offer reliable protection for motors in the event of overload or phase failure. The devices have
trip class 10A.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows
through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over
current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a
change of the contacts switching position (95-96 / 97-98).
– Manual or automatic reset selectable
– Phase loss sensitive acc. to IEC/EN 60947-4-1
– TEST and STOP function – Trip indication on the front
– Temperature compensation
– Suitable for three- and single-phase applications
– ATEX variants available
Ordering details
Setting range Short-circuit
protective device
Trip class Type Order code Weight
(1 pce)
A kg
66 ... 90 200 A, fuse type gG 10A
TF140DU-90
1SAZ431201R1001 0.820
80 ... 110 224 A, fuse type gG 10A
TF140DU-110
1SAZ431201R1002 0.820
100 ... 135 224 A, fuse type gG 10A
TF140DU-135
1SAZ431201R1003 0.820
110 ... 142 250 A, fuse type gG 10A
TF140DU-142
1SAZ431201R1004 0.820
66 ... 90 200 A, fuse type gG 10A
TF140DU-90-V1000*
1SAZ431301R1001 0.820
80 ... 110 224 A, fuse type gG 10A
TF140DU-110-V1000*
1SAZ431301R1002 0.820
100 ... 135 224 A, fuse type gG 10A
TF140DU-135-V1000*
1SAZ431301R1003 0.820
110 ... 142 250 A, fuse type gG 10A
TF140DU-142-V1000*
1SAZ431301R1004 0.820
*Note: ATEX variant
Ordering details accessories
Suitable for Description Type Order code Weight
(1 pce)
kg
TF140DU Reset push button*
KPR-101L
1SFA616162R1014 0.027
*Note: for more information see catalog 1SFC151004C0201
2CDC231012F0012
TF140DU
Main dimensions mm, inches
98 97 96 95
2/T1 4/T2 6/T3
140 5.51"
25
0.98"
58.8 2.31"
13.45 0.53"
89 3.5"
29.75
1.17"
6.4 3.5"
73.8 2.91"
126 4.96"
6 0.24"
4 0.16"
19.9 0.78"
5.5 0.22"
37 1.46"
67.3 2.65"
82.3 3.24"
5.3 0.21"
50 1.97"
68 2.68"
80 3.15"
84.2 3.31"
51 2.01"
29.75
1.17"
25
0.98"
8 0.31"
2CDC232008F0012
TF140DU
1SFC151224F0002
KPR-101L
6
