2CDC102010C0201
3/8 | ABB Motor protection and control - short form catalog

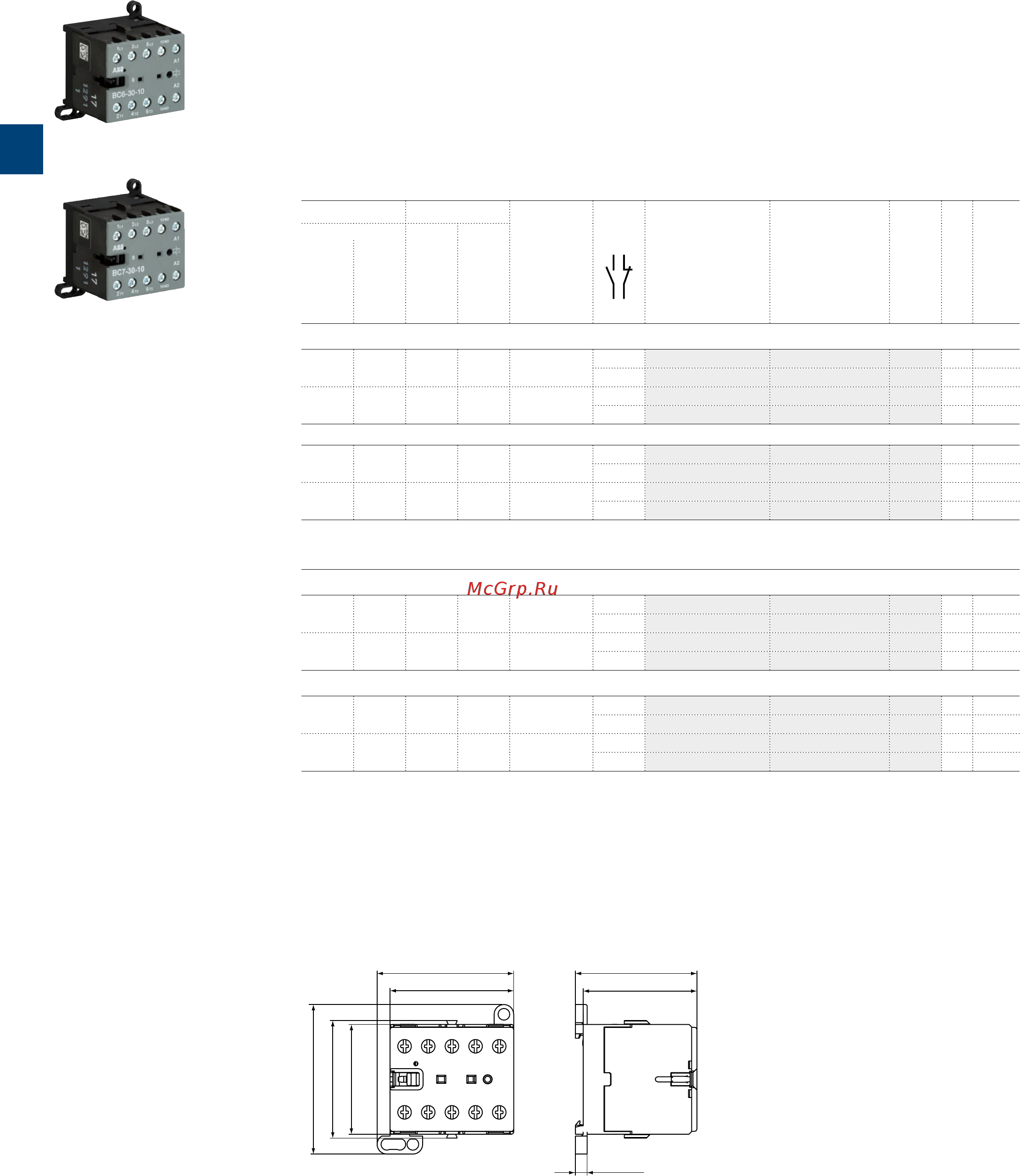

BC6, BC7 3-pole interface mini contactors – with screw terminals
4 to 5.5 kW
DC operated
Description
BC6, BC7 3-pole interface mini contactors are compact control products mainly used for switching resis-
tive or motor loads up to 690 V AC.
These contactors are designed with:
– 3 main poles and one built-in auxiliary contact
– control circuit: DC operated, very low coil consumption. Suitable for direct control by PLC outputs
– hum-free coil
– no auxiliary contact block permitted for mounting
– designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control
circuit voltage
U
C
Auxiliary
contacts
fitted
Type Order code
Pkg
qty
Weight
(1 pce)
Rated operational 3-phase
motor
rating
480 V
General
use
rating
power
400 V
AC-3
current
θ ≤ 40 °C
AC-1
kW A hp V DC kg
DC operation 24 V / 1.4 W
4 20 3 300 V /
12 A
24 1 0 BC6-30-10-1.4-81 GJL1213001R8101 10 0.175
0 1 BC6-30-01-1.4-81 GJL1213001R8011 10 0.175
5.5 20 5 600 V /
16 A
24 1 0 BC7-30-10-1.4-81 GJL1313001R8101 10 0.175
0 1 BC7-30-01-1.4-81 GJL1313001R8011 10 0.175
DC operation 17 … 32 V / 2.4 W
4 20 3 300 V /
12 A
17 ... 32 1 0 BC6-30-10-2.4-51 GJL1213001R5101 10 0.175
0 1 BC6-30-01-2.4-51 GJL1213001R5011 10 0.175
5.5 20 5 600 V /
16 A
17 ... 32 1 0 BC7-30-10-2.4-51 GJL1313001R5101 10 0.175
0 1 BC7-30-01-2.4-51 GJL1313001R5011 10 0.175
Connection to PLCs with integrated protective circuit
DC operation 24 V / 1.7 W
4 20 3 300 V /
12 A
24 1 0 B6S-30-10-1.7-71 GJL1213001R7101 10 0.175
0 1 B6S-30-01-1.7-71 GJL1213001R7011 10 0.175
5.5 20 5 600 V /
16 A
24 1 0 B7S-30-10-1.7-71 GJL1313001R7101 10 0.175
0 1 B7S-30-01-1.7-71 GJL1313001R7011 10 0.175
DC operation 17 … 32 V / 2.8 W
4 20 3 300 V /
12 A
17 ... 32 1 0 B6S-30-10-2.8-72 GJL1213001R7102 10 0.175
0 1 B6S-30-01-2.8-72 GJL1213001R7012 10 0.175
5.5 20 5 600 V /
16 A
17 ... 32 1 0 B7S-30-10-2.8-72 GJL1313001R7102 10 0.175
0 1 B7S-30-01-2.8-72 GJL1313001R7012 10 0.175
Other types on request
Main dimensions mm, inches
47.5 1.87"
52.5 2.07"
57.5 2.26"
42.2 1.66"
45.2 1.78"
4.5 0.18"
43.7 1.72"
46.7 1.84"
2CDC212001F0011
BC6, BC7
2CDC211040F0011
BC6-30-10
2CDC211013F0011
BC7-30-10
3
