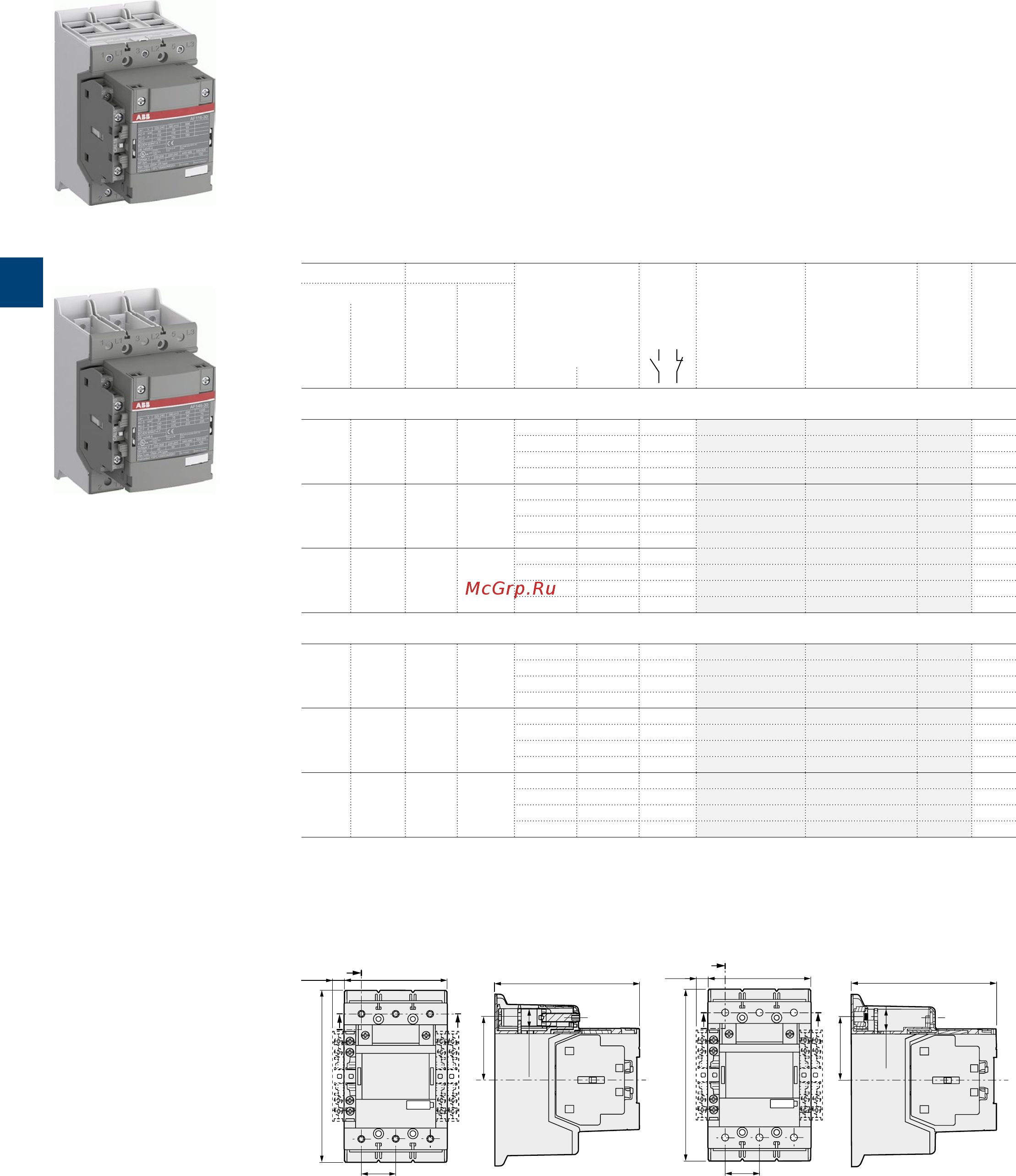

1SFC101090C0201 - Rev. D
5/40 | ABB Motor protection and control - short form catalog
1SFC101001V0001
AF146-30-11
1SFC101008V0001
AF146-30-11B
AF116 ... AF146 3-pole contactors
55 to 75kW
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts
Main dimensions mm, inches
SECTION E-E
55.5 0.22"
90 3.54"
19.5 4.96"
126 4.96"
30 1.18"
D
D
E
150
5.91"
10
0.39"
E
SECTION E-E
55.5 2.18"
19.5 0.77"
126 4.96"
90 3.54"
150
5.91"
30 1.18"
D
D
10
0.39"
AF116, AF140, AF146-30-11 AF116, AF140, AF146-30-11B
Description
AF116 ... AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to
690VAC, AF146 up to 1000 V AC and AF116 ... AF146 up to 260 V DC. These contactors are of the block
type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250VAC and DC), only 4 coils to cover control voltages between 24...500V 50/60Hz and
20...500VDC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Ordering details
IEC UL / CSA Rated control ircuit
voltage
Uc min. ... Uc max.
Auxiliary
contacts
fitted
Type Order code Weight
Pkg
(1 pce)
Rated operational 3-phase
motor
rating
480V
General
use
rating
600VAC
(1)
power
400V
AC-3
current
θ ≤ 40°C
AC-1
kW A hp A V 50/60Hz V DC kg
For connection with built-in cable clamps
55
160
75
160
24...60 20...60 1 1
AF116-30-11-11 1SFL427001R1111 1.750
48...130 48...130 1 1
AF116-30-11-12 1SFL427001R1211 1.750
100...250 100...250 1 1
AF116-30-11-13 1SFL427001R1311 1.750
250...500 250...500 1 1
AF116-30-11-14 1SFL427001R1411 1.750
75
200
100
200
24...60 20...60 1 1
AF140-30-11-11 1SFL447001R1111 1.750
48...130 48...130 1 1
AF140-30-11-12 1SFL447001R1211 1.750
100...250 100...250 1 1
AF140-30-11-13 1SFL447001R1311 1.750
250...500 250...500 1 1
AF140-30-11-14 1SFL447001R1411 1.750
75
225
100
200
24...60 20...60 1 1
AF146-30-11-11 1SFL467001R1111 1.750
48...130 48...130 1 1
AF146-30-11-12 1SFL467001R1211 1.750
100...250 100...250 1 1
AF146-30-11-13 1SFL467001R1311 1.750
250...500 250...500 1 1
AF146-30-11-14 1SFL467001R1411 1.750
With bar connections
55
160
75
160
24...60 20...60 1 1
AF116-30-11B-11 1SFL427002R1111 1.500
48...130 48...130 1 1
AF116-30-11B-12 1SFL427002R1211 1.500
100...250 100...250 1 1
AF116-30-11B-13 1SFL427002R1311 1.500
250...500 250...500 1 1
AF116-30-11B-14 1SFL427002R1411 1.500
75
200
100
200
24...60 20...60 1 1
AF140-30-11B-11 1SFL447002R1111 1.500
48...130 48...130 1 1
AF140-30-11B-12 1SFL447002R1211 1.500
100...250 100...250 1 1
AF140-30-11B-13 1SFL447002R1311 1.500
250...500 250...500 1 1
AF140-30-11B-14 1SFL447002R1411 1.500
75
225
100
200
24...60 20...60 1 1
AF146-30-11B-11 1SFL467002R1111 1.500
48...130 48...130 1 1
AF146-30-11B-12 1SFL467002R1211 1.500
100...250 100...250 1 1
AF146-30-11B-13 1SFL467002R1311 1.500
250...500 250...500 1 1
AF146-30-11B-14 1SFL467002R1411 1.500
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
5
