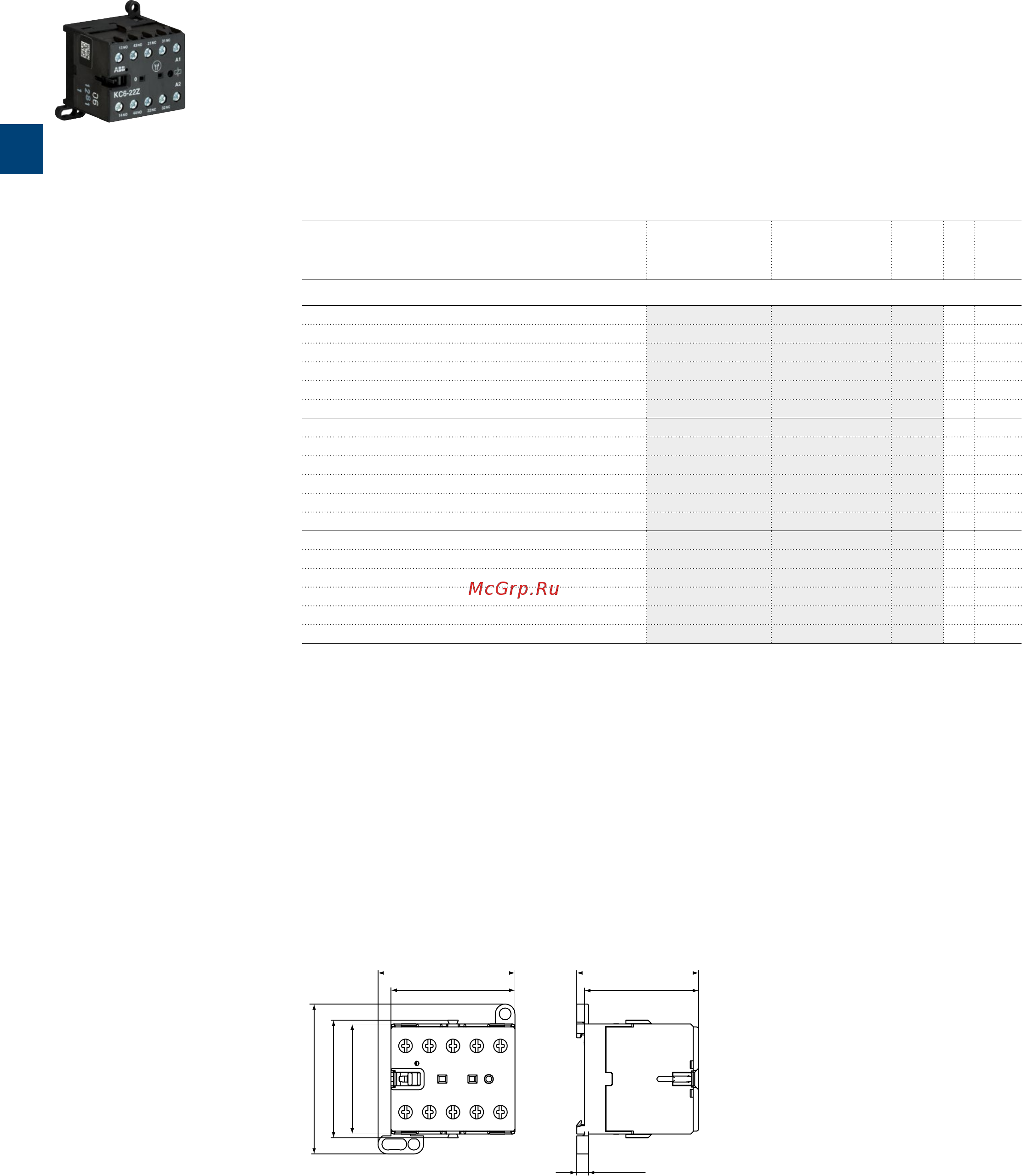

![ABB ASL09-30-10-81 [52/202] Kc6 dc operated](/views2/1556191/page52/bg34.png)
2CDC102012C0201
3/14 | ABB Motor protection and control - short form catalog
KC6 4-pole mini contactor relays – with screw terminals
DC operated
Description
KC6 4-pole mini-contactor relays are space optimized control products mainly used for control functions
or for small loads up to 4 A.
These contactors are designed with:
– 4-poles with various contact combinations
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
– add-on auxiliary contact blocks for front or side mounting
– designed for rail or wall mounting
Ordering details
Rated control circuit voltage
U
C
Type Order code
Pkg
qty
Weight
(1 pce)
V DC kg
KC6 4-pole mini contactor relays
12 KC6-22Z-07 GJH1213001R0227 10 0.175
24 KC6-22Z-01 GJH1213001R0221 10 0.175
48 KC6-22Z-16 GJH1213001R1226 10 0.175
60 KC6-22Z-03 GJH1213001R0223 10 0.175
110 ... 125 KC6-22Z-04 GJH1213001R0224 10 0.175
220 ... 240 KC6-22Z-05 GJH1213001R0225 10 0.175
12 KC6-31Z-07 GJH1213001R0317 10 0.175
24 KC6-31Z-01 GJH1213001R0311 10 0.175
48 KC6-31Z-16 GJH1213001R1316 10 0.175
60 KC6-31Z-03 GJH1213001R0313 10 0.175
110 ... 125 KC6-31Z-04 GJH1213001R0314 10 0.175
220 ... 240 KC6-31Z-05 GJH1213001R0315 10 0.175
12 KC6-40E-07 GJH1213001R0407 10 0.175
24 KC6-40E-01 GJH1213001R0401 10 0.175
48 KC6-40E-16 GJH1213001R1406 10 0.175
60 KC6-40E-03 GJH1213001R0403 10 0.175
110 ... 125 KC6-40E-04 GJH1213001R0404 10 0.175
220 ... 240 KC6-40E-05 GJH1213001R0405 10 0.175
Other types on request
Main dimensions mm, inches
47.5 1.87"
52.5 2.07"
57.5 2.26"
42.2 1.66"
45.2 1.78"
4.5 0.18"
43.7 1.72"
46.7 1.84"
2CDC212001F0011
KC6
2CDC211016F0011
KC6-22Z
3
