1SFC101199C0201 - Rev. B
5/60 | ABB Motor protection and control - short form catalog

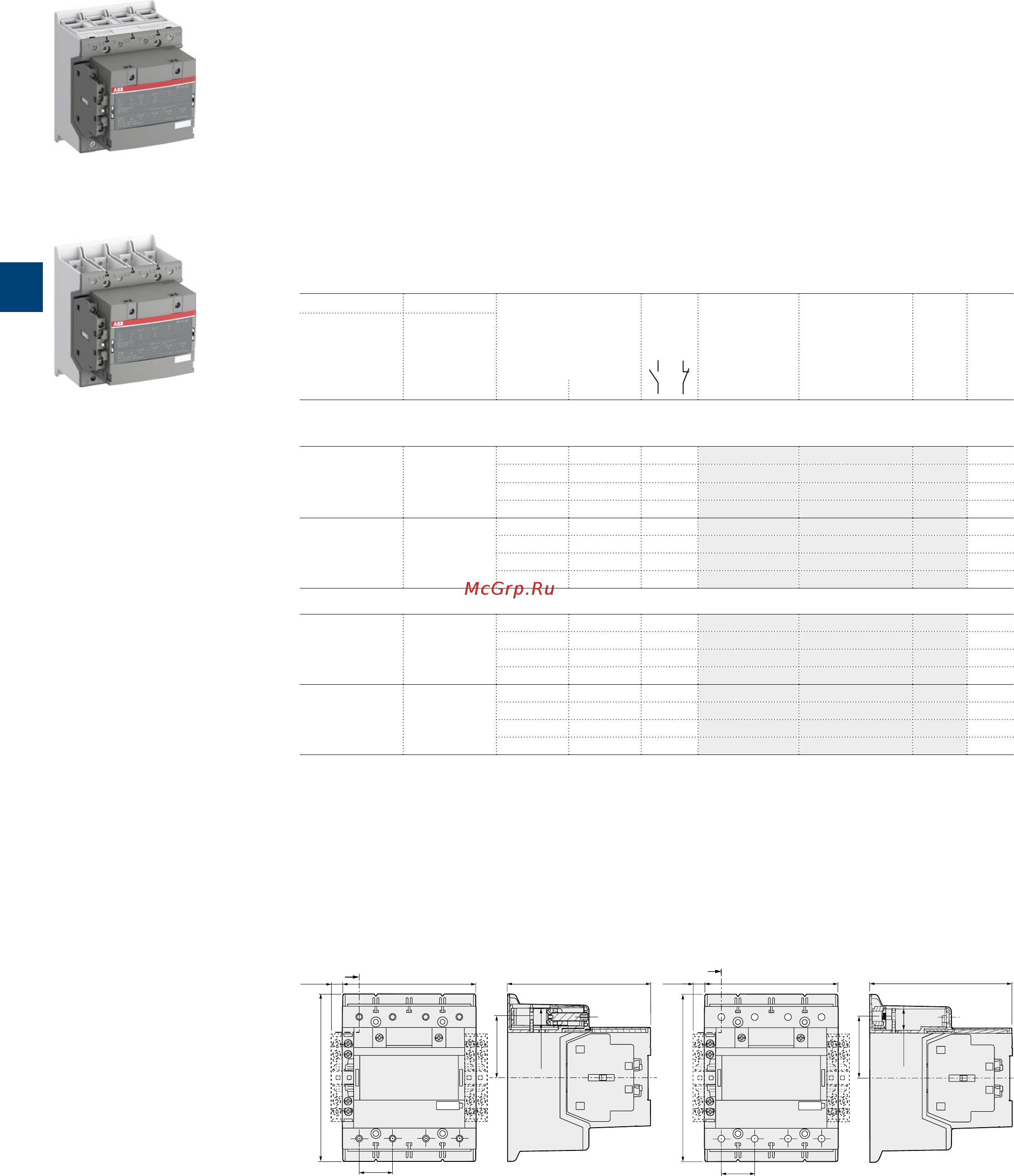

AF116 … AF140 4-pole contactors
160 to 200 A AC-1
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts
Description
AF116 ... AF140 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads
(i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 350 V DC. These
contactors are of the block type design with 4 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60 Hz and
20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Ordering details
IEC UL / CSA Rated control circuit
voltage
Uc min. ... Uc max.
Auxiliary
contacts
fitted
Type
(1)
Order code Weight
Pkg
(1 pce)
Rated operational
current
θ ≤ 40 °C
AC-1
General use
rating
600 V AC
A A V 50/60 Hz V DC kg
4 N.O. main poles
For connection with built-in cable clamps
160 160 24...60 20...60 1 1 AF116-40-11-11 1SFL427101R1111 2.270
48...130 48...130 1 1 AF116-40-11-12 1SFL427101R1211 2.270
100...250 100...250 1 1 AF116-40-11-13 1SFL427101R1311 2.270
250...500 250...500 1 1 AF116-40-11-14 1SFL427101R1411 2.270
200 175 24...60 20...60 1 1 AF140-40-11-11 1SFL447101R1111 2.270
48...130 48...130 1 1 AF140-40-11-12 1SFL447101R1211 2.270
100...250 100...250 1 1 AF140-40-11-13 1SFL447101R1311 2.270
250...500 250...500 1 1 AF140-40-11-14 1SFL447101R1411 2.270
With bar connections
160 160 24...60 20...60 1 1 AF116-40-11B-11 1SFL427102R1111 2.170
48...130 48...130 1 1 AF116-40-11B-12 1SFL427102R1211 2.170
100...250 100...250 1 1 AF116-40-11B-13 1SFL427102R1311 2.170
250...500 250...500 1 1 AF116-40-11B-14 1SFL427102R1411 2.170
200 175 24...60 20...60 1 1 AF140-40-11B-11 1SFL447102R1111 2.170
48...130 48...130 1 1 AF140-40-11B-12 1SFL447102R1211 2.170
100...250 100...250 1 1 AF140-40-11B-13 1SFL447102R1311 2.170
250...500 250...500 1 1 AF140-40-11B-14 1SFL447102R1411 2.170
(1) For other auxiliary contacts arrangements, please contact your ABB local organization.
Main dimensions mm, inches
SECTION A-A
55.5 0.22"
19.5 4.96"
30 1.18"
A
150
5.91"
10
0.39"
120 4.72"
128 5.04"
SECTION A-A
55.5 0.22"
19.5 4.96"
30 1.18"
A
150
5.91"
10 0.39"
120 4.72"
128 5.04"
A
SECTION A-A
55.5 2.18"
19.5 0.77"
150
5.91"
30 1.18"
10
0.39"
128 5.04"
120 4.72"
A
SECTION A-A
55.5 2.18"
19.5 0.77"
150
5.91"
30 1.18"
10 0.39"
128 5.04"
120 4.72"
AF116, AF140-40-11 AF116, AF140-40-11B
AF140-40-11
AF140-40-11B
1SFC101154V00011SFC101192V0001
