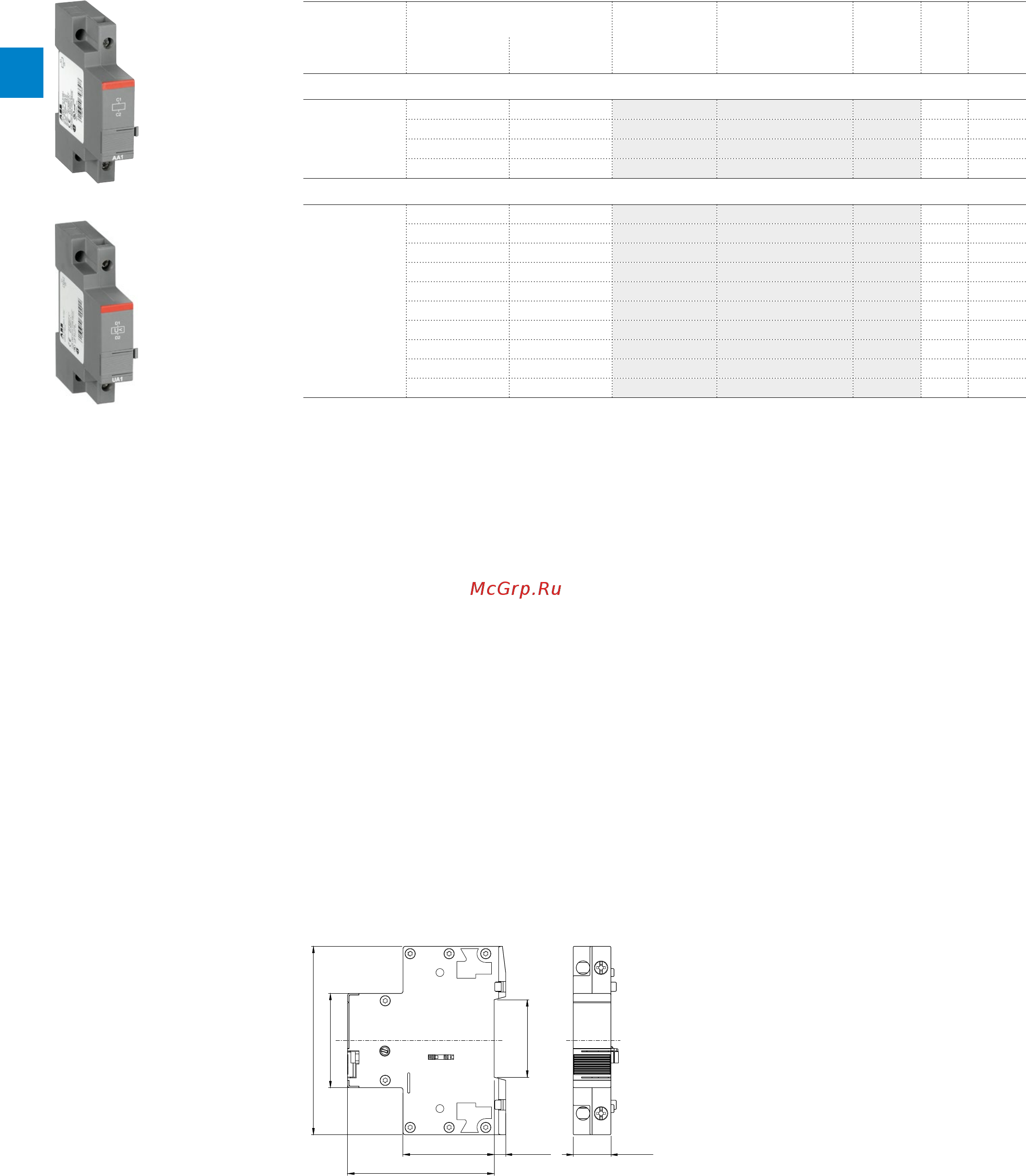

2/18 | ABB Motor protection and control - short form catalog
MS116, MS132, MS165, MO132, MO165, MS132-T
Main accessories
Ordering details
Suitable for Rated control supply voltage Type Order code Pkg
qty
Weight
(1 pce)
50 Hz
V AC
60 Hz
V AC pcs kg
Shunt trips – mountable on the left
MS116, MS132,
MS165, MO132,
MO165, MS132-T
20 ... 24 20 ... 24 AA1-24 1SAM201910R1001 1 0.100
110 110 AA1-110 1SAM201910R1002 1 0.100
200 ... 240 200 ... 240 AA1-230 1SAM201910R1003 1 0.100
350 ... 415 350 ... 415 AA1-400 1SAM201910R1004 1 0.100
Undervoltage releases – mountable on the left
MS116, MS132,
MS165, MO132,
MO165, MS132-T
20 24 UA1-20 1SAM201904R1010 1 0.100
24 - UA1-24 1SAM201904R1001 1 0.100
48 - UA1-48 1SAM201904R1002 1 0.100
60 - UA1-60 1SAM201904R1003 1 0.100
110 120 UA1-110 1SAM201904R1004 1 0.100
- 208 UA1-208 1SAM201904R1008 1 0.100
230 240 UA1-230 1SAM201904R1005 1 0.100
400 - UA1-400 1SAM201904R1006 1 0.100
415 480 UA1-415 1SAM201904R1007 1 0.100
- 575 UA1-575 1SAM201904R1009 1 0.100
1SBC101211F0014
AA1-24
1SBC101212F0014
UA1-24
Main dimensions mm, inches
90
45
5.5 43.5
70
37
18
3.54"
1.77"
1.71"
2.76"
0.22"
1.46"
0.71"
2CDC242002F0012
AA1, UA1
2
Time) Time) Time)
