1SBC101740S0201 - Rev. A
5/36 | ABB Motor protection and control - short form catalog

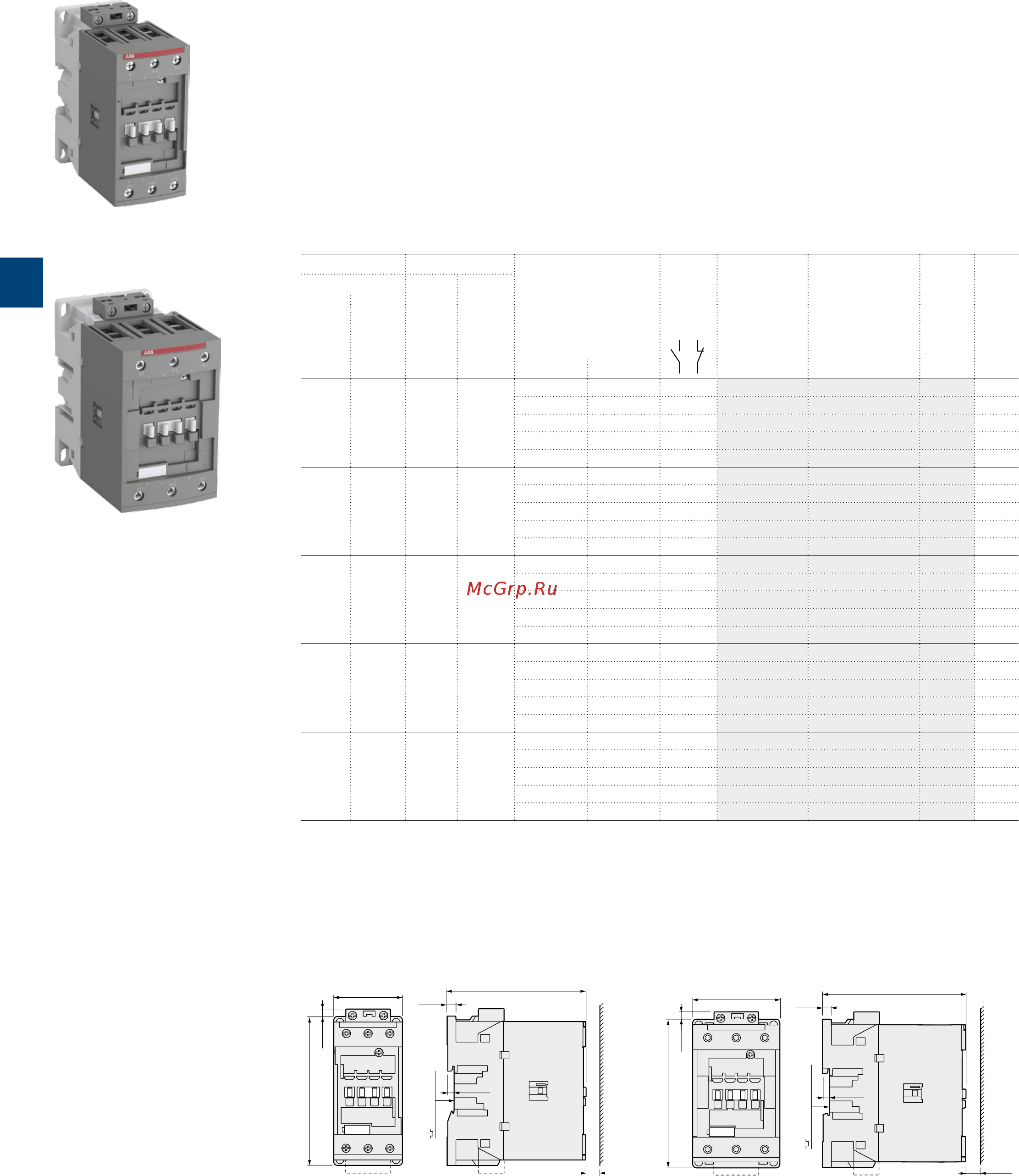

AF40... AF96 3-pole contactors
18.5to45kW
AC/DC operated
Description
AF40... AF96contactors are mainly used for controlling3-phase motors and power circuits up to690VAC
and220VDC. These contactors are of the block type design with3main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g.100...250VAC and DC), only 4 control voltage ranges covering24...500V50/60Hz and
20...500VDC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening.
– built-in surge suppression
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL / CSA Rated control circuit
voltage
Uc min. … Uc max.
Auxiliary
contacts
fitted
Type
(1)
Order code Weight
Pkg
(1 pce)
Rated operational
3-phase
motor
rating
480 V
General
use
rating
600VAC
power
400 V
AC-3
current
θ ≤ 40 °C
AC-1
kW A hp A V 50/60Hz V DC kg
18.5 70 30 60 24...60 - 0 0 AF40-30-00-41 1SBL347001R4100 0.970
24...60 20...60 (2) 0 0 AF40-30-00-11 1SBL347001R1100 0.970
48...130 48...130 0 0 AF40-30-00-12 1SBL347001R1200 0.970
100...250 100...250 0 0 AF40-30-00-13 1SBL347001R1300 0.950
250...500 250...500 0 0 AF40-30-00-14 1SBL347001R1400 0.950
22 100 40 80 24...60 - 0 0 AF52-30-00-41 1SBL367001R4100 0.970
24...60 20...60 (2) 0 0 AF52-30-00-11 1SBL367001R1100 0.970
48...130 48...130 0 0 AF52-30-00-12 1SBL367001R1200 0.970
100...250 100...250 0 0 AF52-30-00-13 1SBL367001R1300 0.950
250...500 250...500 0 0 AF52-30-00-14 1SBL367001R1400 0.950
30 105 50 90 24...60 - 0 0 AF65-30-00-41 1SBL387001R4100 0.970
24...60 20...60 (2) 0 0 AF65-30-00-11 1SBL387001R1100 0.970
48...130 48...130 0 0 AF65-30-00-12 1SBL387001R1200 0.970
100...250 100...250 0 0 AF65-30-00-13 1SBL387001R1300 0.950
250...500 250...500 0 0 AF65-30-00-14 1SBL387001R1400 0.950
37 125 60 105 24...60 - 0 0 AF80-30-00-41 1SBL397001R4100 1.220
24...60 20...60 (2) 0 0 AF80-30-00-11 1SBL397001R1100 1.220
48...130 48...130 0 0 AF80-30-00-12 1SBL397001R1200 1.220
100...250 100...250 0 0 AF80-30-00-13 1SBL397001R1300 1.170
250...500 250...500 0 0 AF80-30-00-14 1SBL397001R1400 1.170
45 130 60 115 24...60 - 0 0 AF96-30-00-41 1SBL407001R4100 1.220
24...60 20...60 (2) 0 0 AF96-30-00-11 1SBL407001R1100 1.220
48...130 48...130 0 0 AF96-30-00-12 1SBL407001R1200 1.220
100...250 100...250 0 0 AF96-30-00-13 1SBL407001R1300 1.170
250...500 250...500 0 0 AF96-30-00-14 1SBL407001R1400 1.170
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
(2) AF..-30-..-11 not suitable for direct control by PLC-output.
Main dimensions mm, inches
1SBC101014V0014
AF40-30-00
1SBC101016V0014
AF80-30-00
111 4.37"
7 0.28"
6 0.24"
55 2.17"
119.5 4.70"
10 0.39"
35 mm
EN/IEC 60715
5.5 0.22"
5
.
5
0.22
"
111 4.37"
7 0.28"
6 0.24"
55 2.17"
119.5 4.70"
10 0.39"
35 mm
EN/IEC 60715
5.5 0.22"
5
.
5
0.22
"
AF40, AF52, AF65
6 0.24"
119.5 4.70"
70 2.76"
116 4.57"
7 0.28"
10 0.39"
5.5 0.22"
35 x 15 mm EN/IEC 60715
5.5 0.22
"
7 0.28"
10
5.5 0.22"
35 x 15 mm EN/IEC 60715
5.5 0.22
"
AF80, AF96
5
