AF116...AF370 3-pole contactors
with 1 N.O. + 1 N.C. auxiliary contacts
Main accessories
Ordering details (1)
For contactors Auxiliary
contacts
Type Order code Pkg
qty
Weight
(1 pce)
kg

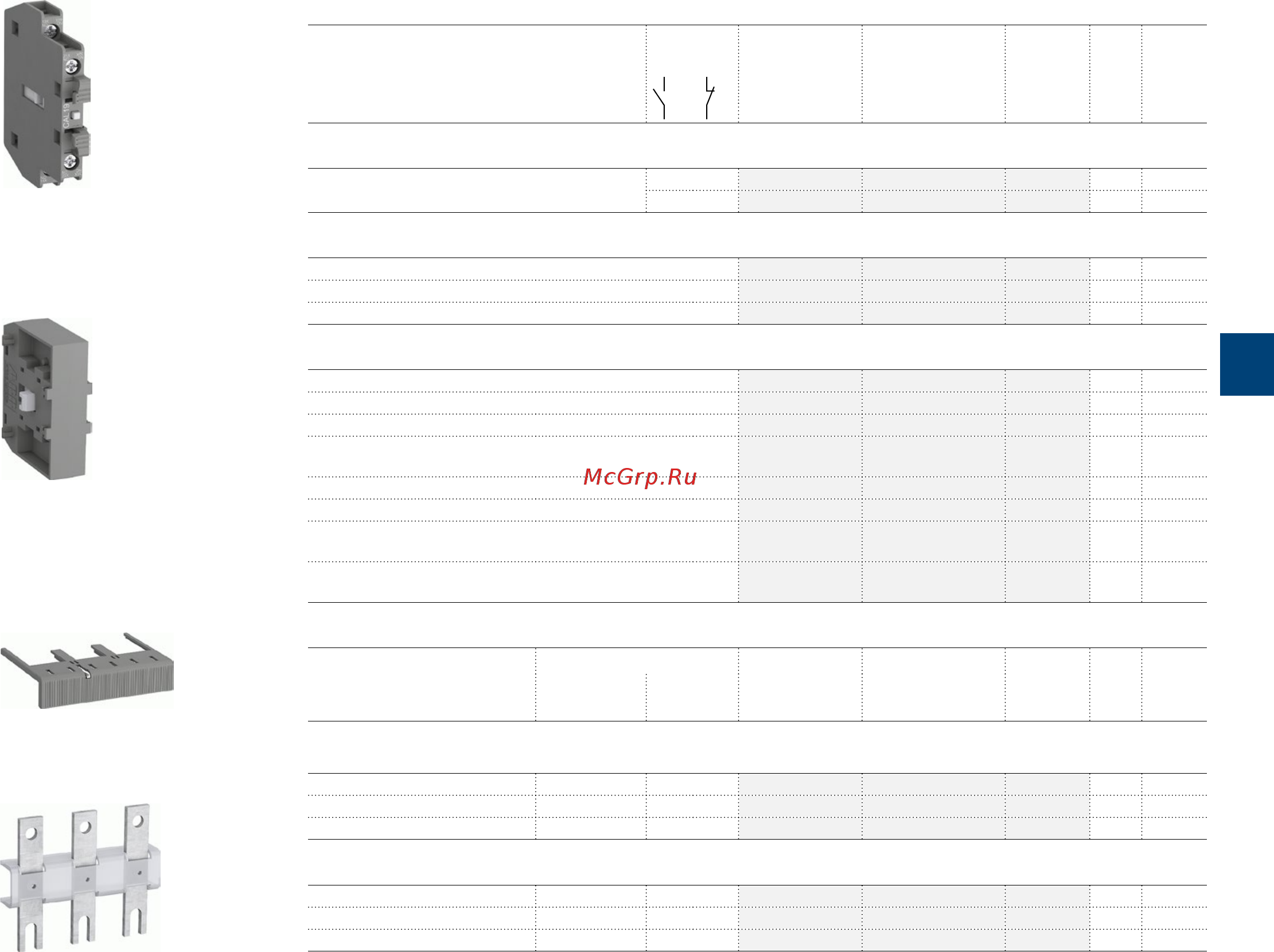

Side-mounted instantaneous auxiliary contact blocks
AF116 ... AF370 1 1 CAL19-11 1SFN010820R1011 2 0.050
1 1 CAL19-11B 1SFN010820R3311 2 0.050
Mechanical interlock unit
AF116 ... AF370
VM19 1SFN030300R1000 1 0.054
AF116 ... AF146 and AF190, AF205
VM140/190 1SFN034403R1000 1 0.088
AF190, AF205 and AF265 ... AF370
VM205/265 1SFN035203R1000 1 0.090
Terminal shrouds
AF116 ... AF146, with compression lugs
LT140-30L 1SFN124203R1000
2 0.070
AF190, AF205, with cable clamps
LT205-30C 1SFN124801R1000
2 0.050
AF190, AF205, with compression lugs
LT205-30L 1SFN124803R1000
2 0.220
AF190, AF205, with shorting bar or between contactor
and TOL/EOL in DOL-starters
LT205-30Y 1SFN124804R1000
1 0.050
AF265 ... AF370, with cable clamps
LT370-30C 1SFN125401R1000
2 0.035
AF265 ... AF370, with compression lugs
LT370-30L 1SFN125403R1000
2 0.280
AF265 ... AF370, with shorting bar or between contactor
and TOL/EOL in DOL-starters
LT370-30Y 1SFN125404R1000
1 0.075
AF265 ... AF370, for use with extending cable clamps,
ATK300/2 and OZXB4
LT370-30D 1SFN125406R1000
1 0.150
For contactors Dimensions Type Order code Pkg Weight
hole Ø
mm
bar
mm
qty (1 pce)
kg
Terminal enlargements
AF116...AF146
6.5 13 x 3 LW140 1SFN074207R1000 1 0.115
AF190...AF205
10.5 17.5 x 5 LW205 1SFN074807R1000 1 0.260
AF265...AF370
10.5 20 x 5 LW370 1SFN075407R1000 1 0.340
Terminal extension
AF116...AF146
6.5 13 x 3 LX140 1SFN074210R1000 1 0.072
AF190...AF250
8.5 17.5 x 5 LX205 1SFN074810R1000 1 0.180
AF265...AF370
10.5 20 x 5 LX370 1SFN075410R1000 1 0.234
(1) For more information, refer to main catalog "Accessories" section.
1SFC101035V0001
VM19
1SFC101071V0001
CAL19-11
1SFC101041V0001
LT370-30C
1SFC101049V0001
LX140
1SFC101138C0201
ABB Motor protection and control - short form catalog | 5/45
