2CDC107038C0201a

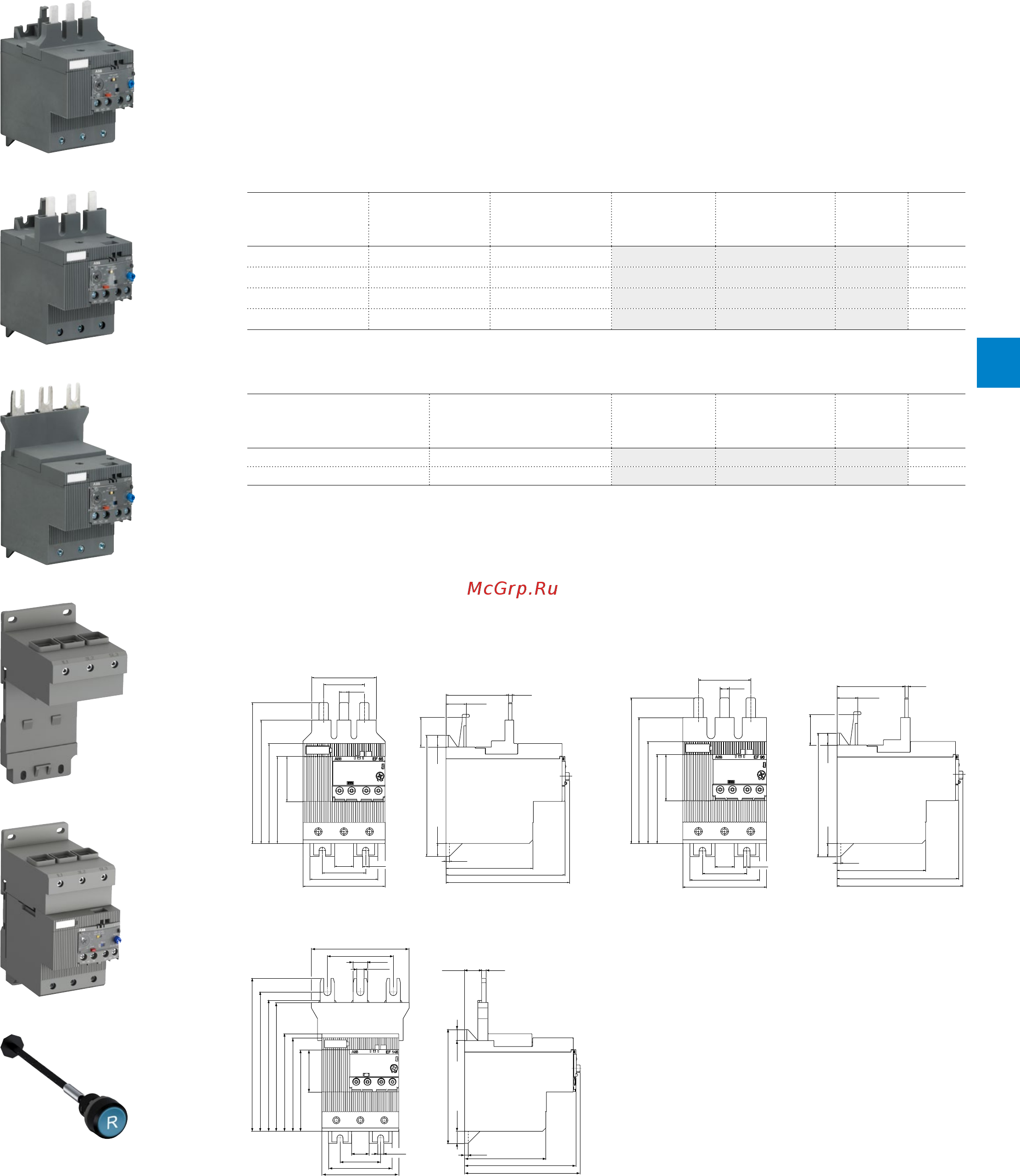

ABB Motor protection and control - short form catalog | 6/11
EF65, EF96, EF146 electronic overload relays – 20 to 150 A
Ordering details
Description
The EF65, EF96 and EF146 are self-supplied electronic overload relays, which means no extra external
supply is needed. It offers reliable protection for motors in the event of overload or phase failure. Easy to
use like a thermal overload relay and compatible with standard motor applications, the electronic overload
relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature
range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature
compensation, trip contact (N.C.), signal contact (N.O.), automatic or manual reset selectable, trip-free
mechanism, STOP and TEST function and a trip indication. The overload relays are connected directly to
the contactors. The EF65, EF96 and EF146 have ATEX certification
1)
.
Ordering details
Setting range Short-circuit
protective device
Trip class Type Order code Weight
(1 pce)
A kg
20 ... 56 160 A, fuse type gG 10E, 20E, 30E EF65-56 1SAX331001R1102 0.821
25 ... 70 160 A, fuse type gG 10E, 20E, 30E EF65-70 1SAX331001R1101 0.821
36 ... 100 200 A, fuse type gG 10E, 20E, 30E EF96-100 1SAX341001R1101 0.802
54 ... 150 315 A, fuse type gG 10E, 20E, 30E EF146-150 1SAX351001R1101 0.879
1)
ATEX is valid for products, produced from week 42, 2014. ATEX certification is valid for EF65-56, produced from week 47, 2015.
Ordering details accessories
Suitable for Description Type Order code Weight
(1 pce)
kg
EF96, TF96 Single mounting kit DB96 1SAZ901901R1001 0.190
EF65, EF96, EF146 Reset push button
2)
KPR-101L 1SFA616162R1014 0.019
2)
Note: for more information see catalog 1SFC151004C0201
2CDC231001F0012
EF65-70
2CDC231002F0012
EF96-100
2CDC231003F0012
EF146-150
2CDC231001V0015
DB96
2CDC231002V0015
DB96 + EF96
Main dimensions mm, inches
58
16
37
70
5.5
53.3 3
17.2
0.39"
103.2
1"
11
3
74
101.4
105.2
74.2
85.2
105.2
120.2
38.4
34.65
55
8
2.28"
0.63"
1.46"
2.76"
0.22"
2.1" 0.12"
0.68"
10
4.06"
25.4
0.43"
0.12"
2.91"
3.99"
4.14"
2.92"
3.35"
4.14"
4.73"
1.51"
1.36"
2.17"
0.31"
2CDC232001F0012
58
5.5
16
37
70
8
43.7
38.4
74.2
85.2
105.2
121.7
56.6 3
17.2
105.2
74
101.4
3
11 10
103.2
25.4
2.28"
0.22"
0.63"
1.46"
2.76"
0.31"
1.72"
1.51"
2.92"
3.35"
4.14"
4.79"
2.23" 0.12"
0.68"
4.14"
2.91"
3.99"
0.12"
0.43" 0.39"
4.06"
1"
2CDC232002F0012
EF65-56 / EF65-70 EF96-100
89.05 3.51"
60.1 2.37"
13 0.5"
6.6 0.26"
5.5 0.22"
139.4 5.49"
15.5 0.61"
4 0.16"
3 0.12"
74 2.91"
101.4 3.99"
105.2 4.14"
70 2.76"
58 2.28"
37 1.46"
16 0.63"
127 5"
117.4 4.62"
38.4 1.51"
74.2 2.92"
85.2 3.35"
88.9 3.5"
103.7 4.08"
11 0.43" 10 0.39"
119.25 4.69"
2CDC232003F0012
EF146-150
1SFC151224F0002
KPR-101L
