2CDC102014C0201
3/16 | ABB Motor protection and control - short form catalog

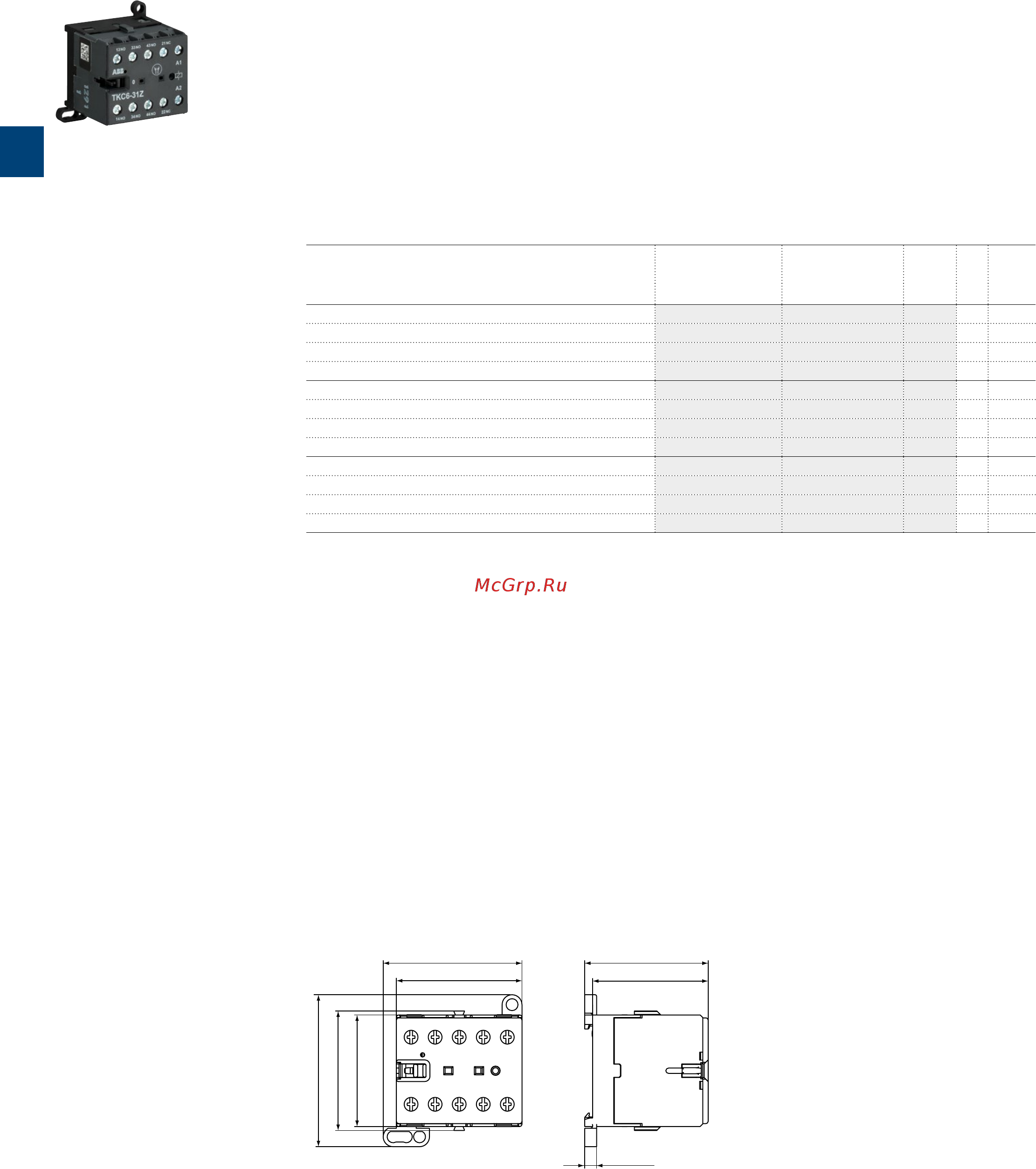

TKC6 4-pole mini contactor relays – with screw terminals
DC operated – large coil voltage range
Description
TKC6 4-pole mini contactors are space optimized control products mainly used for control functions or for
small loads up to 4 A.
These contactors are designed with:
– 4-poles with various contact combinations
– control circuit: DC operated, hum free, low consumption (5 W at pull-in and at holding)
– expanded ambient temperature range -30 … +70 °C and wide range voltage supply
– material is suitable for railway applications
– humfree operating DC coil
– no auxiliary contact block permitted for mounting
– designed for rail or wall mounting
Ordering details
Rated control circuit voltage
U
C min
... U
C max
Type Order code
Pkg
qty
Weight
(1 pce)
V DC kg
17 ... 32 TKC6-22Z-51 GJH1213061R5221 10 0.180
50 ... 90 TKC6-22Z-55 GJH1213061R5225 10 0.180
77 ... 143 TKC6-22Z-62 GJH1213061R6222 10 0.180
140 ... 260 TKC6-22Z-68 GJH1213061R6228 10 0.180
17 ... 32 TKC6-31Z-51 GJH1213061R5311 10 0.180
50 ... 90 TKC6-31Z-55 GJH1213061R5315 10 0.180
77 ... 143 TKC6-31Z-62 GJH1213061R6312 10 0.180
140 ... 260 TKC6-31Z-68 GJH1213061R6318 10 0.180
17 ... 32 TKC6-40E-51 GJH1213061R5401 10 0.180
50 ... 90 TKC6-40E-55 GJH1213061R5405 10 0.180
77 ... 143 TKC6-40E-62 GJH1213061R6402 10 0.180
140 ... 260 TKC6-40E-68 GJH1213061R6408 10 0.180
Other types on request
Main dimensions mm, inches
47.5 1.87"
52.5 2.07"
57.5 2.26"
42.2 1.66"
45.2 1.78"
4.5 0.18"
43.7 1.72"
46.7 1.84"
2CDC212001F0011
TKC6
2CDC211021F0011
TKC6-31Z
3
