2CDC131059C0201
ABB Motor protection and control - short form catalog | 6/15
Thermal and electronic overload relays
General accessories
Description
The wire reset is a general accessory for thermal and electronic overloads relays. In installations which
are difficult to access, like a motor control centre or compact cubical, the accessory allows the user to
remotely reset the overload relays.
The wire reset consists of two parts, the bowden wire with actuator and the holder. The actuator should
be mounted into a door of a panel. The holder will be mounted on the overload relay. The actuator and
holder are connected via the bowden wire.
Ordering details
Suitable for Description Length Type Order code Weight
(1 pce)
mm kg
Holder
TF42, TF65, TF96,
EF19, EF45, EF65,
EF96, EF146,
EF205, EF370,
EF460, EF750
Holder for tool less direct mounting WRH-F 1SAZ701903R1001 0.006
Bowden wire with actuator
WRH-F Bowden wire with actuator,
hole diameter: 7.3 mm,
maximum panel thickness: 12 mm
400 WRB-400 1SAZ701903R1011 0.030
600 WRB-600 1SAZ701903R1012 0.040
1000 WRB-1000 1SAZ701903R1013 0.060
IP54 gasket
WRB-400
WRB-600
WRB-1000
IP54 Panel seal gasket WRBG 1SAZ701903R1030 0.037

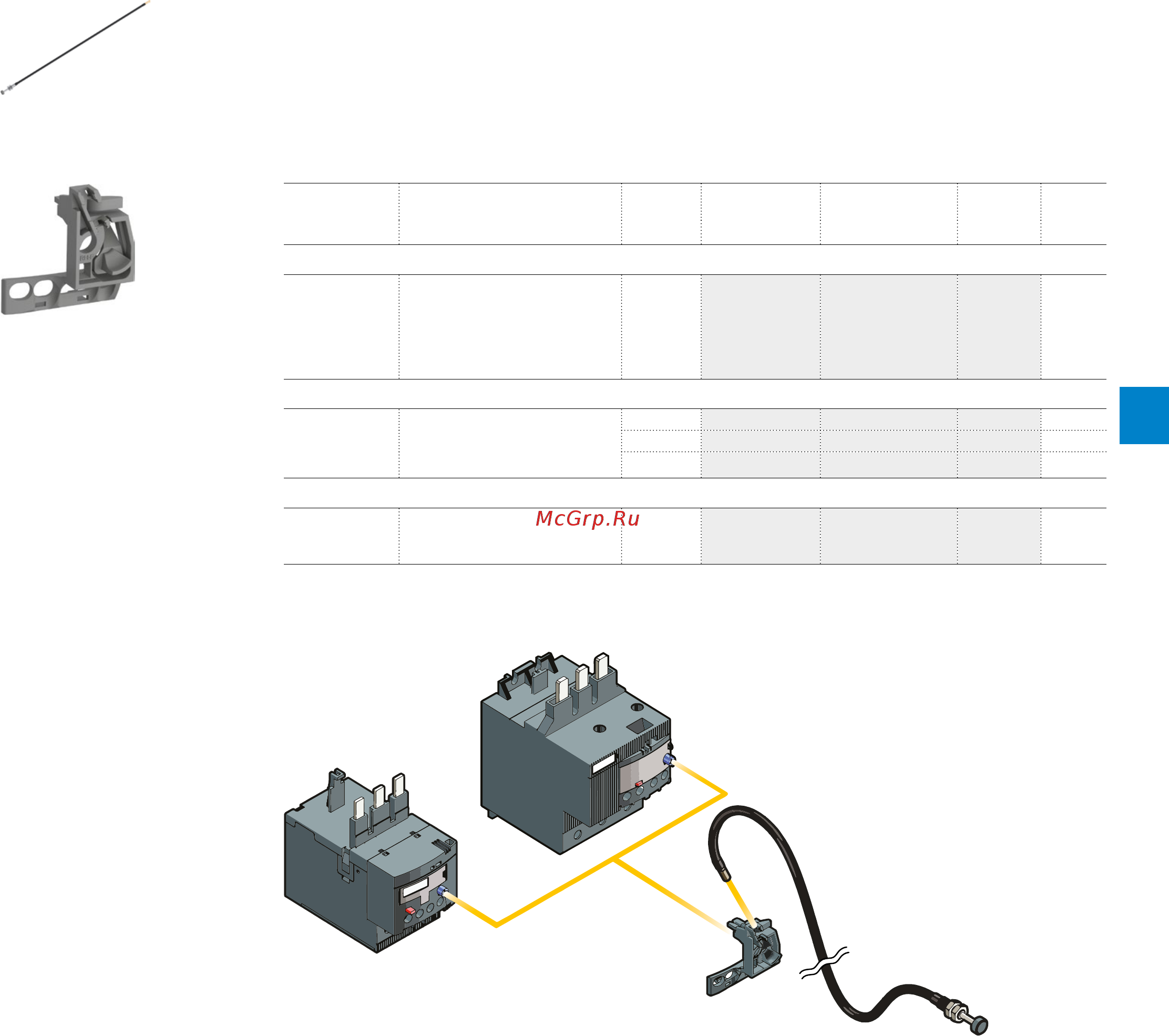

Overload relays with accessory wire reset (WRH, WRB)
WRB-400/600/1000
WRH-F
TF42 ... TF96
EF19 ... EF750
2CDC232015F0013
2CDC231028F0013
WRB-400
2CDC231027F0013
WRH-F
6
