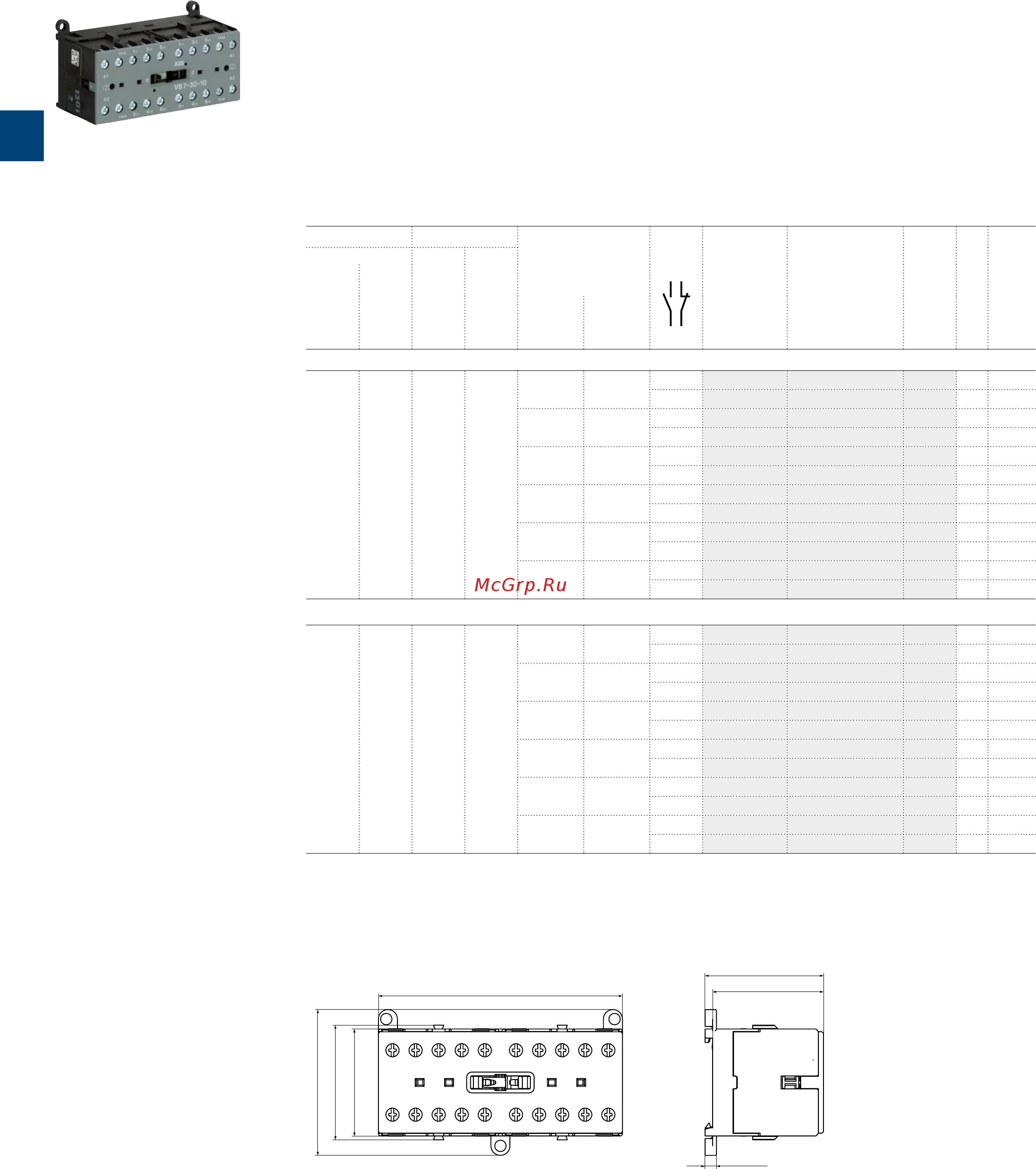

3/6 | ABB Motor protection and control - short form catalog
VB6, VB7 3-pole mini reversing contactors – with screw terminals
4 to 5.5 kW
AC operated
Description
VB6, VB7 3-pole compact design reversing contactors are space optimized control products mainly used
for switching resistive or motor loads up to 690 V AC.
These reversing contactors are designed with:
– built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must be de-
energised for 50 ms at least to prevent phase to phase short circuit on the arc.
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
– hum-free coil
– add-on auxiliary contact blocks for front mounting
– designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control circuit
voltage
U
C
Auxiliary
contacts
fitted
Type Order code
Pkg
qty
Weight
(1 pce)
Rated operational 3-phase
motor
rating
480 V
General
use
rating
power
400 V
AC-3
current
θ ≤ 40 °C
AC-1
50 Hz 60 Hz
kW A hp V AC V AC kg
VB6 mini reversing contactors
4 20 3 300 V /
12 A
24 24 1 0 VB6-30-10-01 GJL1211901R0101 5 0.355
0 1 VB6-30-01-01 GJL1211901R0011 5 0.355
42 42 1 0 VB6-30-10-02 GJL1211901R0102 5 0.355
0 1 VB6-30-01-02 GJL1211901R0012 5 0.355
48 48 1 0 VB6-30-10-03 GJL1211901R0103 5 0.355
0 1 VB6-30-01-03 GJL1211901R0013 5 0.355
110 … 127 110 … 127 1 0 VB6-30-10-84 GJL1211901R8104 5 0.355
0 1 VB6-30-01-84 GJL1211901R8014 5 0.355
220 … 240 220 … 240 1 0 VB6-30-10-80 GJL1211901R8100 5 0.355
0 1 VB6-30-01-80 GJL1211901R8010 5 0.355
380 … 415 380 … 415 1 0 VB6-30-10-85 GJL1211901R8105 5 0.355
0 1 VB6-30-01-85 GJL1211901R8015 5 0.355
VB7 mini reversing contactors
5.5 20 5 600 V /
16 A
24 24 1 0 VB7-30-10-01 GJL1311901R0101 5 0.355
0 1 VB7-30-01-01 GJL1311901R0011 5 0.355
42 42 1 0 VB7-30-10-02 GJL1311901R0102 5 0.355
0 1 VB7-30-01-02 GJL1311901R0012 5 0.355
48 48 1 0 VB7-30-10-03 GJL1311901R0103 5 0.355
0 1 VB7-30-01-03 GJL1311901R0013 5 0.355
110 … 127 110 … 127
1 0 VB7-30-10-84 GJL1311901R8104 5 0.355
0 1 VB7-30-01-84 GJL1311901R8014 5 0.355
220 … 240 220 … 240
1 0 VB7-30-10-80 GJL1311901R8100 5 0.355
0 1 VB7-30-01-80 GJL1311901R8010 5 0.355
380 … 415 380 … 415
1 0 VB7-30-10-85 GJL1311901R8105 5 0.355
0 1 VB7-30-01-85 GJL1311901R8015 5 0.355
Other types on request
Main dimensions mm, inches
4.5 0.18"
43.7 1.72"
46.7 1.84"
96.2 3.79"
42.2 1.66"
45.2 1.78"
57.5 2.26"
2CDC212005F0011
VB6, VB7
2CDC211006F0011
VB7-30-10
3
