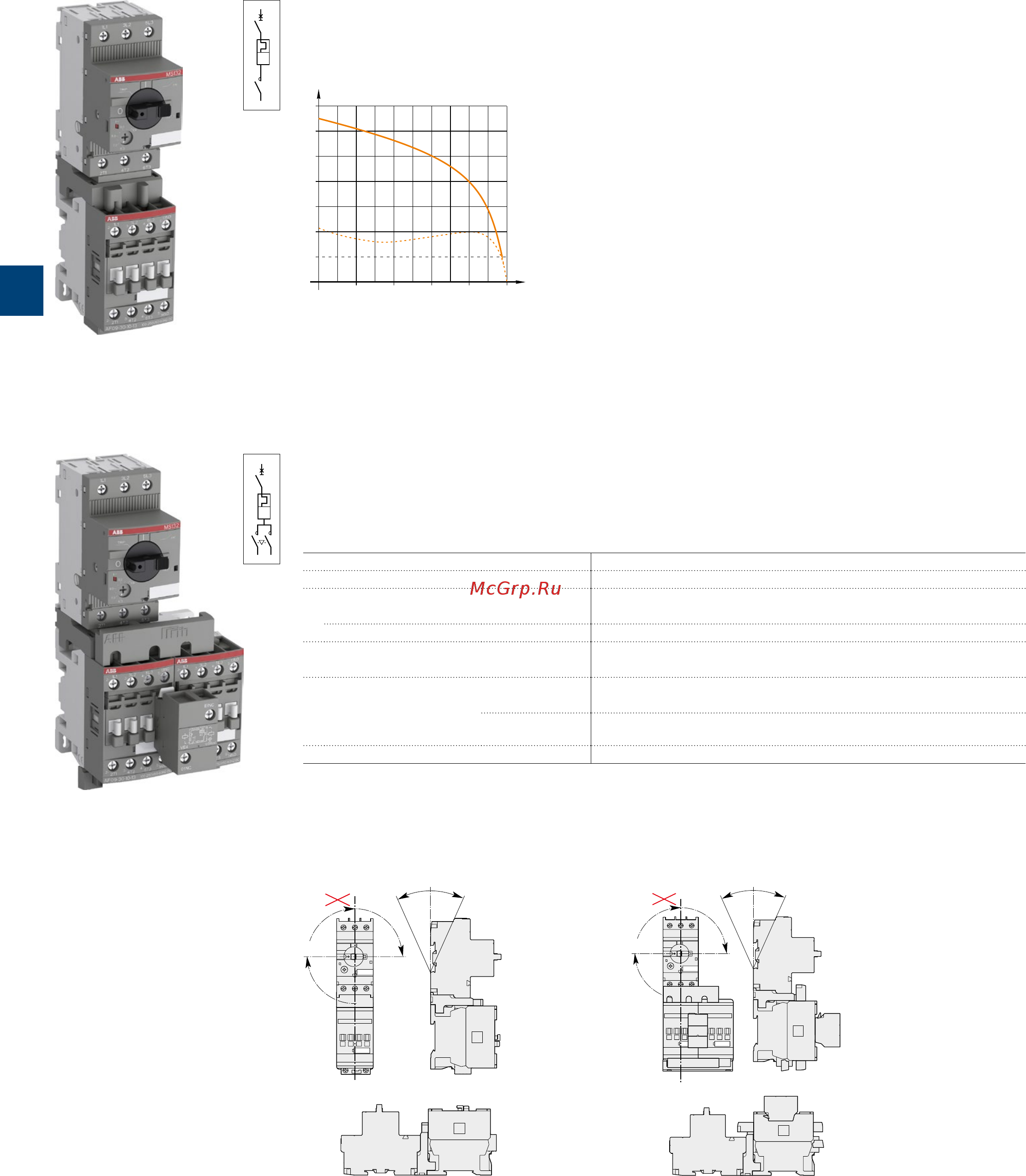

DOL and reversing starters protected by manual motor starters
With AF contactors - open type version in kit form
Application
Full voltage direct-on-line (DOL) starting and reversing starting for controlling three-phase asynchronous
motors is a simple and economic solution characterised by a high starting torque (1.9 to 2.1 times full-speed
torque) and a starting current 5.5 to 7 times nominal current.
I
/
I
n
C
/
C
n
6
5
4
3
2
1
0
7
10 30 60 10080
C
I
I = current
C = torque
In = nominal current
Cn = nominal torque
Coordination types
The contactor and the manual motor starter control and protect motors against overload and short-circuits
according to coordination types 1 and 2 (IEC 60947-4-1 / EN 60947-4-1) defining the anticipated level of
service continuity as follow:
Type 1: In short-circuit conditions, the contactor or starter does not endanger persons or installations and
will not be able to then operate without being repaired or having parts replaced.
Type 2: In short-circuit conditions, the contactor or starter does not endanger persons or installations and
will be able to operate afterwards. The risk of contacts light welding is acceptable.
Main Technical Data
Standards IEC 60947-4-1 / EN 60947-4-1
Rated operational voltage Ue max. 690 V - 50/60 Hz
Rated insulation voltage Ui
acc. to IEC 60947-4-1 690 V
acc. to UL / CSA 600 V
Switching frequency ≤ 15 starts/hour - 80 % max. load factor - with max. 1.5 s starting time
≤ 30 starts/hour - 50 % max. load factor - with max. 1.5 s starting time
Ambient air temperature
Close to the device
use with MS116
≤ 55 °C
use with MS132,
MS165, MS495 ≤ 60 °C
Degree of protection IP20
I >
DOL starter
MS132-10 + BEA16-4 + AF09-30-10
Mounting positions
Pos. 5
Pos. 3
Pos
. 2
Pos. 1
Pos. 1 ± 30°
+30° -30°
Po
s. 4
Pos. 5
Pos. 3
Pos
. 2
Pos. 1 Pos. 1 ± 30°
+30° -30°
Po
s. 4
DOL starters Reversing starters
1SFC101102V0001
I >
Reversing starter
MS132-10 + BEA16-4 + BER16-4
+ VEM4 + AF09-30-10
1SFC101105V0001
1SBC101917S0201 - Rev. A
5/8 | ABB Motor protection and control - short form catalog
5
