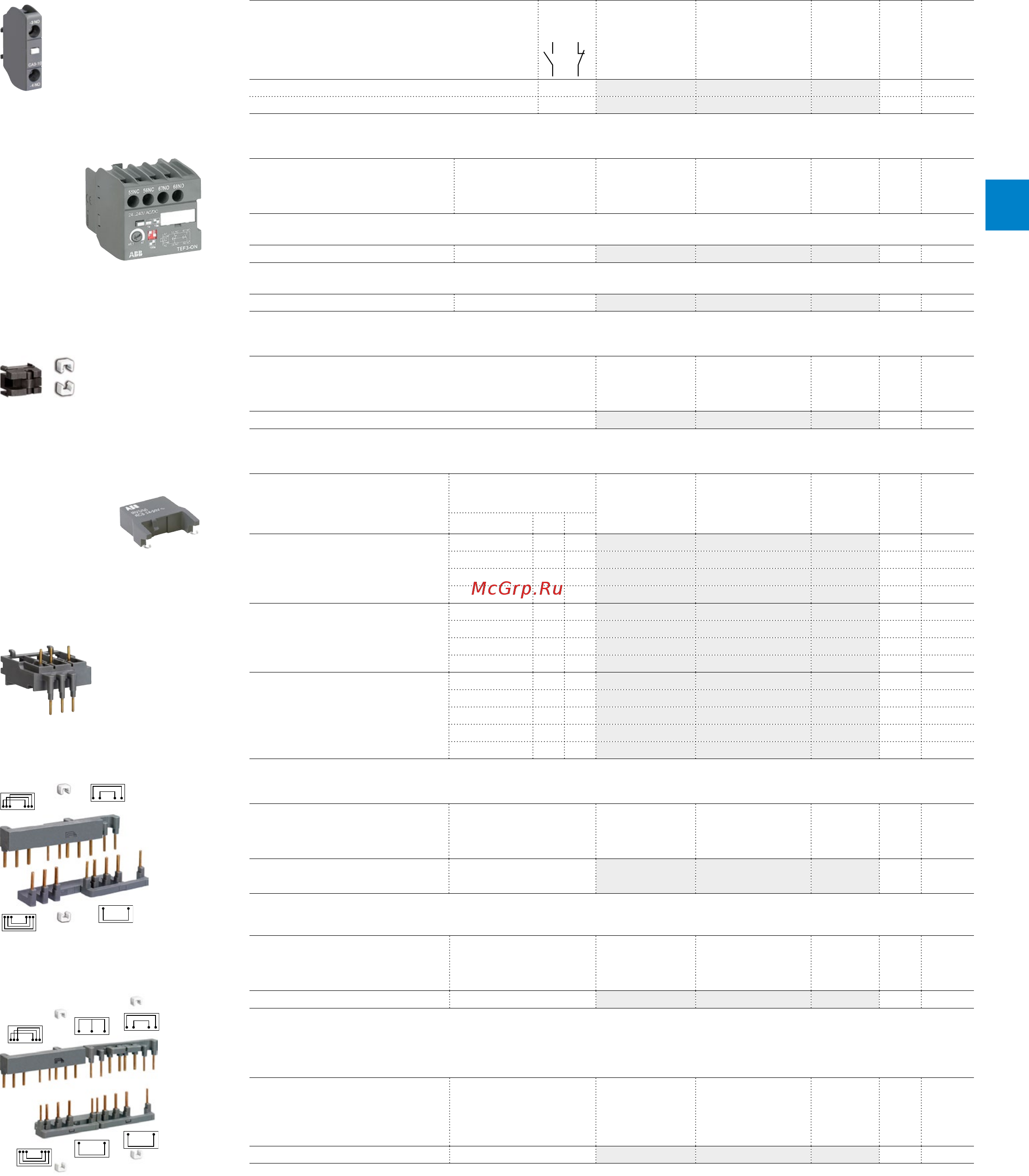

ABB Motor protection and control - short form catalog | 4/13
AS09...AS16 and
ASL09...ASL16 3-pole contactors
Main accessories
Front-mounted instantaneous auxiliary contact blocks
For contactors Auxiliary
contacts
Type Order code Pkg
qty
Weight
(1 pce)
kg
AS09…AS16
1 0 CA3-10 1SBN011010T1010 10 0.011
ASL09…ASL16
0 1 CA3-01 1SBN011010T1001 10 0.011
Front-mounted electronic timer
For contactors Rated control circuit
voltage - Uc
Type Order code Pkg
qty
Weight
(1 pce)
V kg
ON-delay
AS09…AS16, ASL09…ASL16 24...240VAC/DC TEF3-ON 1SBN021012R1000 1 0.065
OFF-delay
AS09…AS16, ASL09…ASL16 24...240VAC/DC TEF3-OFF 1SBN021014R1000 1 0.065
Mechanical interlock unit
For contactors Type Order code Pkg
qty
Weight
(1 pce)
kg
AS09…AS16, ASL09…ASL16 VM3 1SBN031005T1000 10 0.002
Surge suppressors
For contactors Rated control circuit
voltage - Uc
Type Order code Pkg
qty
Weight
(1 pce)
V AC DC
kg
AS09...AS16,
ASL09...ASL16
24...50
● ●
RV5/50 1SBN050010R1000 2 0.015
50...133
● ●
RV5/133 1SBN050010R1001 2 0.015
110...250
● ●
RV5/250 1SBN050010R1002 2 0.015
250...440
● ●
RV5/440 1SBN050010R1003 2 0.015
AS09...AS16 24...50
●
– RC5-1/50 1SBN050100R1000 2 0.012
50...133
●
– RC5-1/133 1SBN050100R1001 2 0.012
110...250
●
– RC5-1/250 1SBN050100R1002 2 0.012
250...440
●
– RC5-1/440 1SBN050100R1003 2 0.012
ASL09...ASL16 12...32 –
●
RT5/32 1SBN050020R1000 2 0.015
25...65 –
●
RT5/65 1SBN050020R1001 2 0.015
50...90 –
●
RT5/90 1SBN050020R1002 2 0.015
77...150 –
●
RT5/150 1SBN050020R1003 2 0.015
150...264 –
●
RT5/264 1SBN050020R1004 2 0.015
Connecting links with manual motor starters
For contactors Manual motor
starter
Type Order code Pkg
qty
Weight
(1 pce)
kg
AS09…AS16 MS116-0.16 ... MS116-16
MS132-0.16 ... MS132-16
BEA16-3 1SBN081006T1000 10 0.019
ASL09…ASL16
Connection sets for reversing contactors
For contactors Mechanical
interlock unit
Type Order code Pkg
qty
Weight
(1 pce)
kg
AS09…AS16, ASL09…ASL16 with or without VM3 BER16C-3 1SBN081012R1000 1 0.035
Note: BER16C-3 connection set includes two BB3 fixing clips, and an electrical interlocking when fitted on contactors with built-in
N.C. auxiliary contacts. BER16C-3 can be used with or without VM3 mechanical interlock unit.
Connection sets for star-delta starting
For contactors Mech. interlock unit
between Star & Delta
contactors
Type Order code Pkg
qty
Weight
(1 pce)
kg
AS09…AS12, ASL09…ASL12 with or without VM3 BEY16C-3 1SBN081018R2000 1 0.041
Note: BEY16C-3 connection set includes two BB3 fixing clips, and an electrical interlocking when fitted on Star and Delta contactors
with built-in N.C. auxiliary contacts. BEY16C-3 can be used with or without VM3 mechanical interlock unit.
1SBC101036F0014
CA3-10
1SBC101337F0014
TEF3-ON
1SBC101069F0014
VM3
1SBC574001F0301
RV5
1SBC101034F0014
BEA16-3
1SBC101070F0014
BEY16C-3
1SBC101071F0014
BER16C-3
