ABB ASL09-30-10-81 [67/202] Asl09 asl16 dc operated

1SBC101334F0014

ASL09-30-32

Description

ASL09 ... ASL16 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC

and 220 V DC.

These contactors are of the block type design with:

– 1st stack with 3 main poles and 1 N.O. built-in auxiliary contact

– 2nd stack with permanently ﬁxed 2 N.O. + 2 N.C. auxiliary contact block. The auxiliary contact elements are

mechanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror contacts

– control circuit: low consumption (3 W at pull-in and holding) DC operated with solid core magnet. Suitable for

direct control by PLC outputs (the polarity on the coil terminals A1+ and A2- must be respected)

– a comprehensive range of accessories.

Ordering details

IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight

Rated operational 3-phase General voltage contacts

power current motor use Uc ﬁtted Pkg

≤ 40 °C rating rating (1) (1 pce)

400 V 480 V 600 V AC

AC-3 AC-1

kW A hp A V DC

4 22 5 20 24 3 2 ASL09-30-32-81 1SBL103001R8132 0.320

5.5 24 7.5 20 24 3 2 ASL12-30-32-81 1SBL113001R8132 0.320

7.5 24 10 20 24 3 2 ASL16-30-32-81 1SBL123001R8132 0.320

Note: for multiple packaging, please contact your ABB local sales organization.

(1) Other control voltages see voltage code table.

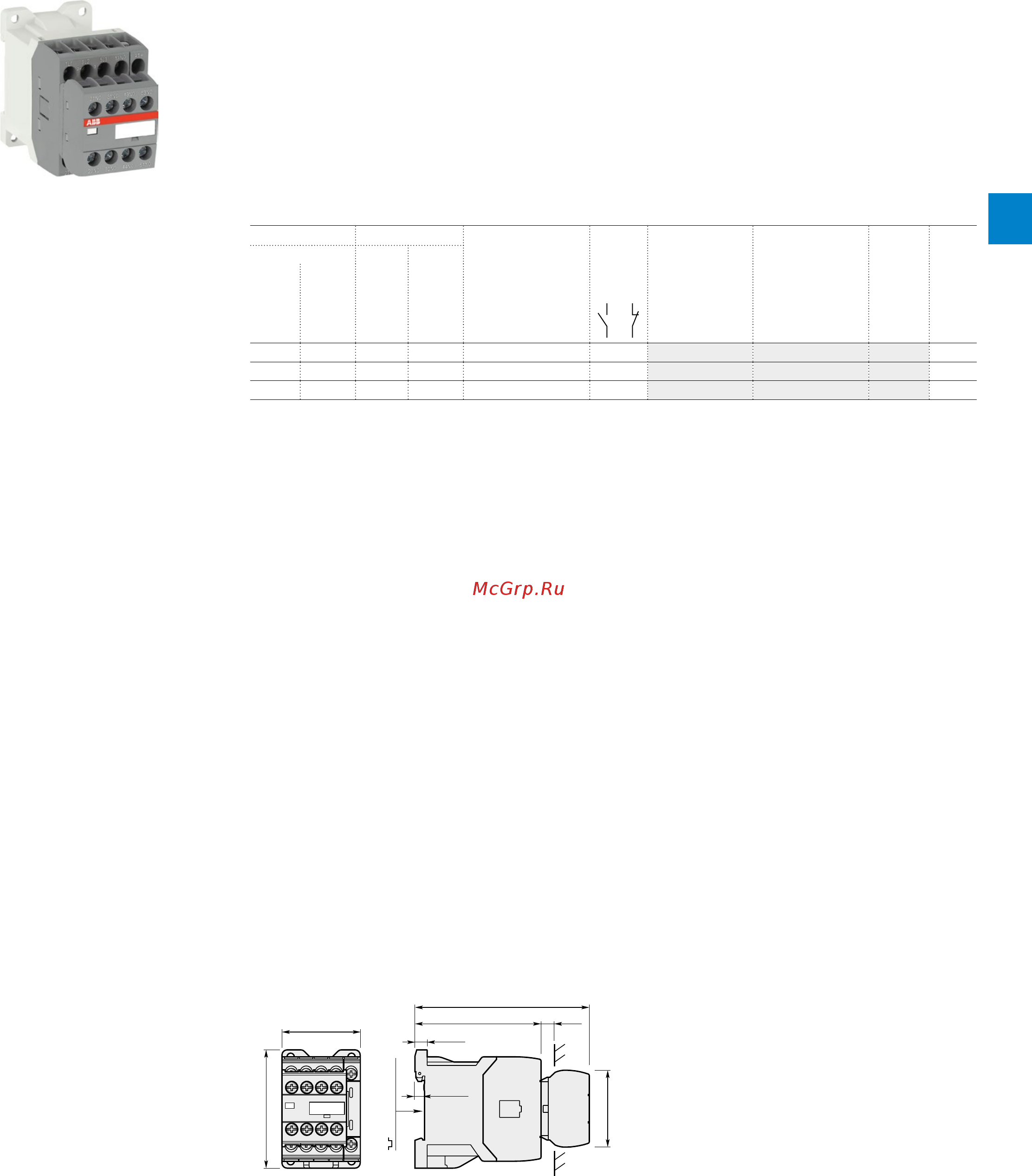

Main dimensions mm, inches

0.39"

45 1.77"

68 2.68"

72.5 2.85"

5.5 0.22"

7 0.28"

35 mm

EN/IEC 60715

100.2 3.94"

44.2 1.74"

ASL09, ASL12, ASL16

1SBC101453S0201 - Rev. A

ASL09 ... ASL16 2-stack 3-pole contactors

4 to 7.5 kW

DC operated

ABB Motor protection and control - short form catalog | 4/11
