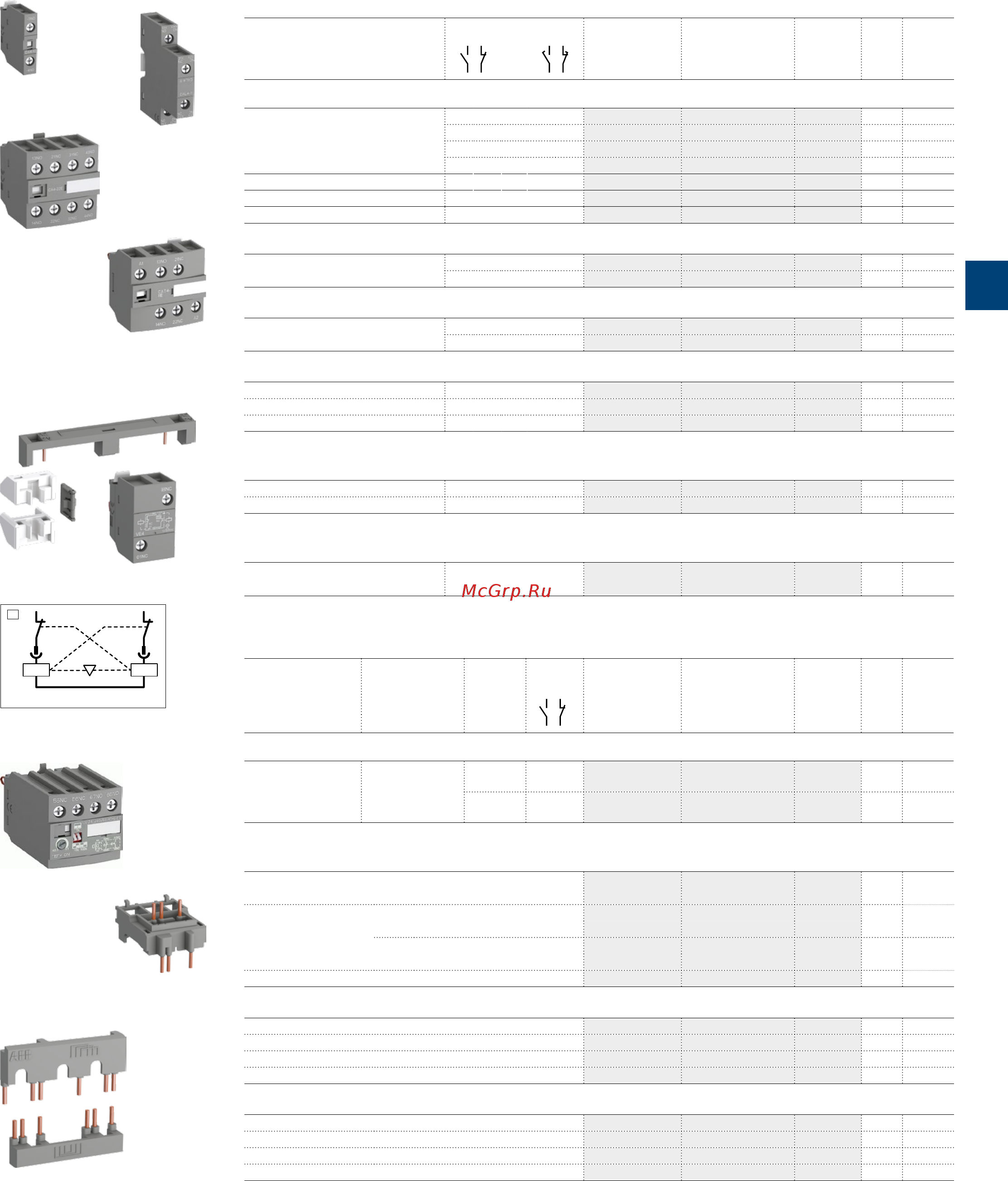

ABB ASL09-30-10-81 [115/202] Af09 af96 3 pole contactors main accessories

ABB Motor protection and control - short form catalog | 5/39

A2 A2

01NC

01 NC

VEM4

KM1 KM2

1SBC100001V0014

1SBC100007V0014

1SBC100006V0014

1SBC100002V00141SBC100014V0014

1SBC100016V0014

AF09 ... AF96 3-pole contactors

Main accessories

Ordering details (1)

For contactors Auxiliary contacts Type Order code Pkg

qty

Weight

(1 pce)

Front-mounted instantaneous auxiliary contact blocks

AF09 ... AF96 1 0 – – CA4-10 1SBN010110R1010 1 0.014

1 0 – – CA4-10-T 1SBN010110T1010 10 0.014

0 1 – – CA4-01 1SBN010110R1001 1 0.014

0 1 – – CA4-01-T 1SBN010110T1001 10 0.014

AF09 ... AF16..-30-10 2 2 – – CA4-22M 1SBN010140R1122 1 0.055

AF26 ... AF96..-30-00 2 2 – – CA4-22E 1SBN010140R1022 1 0.055

AF09 ... AF16..-30-01 2 2 – – CA4-22U 1SBN010140R1322 1 0.055

Front-mounted auxiliary contact blocks with N.O. leading contact and N.C. lagging contact

AF09 ... AF96 – – 1 0 CC4-10 1SBN010111R1010 1 0.014

– – 0 1 CC4-01 1SBN010111R1001 1 0.014

Side-mounted instantaneous auxiliary contact blocks

AF09 ... AF96 1 1 – – CAL4-11 1SBN010120R1011 1 0.040

1 1 – – CAL4-11-T 1SBN010120T1011 10 0.040

Front-mounted instantaneous auxiliary contact and A1/A2 coil terminal blocks

AF09 ... AF16..-30-10 1 1 – – CAT4-11M 1SBN010151R1111 1 0.040

AF26 ... AF65..-30-00 1 1 – – CAT4-11E 1SBN010151R1011 1 0.040

AF09 ... AF16..-30-01 1 1 – – CAT4-11U 1SBN010151R1311 1 0.040

Note: CAT4 not suitable for AF..Z contactors with DC control voltage 12...20 V DC.

Mechanical interlock unit

AF09 ... AF38 VM4 1SBN030105T1000 10 0.005

AF40 ... AF96 VM96-4 1SBN033405T1000 10 0.006

Note: VM4 and VM96-4 include 2 ﬁxing clips (BB4) to maintain together both contactors.

Mechanical and electrical interlock set

AF09 ... AF16

AF26 ... AF38

0 2 – – VEM4 1SBN030111R1000 1 0.035

Note: - VEM4 includes a VM4 mechanical interlock unit with 2 ﬁxing clips (BB4), a VE4 electrical interlock block. VE4 block must be used with A2-A2

connection to respect the electrical connection diagram.

- VEM4 not suitable for AF..Z contactors with DC control voltage 12...20 V DC.

For contactors Time delay

range

selected by

switch

Delay

type

Auxiliary

contacts

Type Order code Pkg

qty

Weight

(1 pce)

Electronic timers

AF09 ... AF96 0.1...1s

1...10s

10...100s

ON-delay 1 1 TEF4-ON 1SBN020112R1000 1 0.065

OFF-delay 1 1 TEF4-OFF 1SBN020114R1000 1 0.065

Note: Rated control circuit voltage Uc 24...240 V 50/60 Hz or DC.

Connecting links with manual motor starters

AF09 ... AF16 with MS116-0.16 … MS116-25, BEA16-4 1SBN081306T1000 10 0.025

MS132-0.16 … MS132-25

AF26 ... AF38 with MS116-0.16 … MS116-16, BEA26-4 1SBN082306T1000 10 0.025

MS132-0.16 ... MS132-10

with MS116-20 … MS116-32, BEA38-4 1SBN082306T2000 10 0.030

MS132-12 ... MS132-32

AF40 ... AF65 with MS165-16 … MS165-65 BEA65-4 1SBN083406R1000 1 0.090

Connection sets for reversing contactors

AF09 ... AF16 BER16-4 1SBN081311R1000 1 0.045

AF26 ... AF38 BER38-4 1SBN082311R1000 1 0.100

AF40 ... AF65 BER65-4 1SBN083411R1000 1 0.175

AF80 ... AF96 BER96-4 1SBN083911R1000 1 0.250

Connection sets for star-delta starting

AF09 ... AF16 With or without VM4 BEY16-4 1SBN081313R2000 1 0.050

AF26 ... AF38 With or without VM4 BEY38-4 1SBN082713R2000 1 0.110

AF40 ... AF65 With or without VM96-4 BEY65-4 1SBN083413R2000 1 0.200

AF80 ... AF96 With or without VM96-4 BEY96-4 1SBN083913R2000 1 0.250

(1) For more information, refer to main catalog "Accessories" section.

CA4-10

CA4-22E

BEA16-4

BER16-4

VEM4

CAT4-11E

CAL4-11

1SBC100004V0014

TEF4-ON

1SBC100011V0014

1SBC101749S0201 - Rev. A

Time) Time) Time)
