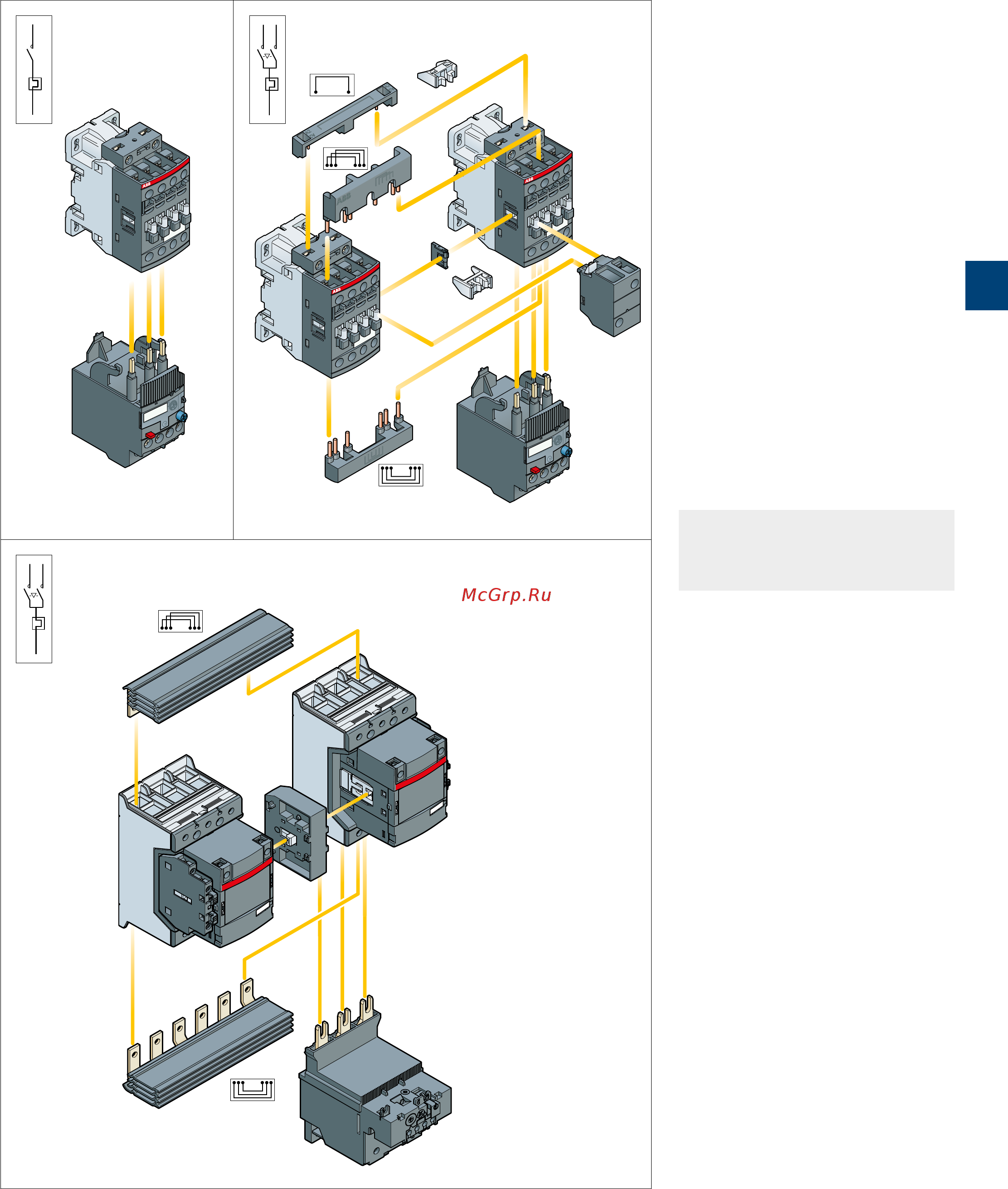

DOL and reversing starters protected by overload relays
With AF contactors - Open type version in kit form
Direct-On-Line
starters
Reversing starters for AF09 ... AF38
Reversing starters for AF116 ... AF370
Description
You can easily assemble a direct-on-line
starter by connecting AF contactor and
TF thermal overload relay or EF electronic
overload relay.
You can also easily assemble reversing
starter thanks to our complete range of
accessories:
– For AF09 ... AF38, use VEM4 me-
chanical and electrical interlock set for
reversing starter in 90mm width.
It includes:
- VM4 mechanical interlock unit includ-
ing 2 fixing clips
- VE4 electrical interlock block with
A2-A2 connection.
– For AF40 ... AF370, use VM mechani-
cal interlock unit and additional auxiliary
contact blocks for electrical interlocking.
– BER..-4 connection set: it assures a
safe and simple reversing connection
between both contactor main terminals.
Select now easily and quickly your
starter in the following pages at 400V,
up to 200kW.
BER..-4
Connection set
AF09 ... AF38
Contactors
A2
A2
VE4
Electrical
interlock
block
AF09 ... AF96
Contactor
TF
Thermal overload relay
EF
Electronic overload relay
TF42
Thermal
overload relay
EF19, EF45
Electronic
overload relay
Fixing clip
VM4
Mechanical
interlock unit
AF contactor
with built-in
cable clamps
AF contactor
with built-in
cable clamps
VM
Mechanical
interlock
unit
BER..-4
Connection set
BER..-4
Connection set
TF/TA
Thermal overload relay
EF
Electronic overload relay
For the full coordination tables:
www.abb.com/lowvoltage then go to the right
menu: "Support", select: "Online Product Selection
Tools" then select "Coordination Tables for motor
protection"
1SBC101920S0201
ABB Motor protection and control - short form catalog | 5/21
